Magnitude |
:3.2 |
| Date & Time (UTC) | 2018-10-14 21:55:22.7 |
| Date & Time (Local) | 1397/7/23 01:25:22.7 |
| Location | Lat:33.112 Lon: 57.476 |
| Region | Yazd Province, 74 km South-East of Tabas |
Nearest Cities |
|
| 20 km North West of Arababad, Yazd Province | |
| 20 km South of Dihuk, Yazd Province | |
| 63 km South East of Kerit, Yazd Province | |
| 65 km South of Arsak, Khorasan(center) Province | |
| 72 km South East of Oshtoqran, Yazd Province | |
| Depth | 14 km |
| Agency | |

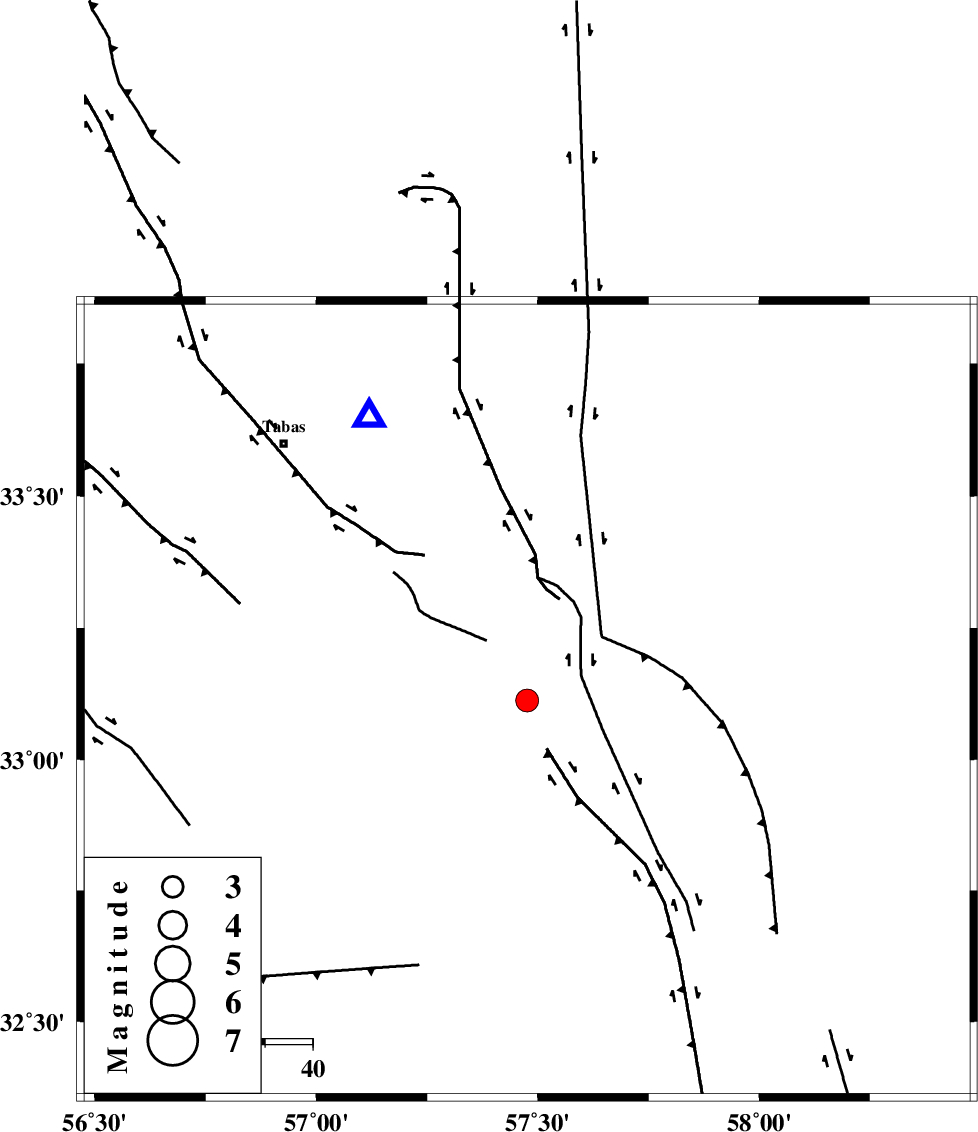

Faults within 150 km: |
|
| ESFARDIAR_F (Length: 94 km) , Distance to epicenter: 2 km | |
| TABAS_F2 (Length: 67 km) , Distance to epicenter: 13 km | |
| TABAS_F1 (Length: 91 km) , Distance to epicenter: 13 km | |
| Number of Phases | 12 |
| RMS | 0.4 |
| Number of Stations | 10 |
| Error in Latitude | >3.2 km |
| Error in Longitude | 4.1 km |
| Error in Depth | 5.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 137768 | IIEES | BSRN | E | 158 | 0.25 | 2018-10-14 21:56:23 | 2018-10-15 08:52:00 | n |
| 137769 | IIEES | BSRN | N | 132.1 | 0.2 | 2018-10-14 21:56:25 | 2018-10-15 08:52:00 | n |
| 137770 | IIEES | YZKH | N | 81.3 | 0.23 | 2018-10-14 21:56:46 | 2018-10-15 08:52:00 | n |
| 137771 | IIEES | YZKH | E | 98.8 | 0.49 | 2018-10-14 21:56:49 | 2018-10-15 08:52:00 | n |
| 137772 | IIEES | KRBR | E | 62.3 | 0.38 | 2018-10-14 21:57:08 | 2018-10-15 08:52:00 | n |
| 137773 | IIEES | KRBR | N | 56.5 | 0.52 | 2018-10-14 21:57:14 | 2018-10-15 08:52:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | TABS | Z | Pg | E | 2018-10-14 21:55:34 | -0.19 | y | 68.2 | 331 | |||
| IIEES | TABS | N | Sg | E | 2018-10-14 21:55:43 | -0.08 | y | 68.2 | 331 | |||
| IIEES | BSRN | Z | Pn | E | 2018-10-14 21:55:55 | -0.32 | y | 200 | 129 | |||
| IIEES | BSRN | N | Sg | E | 2018-10-14 21:56:19 | 0.1 | y | 200 | 129 | |||
| IIEES | SHRT | Z | Pn | E | 2018-10-14 21:56:04 | 0.46 | y | 269 | 76 | |||
| IIEES | YZKH | Z | Pn | E | 2018-10-14 21:56:05 | -0.2 | y | 282 | 254 | |||
| IIEES | SHRO | Z | Pn | E | 2018-10-14 21:56:14 | 0.32 | y | 348 | 338 | |||
| IIEES | KRBR | Z | Pn | E | 2018-10-14 21:56:15 | 0.6 | y | 353 | 191 | |||
| IIEES | NASN | Z | Pn | E | 2018-10-14 21:56:25 | 0.16 | y | 438 | 267 | |||
| IIEES | ZHSF | Z | Pn | E | 2018-10-14 21:56:31 | -0.95 | y | 499 | 140 | |||
| IIEES | BJRD | Z | Pn | E | 2018-10-14 21:56:33 | -0.12 | y | 509 | 359 | |||
| IIEES | MRVT | Z | Pn | E | 2018-10-14 21:56:35 | 0.07 | y | 520 | 346 | |||
