Magnitude |
:2.9 |
| Date & Time (UTC) | 2018-10-18 21:53:09.5 |
| Date & Time (Local) | 1397/7/27 01:23:09.5 |
| Location | Lat:34.549 Lon: 46.381 |
| Region | Kermanshah Province, 32 km South of Javanrud |
Nearest Cities |
|
| 8 km North of Zavleh olia, Kermanshah Province | |
| 16 km South of Mirabad, Kermanshah Province | |
| 17 km South of Dolatabad, Kermanshah Province | |
| 19 km North West of Kuzran, Kermanshah Province | |
| 19 km North of Gahvareh, Kermanshah Province | |
| Depth | 6 km |
| Agency | |

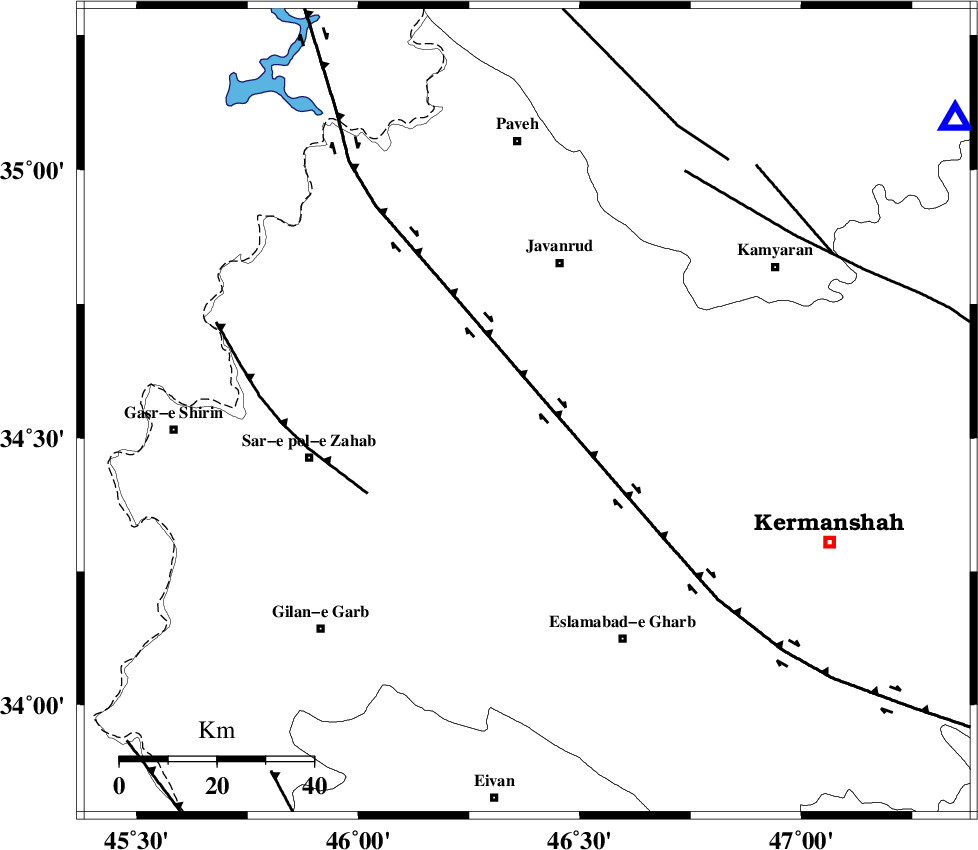

Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 4 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 37 km | |
| SARTAKHT_F (Length: 78 km) , Distance to epicenter: 60 km | |
| Number of Phases | 9 |
| RMS | 0.2 |
| Number of Stations | 7 |
| Error in Latitude | >2.5 km |
| Error in Longitude | 4.7 km |
| Error in Depth | 3.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 137893 | IIEES | ILBA | E | 343.4 | 0.54 | 2018-10-18 21:53:44 | 2018-10-20 07:31:00 | n |
| 137894 | IIEES | ILBA | N | 279.6 | 0.54 | 2018-10-18 21:53:51 | 2018-10-20 07:31:00 | n |
| 137895 | IIEES | SNGE | N | 327.6 | 0.81 | 2018-10-18 21:53:46 | 2018-10-20 07:31:00 | n |
| 137896 | IIEES | KHMZ | N | 17.6 | 0.63 | 2018-10-18 21:55:01 | 2018-10-20 07:31:00 | n |
| 137897 | IIEES | GHVR | N | 17.4 | 0.83 | 2018-10-18 21:55:26 | 2018-10-20 07:31:00 | n |
| 137898 | IIEES | GHVR | E | 11.9 | 0.68 | 2018-10-18 21:55:37 | 2018-10-20 07:31:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2018-10-18 21:53:27 | -0.22 | y | 104 | 189 | |||
| IIEES | ILBA | E | Sg | E | 2018-10-18 21:53:40 | 0.04 | y | 104 | 189 | |||
| IIEES | SNGE | Z | Pg | E | 2018-10-18 21:53:27 | -0.28 | y | 107 | 55 | |||
| IIEES | SNGE | N | Sg | E | 2018-10-18 21:53:41 | -0.05 | y | 107 | 55 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-10-18 21:53:57 | 0.06 | y | 315 | 41 | |||
| IIEES | ASAO | Z | Pn | E | 2018-10-18 21:53:59 | -0.06 | y | 335 | 89 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-10-18 21:54:01 | 0.29 | y | 342 | 104 | |||
| IIEES | GHVR | Z | Pn | E | 2018-10-18 21:54:13 | -0.05 | y | 447 | 90 | |||
| IIEES | GRMI | Z | Pn | E | 2018-10-18 21:54:19 | 0.43 | y | 492 | 16 | |||
