Magnitude |
:2.3 |
| Date & Time (UTC) | 2018-10-21 20:34:51.5 |
| Date & Time (Local) | 1397/7/30 00:04:51.5 |

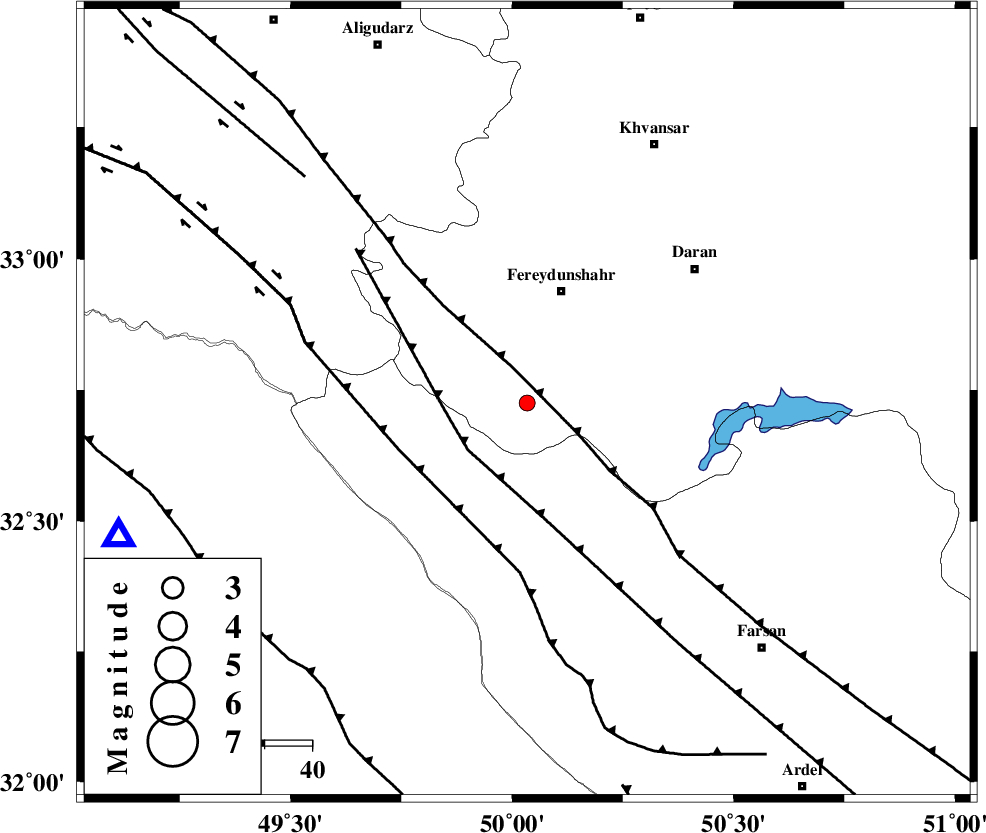

| Location | Lat:32.725 Lon: 50.034 |
| Region | Esfahan Province, 25 km South of Fereydunshahr |
Nearest Cities |
|
| 16 km North East of Durak, Chaharmahal Bakhtiari Province | |
| 18 km South of Sibak, Esfahan Province | |
| 18 km West of Ghale? sorkh, Esfahan Province | |
| 22 km South East of Masir, Esfahan Province | |
| 25 km South of Fereydunshahr, Esfahan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 8 km | |
| ARDAL_F (Length: 170 km) , Distance to epicenter: 16 km | |
| ZARDKUH_F (Length: 139 km) , Distance to epicenter: 29 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | >4.9 km |
| Error in Longitude | 5.1 km |
| Error in Depth | 6.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 137988 | IIEES | KHMZ | E | 61.5 | 0.47 | 2018-10-21 20:35:32 | 2018-10-22 07:04:00 | n |
| 137989 | IIEES | GHVR | N | 23.6 | 0.46 | 2018-10-21 20:36:00 | 2018-10-22 07:04:00 | n |
| 137990 | IIEES | GHVR | E | 21 | 0.46 | 2018-10-21 20:36:08 | 2018-10-22 07:04:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pg | E | 2018-10-21 20:35:10 | -0.12 | y | 113 | 357 | |||
| IIEES | ASAO | Z | Pn | E | 2018-10-21 20:35:24 | -0.12 | y | 202 | 360 | |||
| IIEES | ASAO | E | Sg | E | 2018-10-21 20:35:49 | 0 | y | 202 | 360 | |||
| IIEES | GHVR | Z | Pn | E | 2018-10-21 20:35:27 | 0.38 | y | 225 | 30 | |||
| IIEES | NASN | Z | Pn | E | 2018-10-21 20:35:31 | -0.06 | y | 260 | 87 | |||
| IIEES | NASN | N | Sg | E | 2018-10-21 20:36:05 | -0.02 | y | 260 | 87 | |||
| IIEES | YZKH | Z | Pn | E | 2018-10-21 20:35:52 | -0.1 | y | 430 | 94 | |||
