Magnitude |
:4.4 |
| Date & Time (UTC) | 2018-11-01 16:47:20.8 |
| Date & Time (Local) | 1397/8/10 20:17:20.8 |
| Location | Lat:31.711 Lon: 49.917 |
| Region | Khoozestan Province, 15 km South of Izeh |
Nearest Cities |
|
| 9 km North of Ghaleh tal, Khoozestan Province | |
| 15 km South of Izeh, Khoozestan Province | |
| 15 km East of Chenarestan, Khoozestan Province | |
| 19 km North of Abolabbas, Khoozestan Province | |
| 20 km South East of Rasvand, Khoozestan Province | |
| Depth | 14 km |
| Agency | |

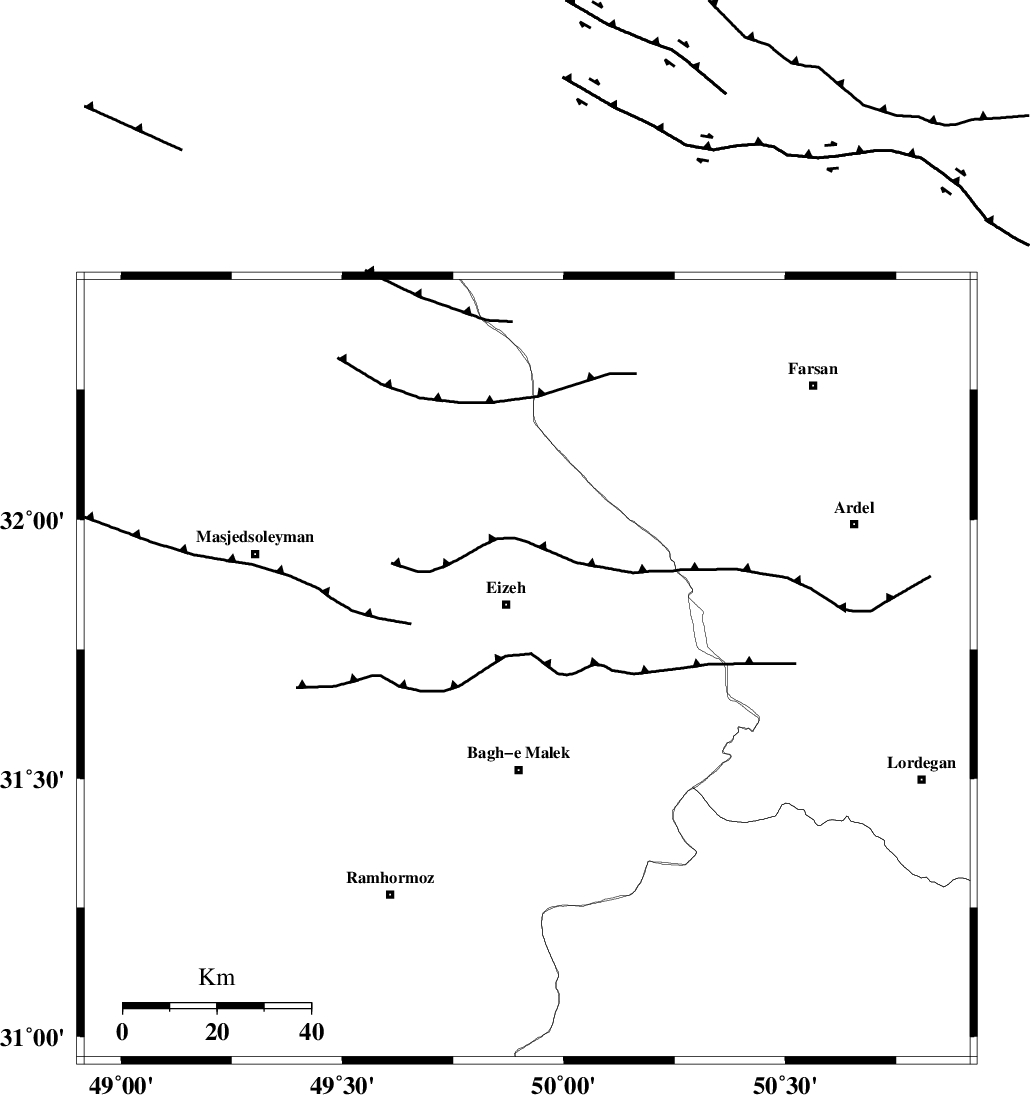

Faults within 150 km: |
|
| MFF2 (Length: 205 km) , Distance to epicenter: 5 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 31 km | |
| SABZKUH_F (Length: 67 km) , Distance to epicenter: 44 km | |
| Number of Phases | 24 |
| RMS | 0.4 |
| Number of Stations | 22 |
| Error in Latitude | >3.2 km |
| Error in Longitude | 3.5 km |
| Error in Depth | 7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 138199 | IIEES | KHMZ | E | 1451.5 | 0.69 | 2018-11-01 16:48:30 | 2018-11-03 10:30:00 | n |
| 138200 | IIEES | ASAO | N | 664.4 | 0.48 | 2018-11-01 16:49:06 | 2018-11-03 10:30:00 | n |
| 138201 | IIEES | ILBA | N | 885.1 | 0.68 | 2018-11-01 16:49:29 | 2018-11-03 10:30:00 | n |
| 138202 | IIEES | ILBA | E | 980.2 | 0.38 | 2018-11-01 16:49:34 | 2018-11-03 10:30:00 | n |
| 138203 | IIEES | SNGE | E | 242.9 | 0.42 | 2018-11-01 16:49:15 | 2018-11-03 10:30:00 | n |
| 138204 | IIEES | SNGE | N | 330.4 | 0.3 | 2018-11-01 16:49:15 | 2018-11-03 10:30:00 | n |
| 138205 | IIEES | GIDE | E | 127.2 | 0.76 | 2018-11-01 16:50:20 | 2018-11-03 10:30:00 | n |
| 138206 | IIEES | GIDE | N | 208.5 | 0.85 | 2018-11-01 16:50:23 | 2018-11-03 10:30:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pg | E | 2018-11-01 16:47:57 | -0.06 | y | 225 | 1 | |||
| IIEES | KHMZ | N | Sg | E | 2018-11-01 16:48:24 | -0.28 | y | 225 | 1 | |||
| IIEES | NASN | Z | Pn | E | 2018-11-01 16:48:05 | -0.07 | y | 298 | 65 | |||
| IIEES | NASN | N | Sg | E | 2018-11-01 16:48:45 | 0.12 | y | 298 | 65 | |||
| IIEES | ASAO | Z | Pn | E | 2018-11-01 16:48:08 | 0.37 | y | 315 | 2 | |||
| IIEES | GHVR | Z | Pn | E | 2018-11-01 16:48:10 | 0.63 | y | 331 | 22 | |||
| IIEES | AHRM | Z | Pn | E | 2018-11-01 16:48:11 | 0.74 | y | 342 | 157 | |||
| IIEES | ILBA | Z | Pn | E | 2018-11-01 16:48:18 | -0.29 | y | 407 | 302 | |||
| IIEES | SNGE | Z | Pn | E | 2018-11-01 16:48:23 | -0.12 | y | 445 | 328 | |||
| IIEES | YZKH | Z | Pn | E | 2018-11-01 16:48:24 | -0.12 | y | 448 | 79 | |||
| IIEES | THKV | Z | Pn | E | 2018-11-01 16:48:27 | 0.25 | y | 475 | 11 | |||
| IIEES | DAMV | Z | Pn | E | 2018-11-01 16:48:27 | -0.11 | y | 475 | 23 | |||
| IIEES | CHTH | Z | Pn | E | 2018-11-01 16:48:28 | -0.13 | y | 479 | 13 | |||
| IIEES | GHIR | Z | Pn | E | 2018-11-01 16:48:27 | -0.92 | y | 482 | 141 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-11-01 16:48:38 | -0.06 | y | 562 | 349 | |||
| IIEES | GIDE | Z | Pn | E | 2018-11-01 16:48:40 | 0.24 | y | 578 | 360 | |||
| IIEES | SRSL | Z | Pn | E | 2018-11-01 16:48:49 | -0.05 | y | 649 | 322 | |||
| IIEES | TABS | Z | Pn | E | 2018-11-01 16:48:56 | -0.62 | y | 709 | 70 | |||
| IIEES | SHRO | Z | Pn | E | 2018-11-01 16:49:00 | 0.1 | y | 738 | 48 | |||
| IIEES | GRMI | Z | Pn | E | 2018-11-01 16:49:09 | 0.28 | y | 809 | 347 | |||
| IIEES | MRVT | Z | Pn | E | 2018-11-01 16:49:16 | -0.13 | y | 869 | 39 | |||
| IIEES | BSRN | Z | Pn | E | 2018-11-01 16:49:16 | -0.18 | y | 872 | 86 | |||
| IIEES | BJRD | Z | Pn | E | 2018-11-01 16:49:27 | -0.09 | y | 955 | 44 | |||
| IIEES | SHRT | Z | Pn | E | 2018-11-01 16:49:32 | -0.2 | y | 996 | 75 | |||
