Magnitude |
:3.1 |
| Date & Time (UTC) | 2018-11-01 04:00:02.4 |
| Date & Time (Local) | 1397/8/10 07:30:02.4 |

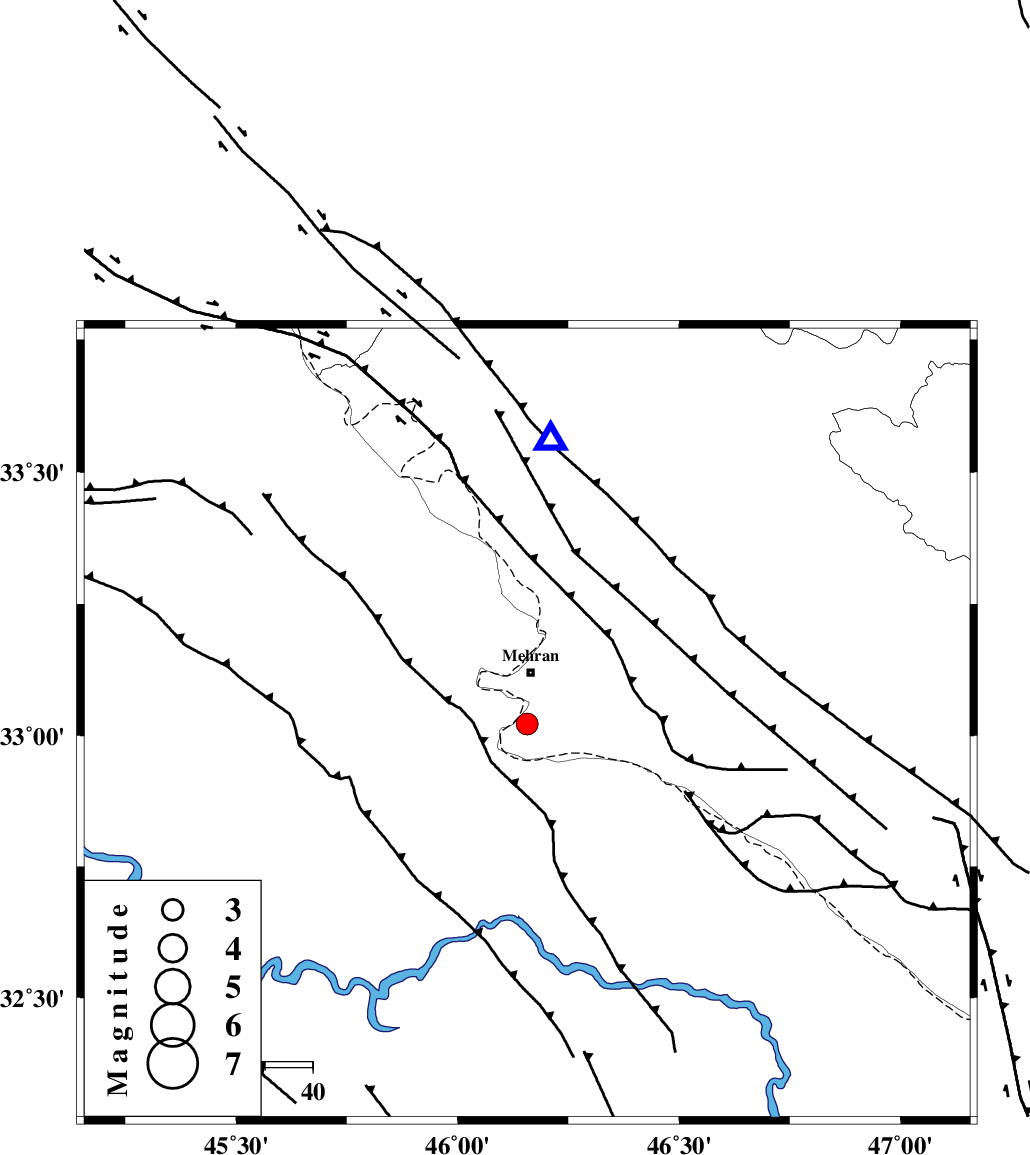

| Location | Lat:33.022 Lon: 46.157 |
| Region | Ilam Province, 11 km of Mehran |
Nearest Cities |
|
| 11 km of Mehran, Ilam Province | |
| 43 km South West of Galeh-yedarre-hemalakshahi, Ilam Province | |
| 45 km South West of Gonbad-e pirmohammad, Ilam Province | |
| 50 km South of Salehabad, Ilam Province | |
| 55 km South West of Mehr, Ilam Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 20 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 29 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 46 km | |
| Number of Phases | 6 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | >6.2 km |
| Error in Longitude | 5.2 km |
| Error in Depth | 8.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 138237 | IIEES | ILBA | E | 1012.5 | 0.78 | 2018-11-01 04:00:33 | 2018-11-04 04:17:00 | n |
| 138238 | IIEES | ILBA | N | 1003.2 | 0.61 | 2018-11-01 04:00:36 | 2018-11-04 04:17:00 | n |
| 138239 | IIEES | SNGE | E | 82.2 | 0.49 | 2018-11-01 04:01:23 | 2018-11-04 04:17:00 | n |
| 138240 | IIEES | SNGE | N | 113.2 | 0.49 | 2018-11-01 04:01:23 | 2018-11-04 04:17:00 | n |
| 138241 | IIEES | SRSL | N | 29.4 | 0.54 | 2018-11-01 04:01:55 | 2018-11-04 04:17:00 | n |
| 138242 | IIEES | SRSL | E | 37.7 | 0.54 | 2018-11-01 04:01:57 | 2018-11-04 04:17:00 | n |
| 138243 | IIEES | GHVR | E | 11 | 0.71 | 2018-11-01 04:02:17 | 2018-11-04 04:17:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2018-11-01 04:00:14 | -0.1 | y | 66.9 | 4 | |||
| IIEES | SNGE | Z | Pn | E | 2018-11-01 04:00:42 | 0.22 | y | 255 | 25 | |||
| IIEES | SNGE | N | Sg | E | 2018-11-01 04:01:14 | -0.02 | y | 255 | 25 | |||
| IIEES | SRSL | Z | Pn | E | 2018-11-01 04:00:54 | -0.04 | y | 360 | 350 | |||
| IIEES | ASAO | Z | Pn | E | 2018-11-01 04:00:59 | 0.24 | y | 396 | 64 | |||
| IIEES | GHVR | Z | Pn | E | 2018-11-01 04:01:11 | -0.4 | y | 498 | 70 | |||
