Magnitude |
:2.6 |
| Date & Time (UTC) | 2018-11-17 22:46:20.6 |
| Date & Time (Local) | 1397/8/27 02:16:20.6 |

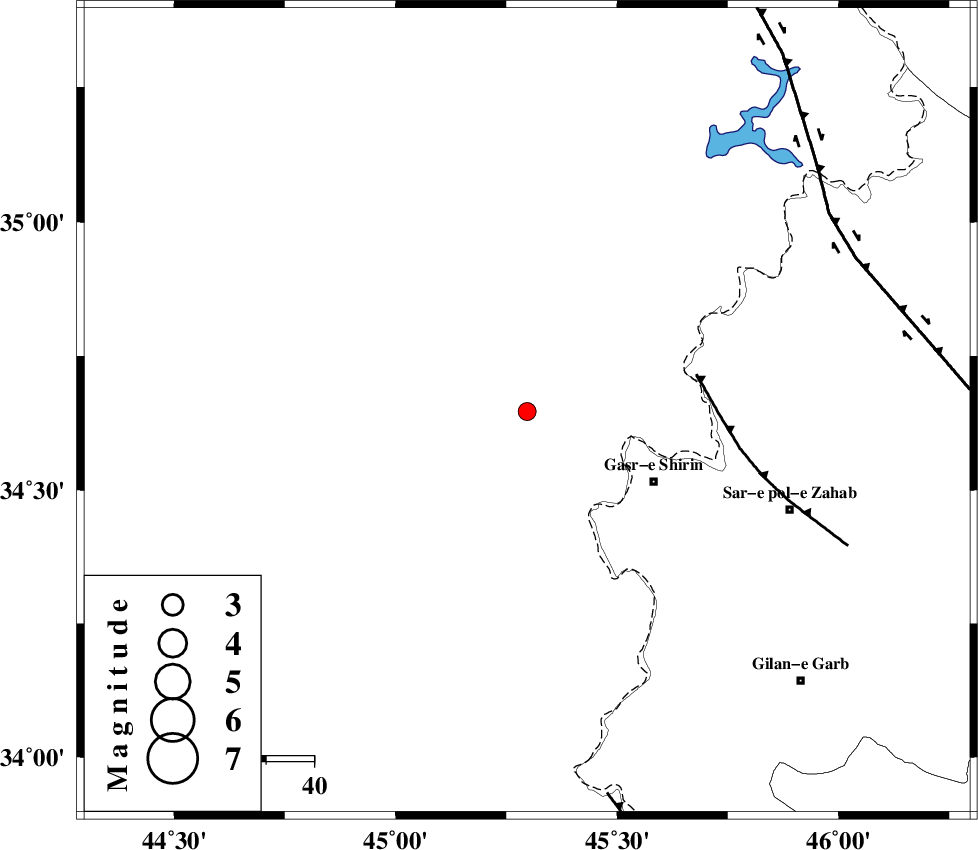

| Location | Lat:34.647 Lon: 45.297 |
| Region | Iraq, 30 km North-West of Qasr-E-Shirin |
Nearest Cities |
|
| 30 km North West of Qasr-E-Shirin, Kermanshah Province | |
| 32 km North West of Khosravi, Kermanshah Province | |
| 35 km North West of Seyyed sohrab, Kermanshah Province | |
| 36 km North West of Aqabarar, Kermanshah Province | |
| 41 km South West of Tappeh rash, Kermanshah Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 36 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 74 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 81 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | >1.7 km |
| Error in Longitude | 3.4 km |
| Error in Depth | 4.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 138468 | IIEES | ILBA | N | 136.6 | 0.49 | 2018-11-17 22:47:06 | 2018-11-18 06:51:00 | n |
| 138469 | IIEES | ILBA | E | 137.4 | 0.52 | 2018-11-17 22:47:09 | 2018-11-18 06:51:00 | n |
| 138470 | IIEES | SRSL | N | 51 | 0.71 | 2018-11-17 22:47:17 | 2018-11-18 06:51:00 | n |
| 138471 | IIEES | SNGE | N | 40.7 | 0.28 | 2018-11-17 22:47:22 | 2018-11-18 06:51:00 | n |
| 138472 | IIEES | SNGE | E | 41 | 0.4 | 2018-11-17 22:47:22 | 2018-11-18 06:51:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2018-11-17 22:46:43 | -0.28 | y | 141 | 143 | |||
| IIEES | ILBA | N | Sg | E | 2018-11-17 22:47:01 | 0.26 | y | 141 | 143 | |||
| IIEES | SRSL | Z | Pg | E | 2018-11-17 22:46:49 | 0.16 | y | 174 | 4 | |||
| IIEES | SNGE | Z | Pg | E | 2018-11-17 22:46:52 | -0.17 | y | 194 | 75 | |||
| IIEES | SNGE | N | Sg | E | 2018-11-17 22:47:16 | 0.03 | y | 194 | 75 | |||
| IIEES | ASAO | Z | Pn | E | 2018-11-17 22:47:22 | 0.09 | y | 434 | 90 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-11-17 22:47:23 | -0.09 | y | 442 | 102 | |||
