Magnitude |
:2.9 |
| Date & Time (UTC) | 2018-11-21 00:19:13.3 |
| Date & Time (Local) | 1397/8/30 03:49:13.3 |

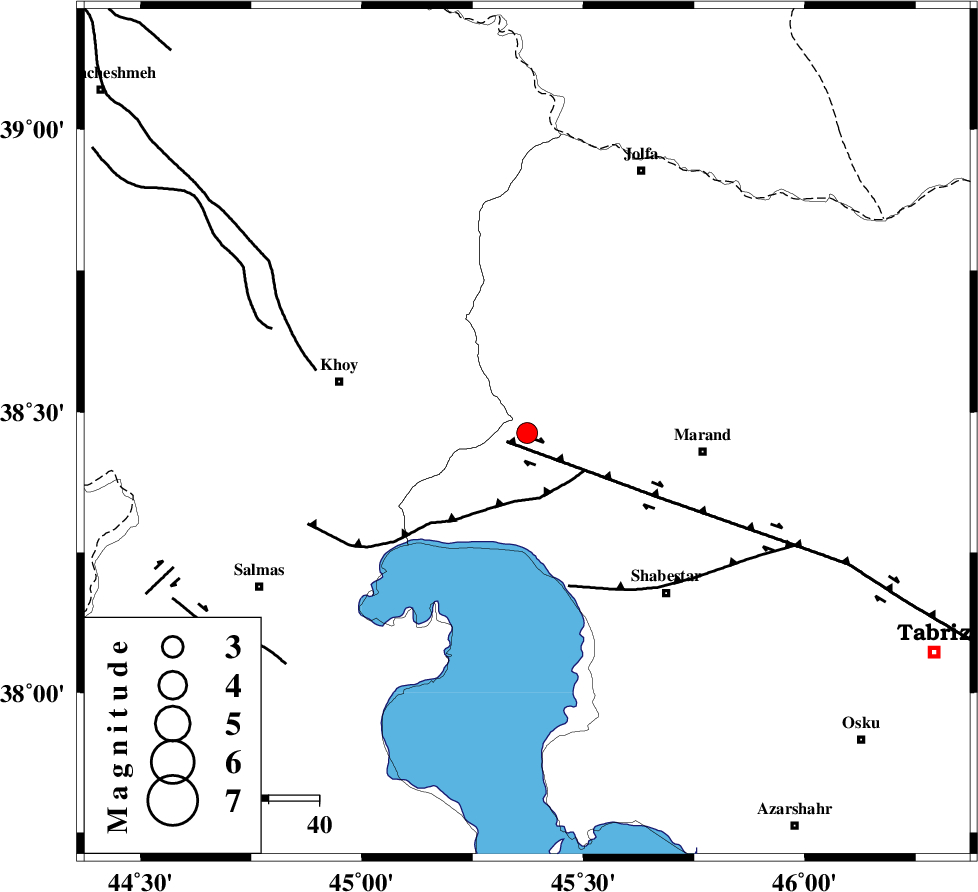

| Location | Lat:38.462 Lon: 45.373 |
| Region | Azarbaijan Sharghi Province, 35 km -West of Marand |
Nearest Cities |
|
| 15 km North of Jahregan, Azarbaijan Sharghi Province | |
| 17 km West of Kashksaray, Azarbaijan Sharghi Province | |
| 17 km North of Tasuj, Azarbaijan Sharghi Province | |
| 23 km South of Yekan kahriz, Azarbaijan Sharghi Province | |
| 24 km West of Yamchi, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 4 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 13 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 31 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >2.5 km |
| Error in Longitude | 1.6 km |
| Error in Depth | 5.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 138528 | IIEES | MAKU | N | 324.5 | 0.35 | 2018-11-21 00:19:48 | 2018-11-21 08:50:00 | n |
| 138529 | IIEES | MAKU | E | 366.6 | 0.46 | 2018-11-21 00:19:50 | 2018-11-21 08:50:00 | n |
| 138530 | IIEES | GRMI | N | 59.1 | 0.13 | 2018-11-21 00:20:22 | 2018-11-21 08:50:00 | n |
| 138531 | IIEES | GRMI | E | 78.9 | 0.63 | 2018-11-21 00:20:23 | 2018-11-21 08:50:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | MAKU | Z | Pg | E | 2018-11-21 00:19:32 | -0.11 | y | 116 | 329 | |||
| IIEES | MAKU | N | Sg | E | 2018-11-21 00:19:47 | 0.06 | y | 116 | 329 | |||
| IIEES | GRMI | Z | Pn | E | 2018-11-21 00:19:48 | 0.09 | y | 223 | 79 | |||
| IIEES | GRMI | N | Sg | E | 2018-11-21 00:20:16 | -0.01 | y | 223 | 79 | |||
| IIEES | SRSL | Z | Pn | E | 2018-11-21 00:19:52 | 0.06 | y | 250 | 179 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-11-21 00:20:05 | -0.12 | y | 354 | 123 | |||
