Magnitude |
:2.9 |
| Date & Time (UTC) | 2018-11-21 05:37:55.8 |
| Date & Time (Local) | 1397/8/30 09:07:55.8 |

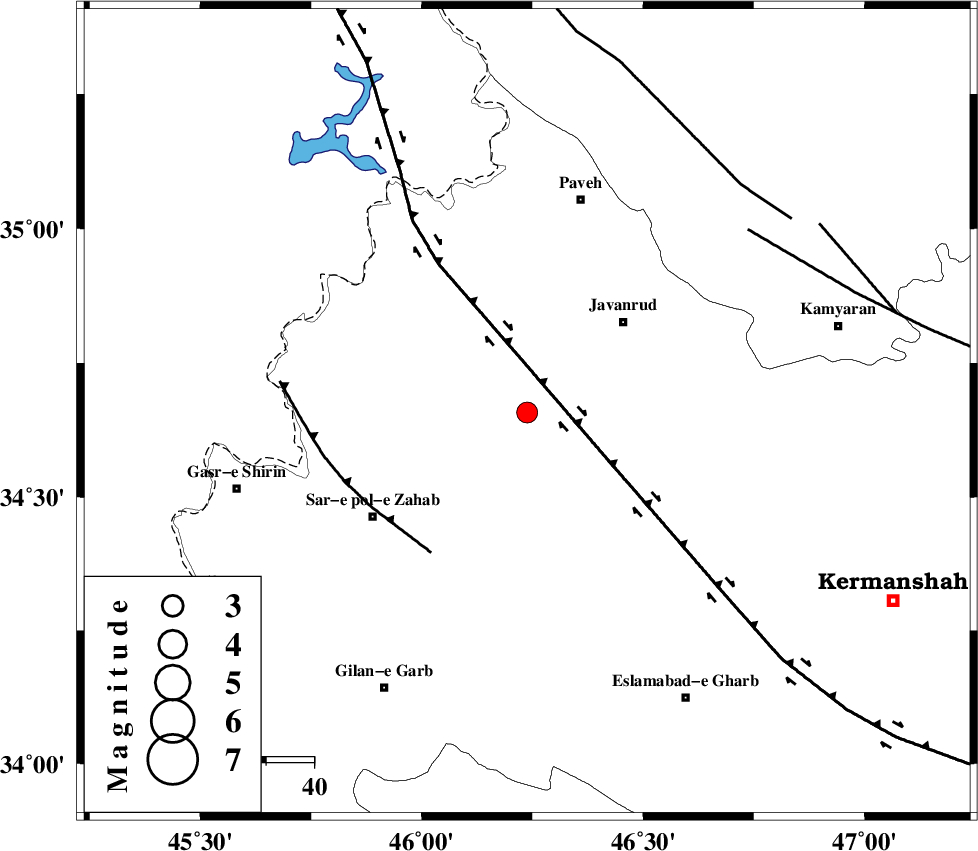

| Location | Lat:34.658 Lon: 46.238 |
| Region | Kermanshah Province, 27 km South-West of Javanrud |
Nearest Cities |
|
| 7 km of Mirabad, Kermanshah Province | |
| 10 km of Qolqoleh, Kermanshah Province | |
| 19 km North of Zavleh olia, Kermanshah Province | |
| 21 km South of Shervineh, Kermanshah Province | |
| 21 km West of Dolatabad, Kermanshah Province | |
| Depth | 6 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 10 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 35 km | |
| SARTAKHT_F (Length: 78 km) , Distance to epicenter: 59 km | |
| Number of Phases | 9 |
| RMS | 0.2 |
| Number of Stations | 7 |
| Error in Latitude | >1.7 km |
| Error in Longitude | 3 km |
| Error in Depth | 3.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 138552 | IIEES | SNGE | N | 239.1 | 0.55 | 2018-11-21 05:38:33 | 2018-11-21 08:50:00 | n |
| 138553 | IIEES | SNGE | E | 199.9 | 0.41 | 2018-11-21 05:38:35 | 2018-11-21 08:50:00 | n |
| 138554 | IIEES | ILBA | E | 334.3 | 0.37 | 2018-11-21 05:38:37 | 2018-11-21 08:50:00 | n |
| 138555 | IIEES | ILBA | N | 311.9 | 0.37 | 2018-11-21 05:38:42 | 2018-11-21 08:50:00 | n |
| 138556 | IIEES | SRSL | E | 217.7 | 0.52 | 2018-11-21 05:38:57 | 2018-11-21 08:50:00 | n |
| 138557 | IIEES | SRSL | N | 241.5 | 0.46 | 2018-11-21 05:39:00 | 2018-11-21 08:50:00 | n |
| 138558 | IIEES | ASAO | E | 15.9 | 0.5 | 2018-11-21 05:39:44 | 2018-11-21 08:50:00 | n |
| 138559 | IIEES | ASAO | N | 20.1 | 0.75 | 2018-11-21 05:39:45 | 2018-11-21 08:50:00 | n |
| 138560 | IIEES | KHMZ | E | 21.8 | 0.49 | 2018-11-21 05:39:51 | 2018-11-21 08:50:00 | n |
| 138561 | IIEES | KHMZ | N | 13.1 | 0.6 | 2018-11-21 05:39:53 | 2018-11-21 08:50:00 | n |
| 138562 | IIEES | GHVR | E | 13 | 0.74 | 2018-11-21 05:40:20 | 2018-11-21 08:50:00 | n |
| 138563 | IIEES | GHVR | N | 10.2 | 0.46 | 2018-11-21 05:40:24 | 2018-11-21 08:50:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SNGE | Z | Pg | E | 2018-11-21 05:38:15 | -0.26 | y | 112 | 64 | |||
| IIEES | SNGE | N | Sg | E | 2018-11-21 05:38:29 | -0.04 | y | 112 | 64 | |||
| IIEES | ILBA | Z | Pg | E | 2018-11-21 05:38:15 | 0.17 | y | 115 | 181 | |||
| IIEES | ILBA | E | Sg | E | 2018-11-21 05:38:30 | -0.13 | y | 115 | 181 | |||
| IIEES | SRSL | Z | Pg | E | 2018-11-21 05:38:27 | -0.16 | y | 187 | 337 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-11-21 05:38:44 | 0.43 | y | 315 | 44 | |||
| IIEES | ASAO | Z | Pn | E | 2018-11-21 05:38:47 | -0.08 | y | 348 | 91 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-11-21 05:38:48 | -0.19 | y | 358 | 105 | |||
| IIEES | GHVR | Z | Pn | E | 2018-11-21 05:39:02 | 0.37 | y | 460 | 91 | |||
