Magnitude |
:3.4 |
| Date & Time (UTC) | 2018-11-23 13:03:30.0 |
| Date & Time (Local) | 1397/9/2 16:33:30.0 |
| Location | Lat:34.651 Lon: 45.467 |
| Region | Iraq, 18 km North-West of Qasr-E-Shirin |
Nearest Cities |
|
| 18 km North West of Qasr-E-Shirin, Kermanshah Province | |
| 22 km North West of Aqabarar, Kermanshah Province | |
| 26 km North West of Seyyed sohrab, Kermanshah Province | |
| 26 km South West of Tappeh rash, Kermanshah Province | |
| 28 km North of Khosravi, Kermanshah Province | |
| Depth | 15 km |
| Agency | |

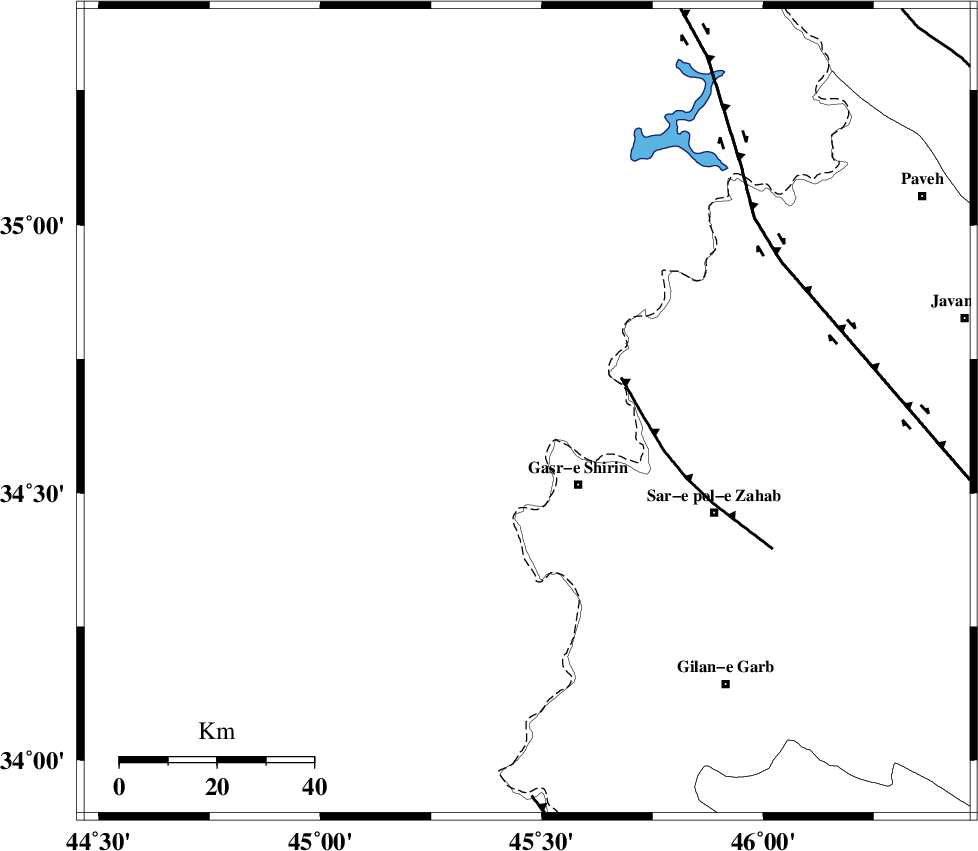

Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 21 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 61 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 80 km | |
| Number of Phases | 11 |
| RMS | 0.4 |
| Number of Stations | 9 |
| Error in Latitude | >2.9 km |
| Error in Longitude | 5.9 km |
| Error in Depth | 6.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 138568 | IIEES | ILBA | N | 545.2 | 0.45 | 2018-11-23 13:04:14 | 2018-11-24 12:12:00 | n |
| 138569 | IIEES | SNGE | E | 580.7 | 0.55 | 2018-11-23 13:04:24 | 2018-11-24 12:12:00 | n |
| 138570 | IIEES | SNGE | N | 380.4 | 0.38 | 2018-11-23 13:04:25 | 2018-11-24 12:12:00 | n |
| 138571 | IIEES | KHMZ | N | 25.8 | 0.41 | 2018-11-23 13:05:44 | 2018-11-24 12:12:00 | n |
| 138572 | IIEES | GHVR | N | 24.5 | 0.62 | 2018-11-23 13:06:07 | 2018-11-24 12:12:00 | n |
| 138573 | IIEES | GHVR | E | 19.7 | 0.75 | 2018-11-23 13:06:12 | 2018-11-24 12:12:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2018-11-23 13:03:51 | -0.54 | y | 133 | 149 | |||
| IIEES | ILBA | N | Sg | E | 2018-11-23 13:04:08 | 0.56 | y | 133 | 149 | |||
| IIEES | SRSL | Z | Pg | E | 2018-11-23 13:03:59 | 0.3 | y | 173 | 359 | |||
| IIEES | SNGE | Z | Pg | E | 2018-11-23 13:03:59 | -0.5 | y | 179 | 74 | |||
| IIEES | SNGE | N | Sg | E | 2018-11-23 13:04:21 | 0.17 | y | 179 | 74 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-11-23 13:04:23 | -0.14 | y | 368 | 52 | |||
| IIEES | ASAO | Z | Pn | E | 2018-11-23 13:04:30 | 0.31 | y | 418 | 90 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-11-23 13:04:30 | -0.55 | y | 427 | 102 | |||
| IIEES | GRMI | Z | Pn | E | 2018-11-23 13:04:41 | 0.17 | y | 510 | 24 | |||
| IIEES | GHVR | Z | Pn | E | 2018-11-23 13:04:43 | -0.08 | y | 531 | 90 | |||
| IIEES | DAMV | Z | Pn | E | 2018-11-23 13:04:53 | 0.44 | y | 603 | 78 | |||
