Magnitude |
:4.3 |
| Date & Time (UTC) | 2018-11-29 13:16:22.9 |
| Date & Time (Local) | 1397/9/8 16:46:22.9 |

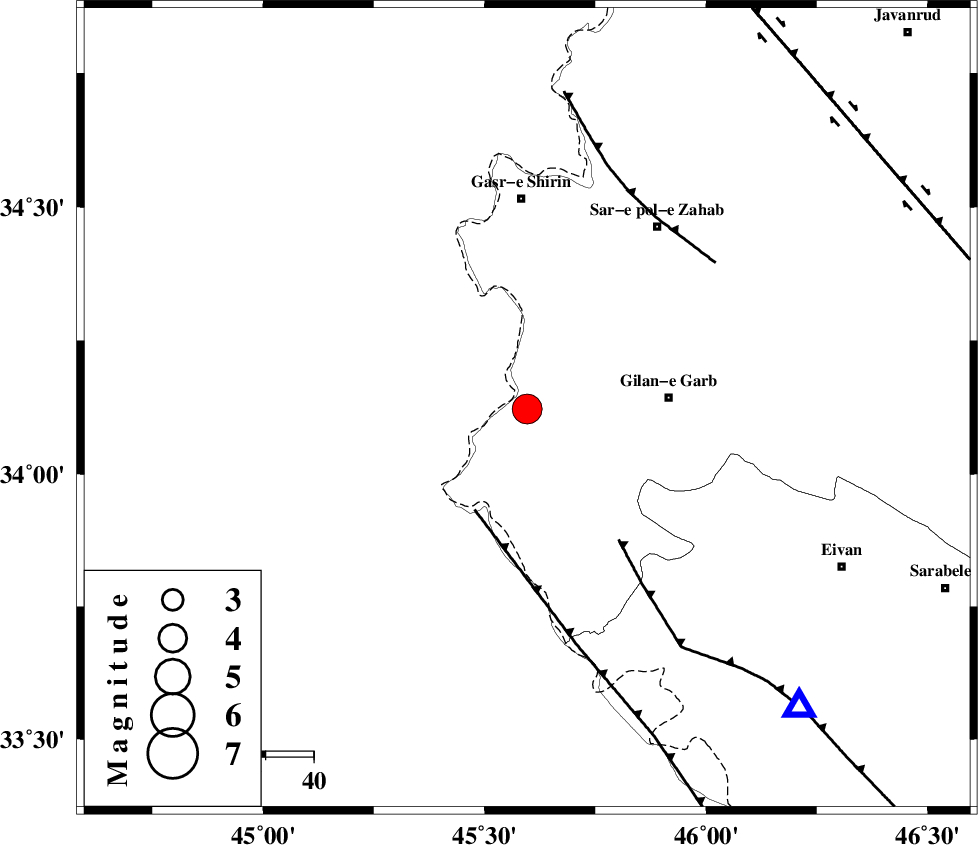

| Location | Lat:34.122 Lon: 45.596 |
| Region | Kermanshah Province, 29 km -West of Gilan-E-Gharb |
Nearest Cities |
|
| 27 km North of Sumar, Kermanshah Province | |
| 29 km West of Gilan-E-Gharb, Kermanshah Province | |
| 32 km South West of Chub baghan, Kermanshah Province | |
| 33 km South East of Khosravi, Kermanshah Province | |
| 35 km North West of Nian, Kermanshah Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 24 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 33 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 48 km | |
| Number of Phases | 16 |
| RMS | 0.7 |
| Number of Stations | 14 |
| Error in Latitude | >5.6 km |
| Error in Longitude | 9.5 km |
| Error in Depth | 9.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 138837 | IIEES | SNGE | N | 4585.4 | 0.82 | 2018-11-29 13:17:21 | 2018-12-01 12:04:00 | n |
| 138838 | IIEES | SNGE | E | 2430.6 | 0.76 | 2018-11-29 13:17:25 | 2018-12-01 12:04:00 | n |
| 138839 | IIEES | SRSL | E | 4256.5 | 0.54 | 2018-11-29 13:17:30 | 2018-12-01 12:04:00 | n |
| 138840 | IIEES | SRSL | N | 4013.8 | 0.48 | 2018-11-29 13:17:30 | 2018-12-01 12:04:00 | n |
| 138841 | IIEES | GIDE | N | 125.8 | 0.61 | 2018-11-29 13:18:50 | 2018-12-01 12:04:00 | n |
| 138842 | IIEES | GIDE | E | 138.2 | 0.49 | 2018-11-29 13:19:06 | 2018-12-01 12:04:00 | n |
| 138843 | IIEES | GHVR | E | 93.7 | 0.45 | 2018-11-29 13:18:33 | 2018-12-01 12:04:00 | n |
| 138844 | IIEES | GHVR | N | 81 | 0.36 | 2018-11-29 13:18:44 | 2018-12-01 12:04:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2018-11-29 13:16:37 | 0.47 | y | 79.1 | 134 | |||
| IIEES | SNGE | Z | Pg | E | 2018-11-29 13:16:54 | -0.21 | y | 193 | 56 | |||
| IIEES | SNGE | N | Sg | E | 2018-11-29 13:17:18 | 0.31 | y | 193 | 56 | |||
| IIEES | SRSL | Z | Pn | E | 2018-11-29 13:16:59 | 0.44 | y | 232 | 356 | |||
| IIEES | SRSL | N | Sg | E | 2018-11-29 13:17:28 | -0.61 | y | 232 | 356 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-11-29 13:17:19 | -0.01 | y | 398 | 44 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-11-29 13:17:20 | -0.49 | y | 406 | 95 | |||
| IIEES | ASAO | Z | Pn | E | 2018-11-29 13:17:21 | 0.37 | y | 410 | 82 | |||
| IIEES | GIDE | Z | Pn | E | 2018-11-29 13:17:33 | 1.28 | y | 500 | 50 | |||
| IIEES | THKV | Z | Pn | E | 2018-11-29 13:17:36 | 0.84 | y | 522 | 66 | |||
| IIEES | GHVR | Z | Pn | E | 2018-11-29 13:17:34 | -1.05 | y | 522 | 84 | |||
| IIEES | CHTH | Z | Pn | E | 2018-11-29 13:17:37 | -0.22 | y | 542 | 67 | |||
| IIEES | GRMI | Z | Pn | E | 2018-11-29 13:17:39 | 0.02 | y | 559 | 21 | |||
| IIEES | MAKU | Z | Pn | E | 2018-11-29 13:17:43 | 0.32 | y | 586 | 352 | |||
| IIEES | NASN | Z | Pn | E | 2018-11-29 13:17:54 | -0.96 | y | 686 | 100 | |||
| IIEES | YZKH | Z | Pn | E | 2018-11-29 13:18:15 | -2.08 | y | 860 | 100 | |||
