Magnitude |
:3.9 |
| Date & Time (UTC) | 2018-11-30 06:46:34.8 |
| Date & Time (Local) | 1397/9/9 10:16:34.8 |

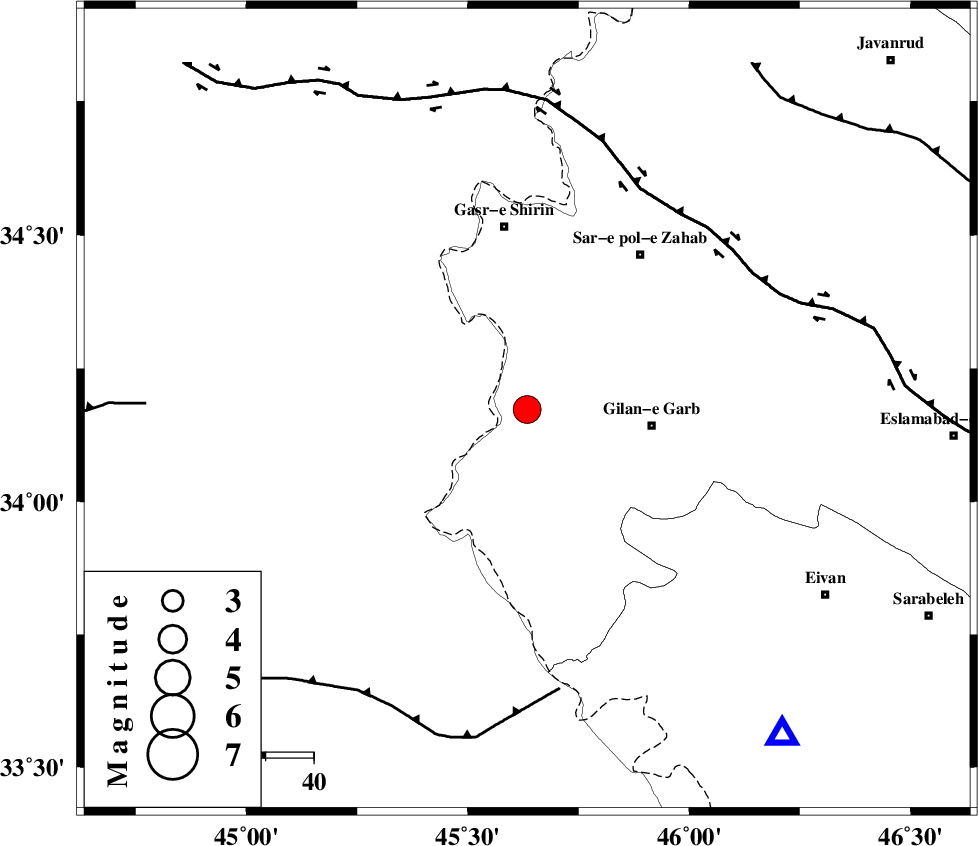

| Location | Lat:34.173 Lon: 45.634 |
| Region | Kermanshah Province, 26 km -West of Gilan-E-Gharb |
Nearest Cities |
|
| 26 km South West of Chub baghan, Kermanshah Province | |
| 26 km North West of Gilan-E-Gharb, Kermanshah Province | |
| 29 km South East of Khosravi, Kermanshah Province | |
| 30 km South of Seyyed sohrab, Kermanshah Province | |
| 33 km North of Sumar, Kermanshah Province | |
| Depth | 16 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 30 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 37 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 41 km | |
| Number of Phases | 15 |
| RMS | 0.4 |
| Number of Stations | 13 |
| Error in Latitude | >3.4 km |
| Error in Longitude | 5.5 km |
| Error in Depth | 6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 138849 | IIEES | SNGE | N | 1502.9 | 0.67 | 2018-11-30 06:47:33 | 2018-12-01 12:04:00 | n |
| 138850 | IIEES | SNGE | E | 1167.3 | 0.61 | 2018-11-30 06:47:34 | 2018-12-01 12:04:00 | n |
| 138851 | IIEES | SRSL | E | 795.9 | 0.32 | 2018-11-30 06:47:42 | 2018-12-01 12:04:00 | n |
| 138852 | IIEES | SRSL | N | 891 | 0.43 | 2018-11-30 06:47:45 | 2018-12-01 12:04:00 | n |
| 138853 | IIEES | GIDE | E | 56.3 | 0.9 | 2018-11-30 06:49:11 | 2018-12-01 12:04:00 | n |
| 138854 | IIEES | GHVR | E | 52.7 | 0.51 | 2018-11-30 06:48:45 | 2018-12-01 12:04:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2018-11-30 06:46:48 | 0.06 | y | 80.7 | 139 | |||
| IIEES | SNGE | Z | Pg | E | 2018-11-30 06:47:05 | 0.03 | y | 187 | 57 | |||
| IIEES | SNGE | N | Sg | E | 2018-11-30 06:47:28 | 0.33 | y | 187 | 57 | |||
| IIEES | SRSL | Z | Pn | E | 2018-11-30 06:47:10 | 0.34 | y | 227 | 355 | |||
| IIEES | SRSL | N | Sg | E | 2018-11-30 06:47:38 | -0.41 | y | 227 | 355 | |||
| IIEES | ZNJK | Z | Pn | E | 2018-11-30 06:47:31 | 0.22 | y | 392 | 44 | |||
| IIEES | KHMZ | Z | Pn | E | 2018-11-30 06:47:31 | -0.59 | y | 403 | 96 | |||
| IIEES | ASAO | Z | Pn | E | 2018-11-30 06:47:33 | 0.64 | y | 406 | 83 | |||
| IIEES | GIDE | Z | Pn | E | 2018-11-30 06:47:42 | -0.74 | y | 493 | 51 | |||
| IIEES | THKV | Z | Pn | E | 2018-11-30 06:47:46 | -0.18 | y | 516 | 67 | |||
| IIEES | GHVR | Z | Pn | E | 2018-11-30 06:47:46 | -0.34 | y | 517 | 85 | |||
| IIEES | CHTH | Z | Pn | E | 2018-11-30 06:47:49 | -0.12 | y | 537 | 67 | |||
| IIEES | GRMI | Z | Pn | E | 2018-11-30 06:47:51 | 0.02 | y | 553 | 21 | |||
| IIEES | MAKU | Z | Pn | E | 2018-11-30 06:47:55 | 0.69 | y | 581 | 352 | |||
| IIEES | DAMV | Z | Pn | E | 2018-11-30 06:47:57 | -0.11 | y | 601 | 73 | |||
