Magnitude |
:3.5 |
| Date & Time (UTC) | 2018-12-02 23:30:06.8 |
| Date & Time (Local) | 1397/9/12 03:00:06.8 |

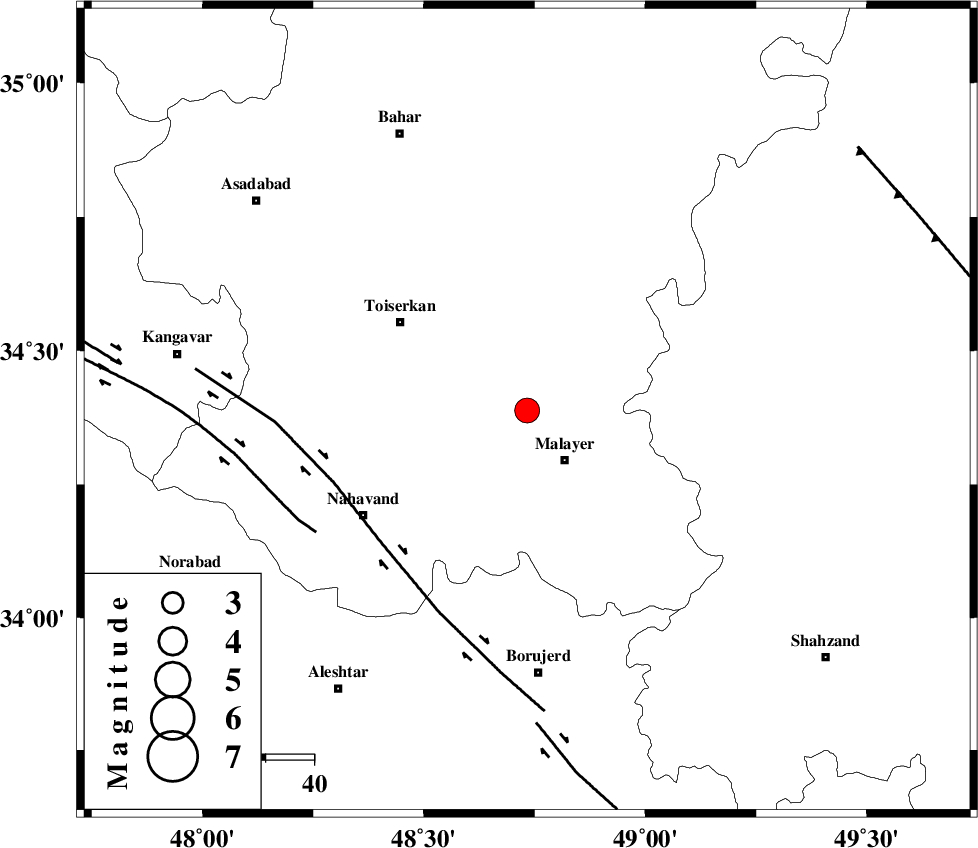

| Location | Lat:34.388 Lon: 48.733 |
| Region | Hamedan Province, 13 km of Malayer |
Nearest Cities |
|
| 7 km North of Mehrabad, Hamedan Province | |
| 8 km of Jokar, Hamedan Province | |
| 13 km North of Malayer, Hamedan Province | |
| 16 km North West of Aznav, Hamedan Province | |
| 16 km North East of Hoseynabad-e nazem, Hamedan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| NAHAVAND_F (Length: 102 km) , Distance to epicenter: 41 km | |
| SAHANEH_F (Length: 77 km) , Distance to epicenter: 51 km | |
| DORUD (Length: 100 km) , Distance to epicenter: 65 km | |
| Number of Phases | 13 |
| RMS | 0.3 |
| Number of Stations | 11 |
| Error in Latitude | >4.1 km |
| Error in Longitude | 2.8 km |
| Error in Depth | 5.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 138902 | IIEES | KHMZ | N | 561 | 0.38 | 2018-12-02 23:30:46 | 2018-12-03 08:55:00 | n |
| 138903 | IIEES | KHMZ | E | 817.2 | 0.51 | 2018-12-02 23:30:49 | 2018-12-03 08:55:00 | n |
| 138904 | IIEES | SNGE | N | 1380.5 | 0.27 | 2018-12-02 23:30:51 | 2018-12-03 08:55:00 | n |
| 138905 | IIEES | SNGE | E | 790.1 | 0.19 | 2018-12-02 23:30:52 | 2018-12-03 08:55:00 | n |
| 138906 | IIEES | GHVR | N | 294.8 | 0.33 | 2018-12-02 23:31:18 | 2018-12-03 08:55:00 | n |
| 138907 | IIEES | GHVR | E | 310.8 | 0.38 | 2018-12-02 23:31:20 | 2018-12-03 08:55:00 | n |
| 138908 | IIEES | ILBA | E | 159.3 | 0.59 | 2018-12-02 23:31:25 | 2018-12-03 08:55:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ASAO | Z | Pg | E | 2018-12-02 23:30:26 | -0.27 | y | 120 | 81 | |||
| IIEES | KHMZ | Z | Pg | E | 2018-12-02 23:30:29 | 0.06 | y | 134 | 122 | |||
| IIEES | SNGE | Z | Pg | E | 2018-12-02 23:30:31 | -0.1 | y | 149 | 302 | |||
| IIEES | SNGE | N | Sg | E | 2018-12-02 23:30:49 | -0.34 | y | 149 | 302 | |||
| IIEES | GHVR | Z | Pn | E | 2018-12-02 23:30:42 | -0.5 | y | 231 | 87 | |||
| IIEES | ILBA | Z | Pn | E | 2018-12-02 23:30:47 | 2.16 | n | 4 | 248 | 251 | ||
| IIEES | ZNJK | Z | Pn | E | 2018-12-02 23:30:46 | 0.51 | y | 253 | 359 | |||
| IIEES | THKV | Z | Pn | E | 2018-12-02 23:30:47 | 0.25 | y | 259 | 48 | |||
| IIEES | THKV | N | Sg | E | 2018-12-02 23:31:19 | -0.44 | y | 259 | 48 | |||
| IIEES | CHTH | Z | Pn | E | 2018-12-02 23:30:49 | 0.25 | y | 276 | 52 | |||
| IIEES | GIDE | Z | Pn | E | 2018-12-02 23:30:52 | 0.4 | y | 301 | 20 | |||
| IIEES | DAMV | Z | Pn | E | 2018-12-02 23:30:55 | 0.31 | y | 326 | 64 | |||
| IIEES | GRMI | Z | Pn | E | 2018-12-02 23:31:16 | -0.07 | y | 496 | 352 | |||
