Magnitude |
:4.6 |
| Date & Time (UTC) | 2019-01-14 18:17:59.3 |
| Date & Time (Local) | 1397/10/24 21:47:59.3 |

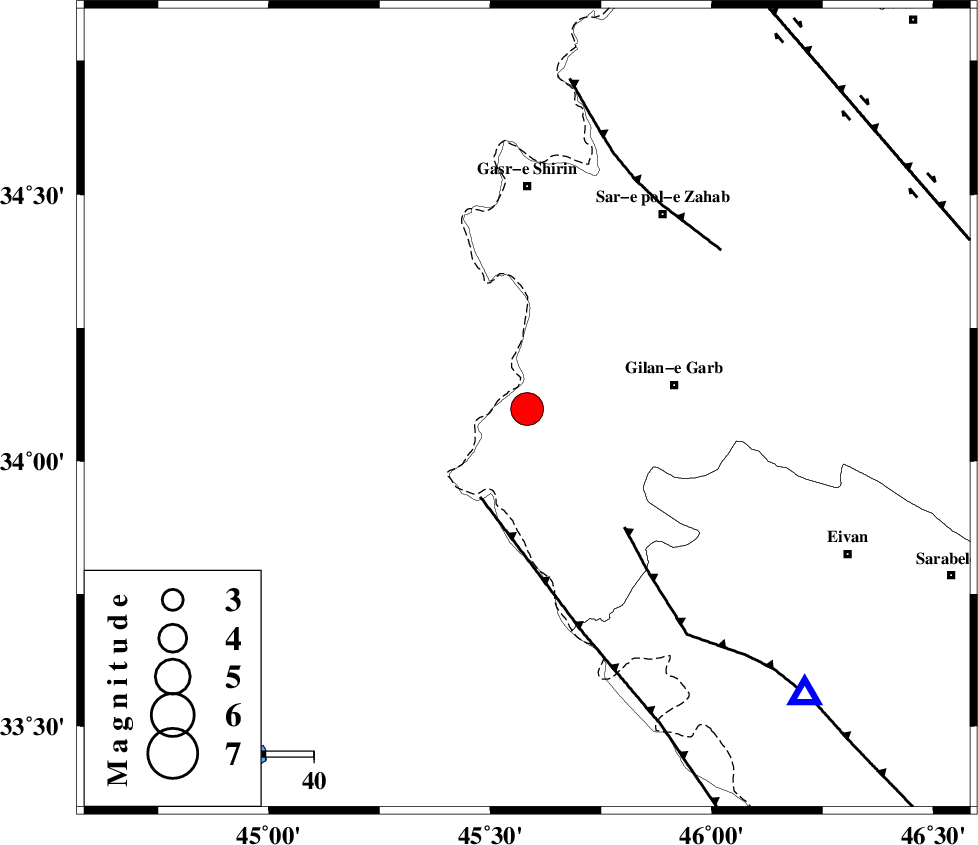

| Location | Lat:34.098 Lon: 45.583 |
| Region | Kermanshah Province, 31 km -West of Gilan-E-Gharb |
Nearest Cities |
|
| 25 km North of Sumar, Kermanshah Province | |
| 31 km West of Gilan-E-Gharb, Kermanshah Province | |
| 35 km South West of Chub baghan, Kermanshah Province | |
| 35 km North West of Nian, Kermanshah Province | |
| 35 km South East of Khosravi, Kermanshah Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 21 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 32 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 51 km | |
| Number of Phases | 19 |
| RMS | 0.5 |
| Number of Stations | 17 |
| Error in Latitude | >3.6 km |
| Error in Longitude | 6.2 km |
| Error in Depth | 6.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 140152 | IIEES | SNGE | N | 3824.4 | 0.3 | 2019-01-14 18:18:59 | 2019-01-15 04:57:00 | n |
| 140153 | IIEES | SRSL | N | 5917.3 | 0.48 | 2019-01-14 18:19:08 | 2019-01-15 04:57:00 | n |
| 140154 | IIEES | SRSL | E | 3963.8 | 0.43 | 2019-01-14 18:19:10 | 2019-01-15 04:57:00 | n |
| 140155 | IIEES | GIDE | N | 410.3 | 0.92 | 2019-01-14 18:20:38 | 2019-01-15 04:57:00 | n |
| 140156 | IIEES | GHVR | E | 245.8 | 0.41 | 2019-01-14 18:20:18 | 2019-01-15 04:57:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2019-01-14 18:18:13 | 0.25 | y | 78.1 | 132 | |||
| IIEES | SNGE | Z | Pg | E | 2019-01-14 18:18:31 | -0.08 | y | 196 | 55 | |||
| IIEES | SNGE | N | Sg | E | 2019-01-14 18:18:55 | 0.25 | y | 196 | 55 | |||
| IIEES | SRSL | Z | Pn | E | 2019-01-14 18:18:36 | 0.63 | y | 235 | 357 | |||
| IIEES | SRSL | N | Sg | E | 2019-01-14 18:19:05 | -0.43 | y | 235 | 357 | |||
| IIEES | ZNJK | Z | Pn | E | 2019-01-14 18:18:57 | 0.37 | y | 401 | 44 | |||
| IIEES | KHMZ | Z | Pn | E | 2019-01-14 18:18:57 | -0.13 | y | 407 | 94 | |||
| IIEES | ASAO | Z | Pn | E | 2019-01-14 18:18:59 | 0.84 | y | 412 | 82 | |||
| IIEES | GIDE | Z | Pn | E | 2019-01-14 18:19:09 | 0.04 | y | 502 | 50 | |||
| IIEES | GHVR | Z | Pn | E | 2019-01-14 18:19:12 | 0.21 | y | 523 | 84 | |||
| IIEES | THKV | Z | Pn | E | 2019-01-14 18:19:11 | -0.41 | y | 524 | 66 | |||
| IIEES | CHTH | Z | Pn | E | 2019-01-14 18:19:14 | -0.58 | y | 544 | 67 | |||
| IIEES | GRMI | Z | Pn | E | 2019-01-14 18:19:16 | 0.17 | y | 562 | 21 | |||
| IIEES | MAKU | Z | Pn | E | 2019-01-14 18:19:20 | -0.01 | y | 589 | 352 | |||
| IIEES | DAMV | Z | Pn | E | 2019-01-14 18:19:21 | -0.67 | y | 608 | 72 | |||
| IIEES | NASN | Z | Pn | E | 2019-01-14 18:19:31 | -0.91 | y | 687 | 100 | |||
| IIEES | AHRM | Z | Pn | E | 2019-01-14 18:19:44 | -0.7 | y | 794 | 135 | |||
| IIEES | MRVT | Z | Pn | E | 2019-01-14 18:20:14 | -0.21 | y | 1027 | 64 | |||
| IIEES | BJRD | Z | Pn | E | 2019-01-14 18:20:28 | -0.35 | y | 1139 | 66 | |||
