Magnitude |
:3.9 |
| Date & Time (UTC) | 2019-01-15 05:56:47.3 |
| Date & Time (Local) | 1397/10/25 09:26:47.3 |

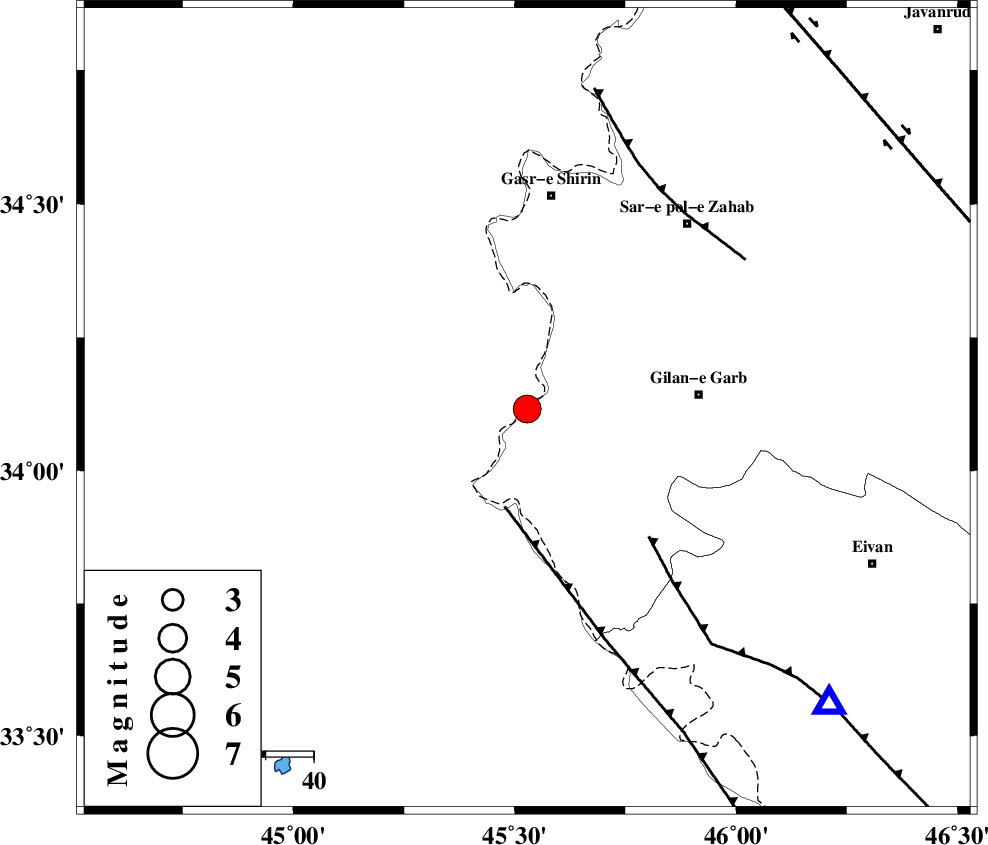

| Location | Lat:34.116 Lon: 45.528 |
| Region | Iraq, 36 km -West of Gilan-E-Gharb |
Nearest Cities |
|
| 28 km North West of Sumar, Kermanshah Province | |
| 32 km South of Khosravi, Kermanshah Province | |
| 36 km West of Gilan-E-Gharb, Kermanshah Province | |
| 37 km South of Seyyed sohrab, Kermanshah Province | |
| 38 km South West of Chub baghan, Kermanshah Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 21 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 37 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 52 km | |
| Number of Phases | 13 |
| RMS | 0.4 |
| Number of Stations | 11 |
| Error in Latitude | >3.8 km |
| Error in Longitude | 6.4 km |
| Error in Depth | 7.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 140168 | IIEES | ILBA | N | 3582.8 | 0.45 | 2019-01-15 05:57:20 | 2019-01-15 07:00:00 | n |
| 140169 | IIEES | SNGE | N | 611.4 | 0.77 | 2019-01-15 05:57:54 | 2019-01-15 07:00:00 | n |
| 140170 | IIEES | SRSL | E | 985.3 | 0.34 | 2019-01-15 05:57:56 | 2019-01-15 07:00:00 | n |
| 140171 | IIEES | SRSL | N | 1643 | 0.34 | 2019-01-15 05:57:57 | 2019-01-15 07:00:00 | n |
| 140172 | IIEES | GIDE | E | 70 | 0.62 | 2019-01-15 05:59:32 | 2019-01-15 07:00:00 | n |
| 140173 | IIEES | GHVR | E | 41.5 | 0.44 | 2019-01-15 05:59:29 | 2019-01-15 07:00:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2019-01-15 05:57:01 | -0.11 | y | 83.2 | 131 | |||
| IIEES | SNGE | Z | Pg | E | 2019-01-15 05:57:19 | -0.24 | y | 199 | 57 | |||
| IIEES | SNGE | N | Sg | E | 2019-01-15 05:57:44 | 0.1 | y | 199 | 57 | |||
| IIEES | SRSL | Z | Pn | E | 2019-01-15 05:57:24 | 0.34 | y | 233 | 358 | |||
| IIEES | SRSL | N | Sg | E | 2019-01-15 05:57:52 | -0.33 | y | 233 | 358 | |||
| IIEES | ZNJK | Z | Pn | E | 2019-01-15 05:57:45 | 0.02 | y | 403 | 44 | |||
| IIEES | KHMZ | Z | Pn | E | 2019-01-15 05:57:45 | -0.76 | y | 412 | 95 | |||
| IIEES | ASAO | Z | Pn | E | 2019-01-15 05:57:47 | 0.67 | y | 417 | 82 | |||
| IIEES | GIDE | Z | Pn | E | 2019-01-15 05:57:58 | 0.91 | y | 505 | 51 | |||
| IIEES | GHVR | Z | Pn | E | 2019-01-15 05:58:00 | 0.04 | y | 528 | 84 | |||
| IIEES | CHTH | Z | Pn | E | 2019-01-15 05:58:02 | -0.44 | y | 548 | 67 | |||
| IIEES | GRMI | Z | Pn | E | 2019-01-15 05:58:04 | -0.06 | y | 562 | 21 | |||
| IIEES | MAKU | Z | Pn | E | 2019-01-15 05:58:07 | -0.03 | y | 586 | 353 | |||
