Magnitude |
:4.1 |
| Date & Time (UTC) | 2019-01-15 17:07:01.5 |
| Date & Time (Local) | 1397/10/25 20:37:01.5 |

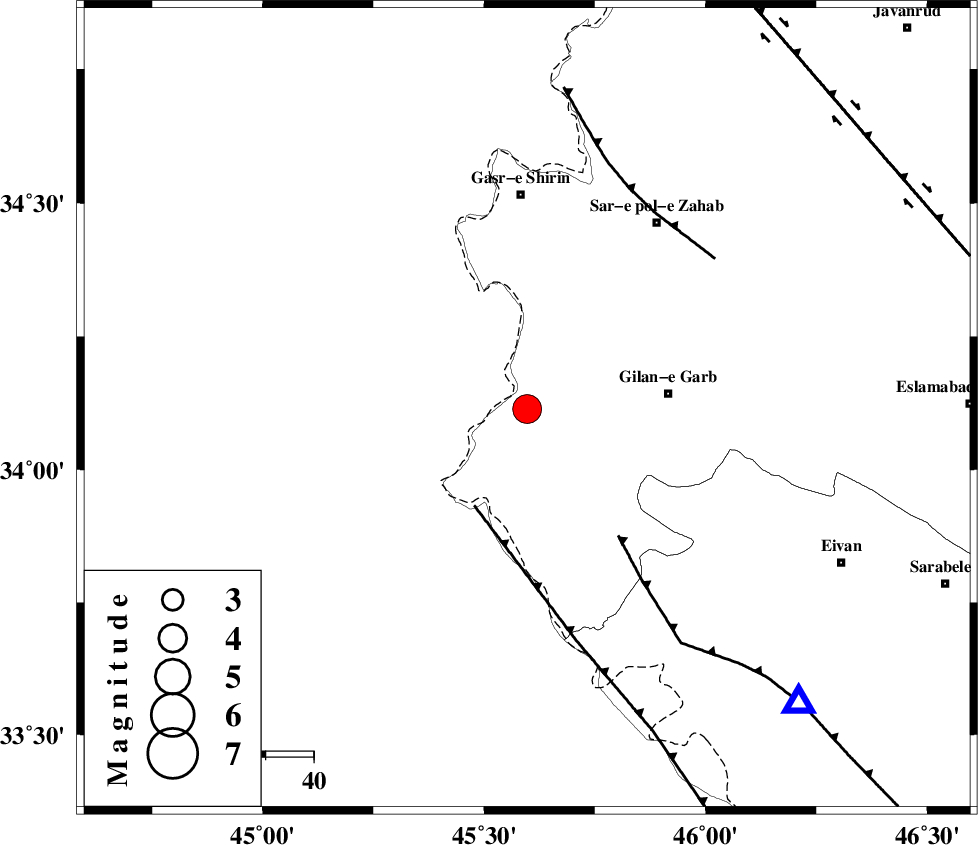

| Location | Lat:34.114 Lon: 45.597 |
| Region | Kermanshah Province, 29 km -West of Gilan-E-Gharb |
Nearest Cities |
|
| 26 km North of Sumar, Kermanshah Province | |
| 29 km West of Gilan-E-Gharb, Kermanshah Province | |
| 33 km South West of Chub baghan, Kermanshah Province | |
| 34 km South East of Khosravi, Kermanshah Province | |
| 34 km North West of Nian, Kermanshah Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 23 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 33 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 49 km | |
| Number of Phases | 15 |
| RMS | 0.4 |
| Number of Stations | 13 |
| Error in Latitude | >3.4 km |
| Error in Longitude | 5.7 km |
| Error in Depth | 6.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 140186 | IIEES | ILBA | E | 9230.1 | 0.28 | 2019-01-15 17:07:26 | 2019-01-16 07:21:00 | n |
| 140187 | IIEES | ILBA | N | 6796.3 | 0.51 | 2019-01-15 17:07:36 | 2019-01-16 07:21:00 | n |
| 140188 | IIEES | SRSL | N | 1323.9 | 0.72 | 2019-01-15 17:08:10 | 2019-01-16 07:21:00 | n |
| 140189 | IIEES | GHVR | N | 84.3 | 0.72 | 2019-01-15 17:09:45 | 2019-01-16 07:21:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ILBA | Z | Pg | E | 2019-01-15 17:07:14 | -0.14 | y | 78.3 | 134 | |||
| IIEES | SNGE | Z | Pg | E | 2019-01-15 17:07:33 | -0.07 | y | 194 | 55 | |||
| IIEES | SNGE | N | Sg | E | 2019-01-15 17:07:56 | 0.08 | y | 194 | 55 | |||
| IIEES | SRSL | Z | Pn | E | 2019-01-15 17:07:38 | 0.53 | y | 233 | 356 | |||
| IIEES | SRSL | N | Sg | E | 2019-01-15 17:08:07 | -0.6 | y | 233 | 356 | |||
| IIEES | ZNJK | Z | Pn | E | 2019-01-15 17:07:59 | 0.49 | y | 399 | 44 | |||
| IIEES | KHMZ | Z | Pn | E | 2019-01-15 17:07:59 | -0.21 | y | 406 | 95 | |||
| IIEES | ASAO | Z | Pn | E | 2019-01-15 17:08:00 | 0.34 | y | 410 | 82 | |||
| IIEES | GIDE | Z | Pn | E | 2019-01-15 17:08:12 | 0.64 | y | 500 | 50 | |||
| IIEES | GHVR | Z | Pn | E | 2019-01-15 17:08:13 | -0.08 | y | 521 | 84 | |||
| IIEES | CHTH | Z | Pn | E | 2019-01-15 17:08:16 | -0.05 | y | 542 | 67 | |||
| IIEES | GRMI | Z | Pn | E | 2019-01-15 17:08:18 | -0.18 | y | 560 | 21 | |||
| IIEES | MAKU | Z | Pn | E | 2019-01-15 17:08:22 | 0.08 | y | 587 | 352 | |||
| IIEES | NASN | Z | Pn | E | 2019-01-15 17:08:34 | -0.72 | y | 686 | 100 | |||
| IIEES | YZKH | Z | Pn | E | 2019-01-15 17:08:55 | -0.79 | y | 859 | 100 | |||
