Magnitude |
:4 |
| Date & Time (UTC) | 2019-03-22 13:26:20.1 |
| Date & Time (Local) | 1398/1/2 17:56:20.1 |

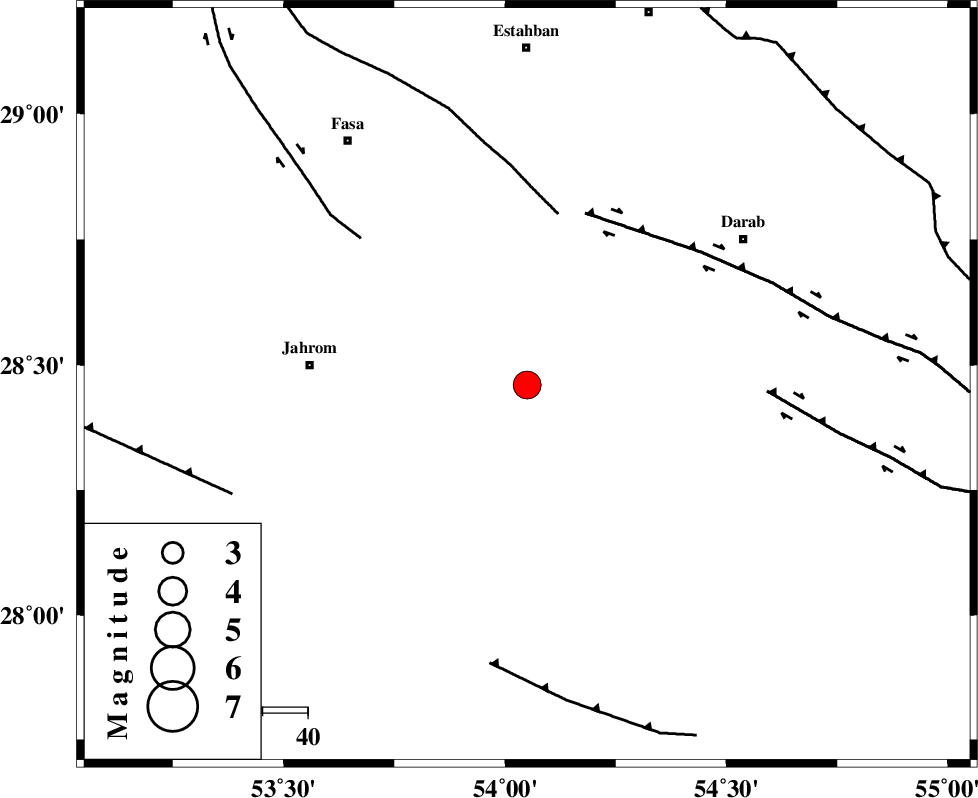

| Location | Lat:28.46 Lon: 54.05 |
| Region | Fars Province, 48 km -East of Jahrom |
Nearest Cities |
|
| 16 km North West of Dabiran, Fars Province | |
| 32 km North East of Khorramabad, Fars Province | |
| 33 km North West of Shahr-e pir, Fars Province | |
| 35 km South East of Alaviyeh, Fars Province | |
| 35 km North East of Juyam, Fars Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| BAKHTEGAN_F (Length: 94 km) , Distance to epicenter: 39 km | |
| HZF1 (Length: 102 km) , Distance to epicenter: 40 km | |
| SARVESTAN_F (Length: 94 km) , Distance to epicenter: 49 km | |
| Number of Phases | 44 |
| RMS | 0.8 |
| Number of Stations | 12 |
| Error in Latitude | >3 km |
| Error in Longitude | 0 km |
| Error in Depth | 10 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 141751 | IIEES SC | LMD1 | Z | 1700 | 1 | 2019-03-22 13:27:11 | 2019-03-22 10:59:00 | n |
| 141752 | IIEES SC | BNDS | Z | 350 | 1 | 2019-03-22 13:27:36 | 2019-03-22 10:59:00 | n |
| 141753 | IIEES SC | KRBR | Z | 230 | 1 | 2019-03-22 13:27:16 | 2019-03-22 10:59:00 | n |
| 141754 | IIEES SC | KLNJ | Z | 97 | 1 | 2019-03-22 13:28:26 | 2019-03-22 10:59:00 | n |
| 141755 | IIEES SC | YZKH | Z | 52 | 1 | 2019-03-22 13:28:47 | 2019-03-22 10:59:00 | n |
| 141756 | IIEES SC | NASN | Z | 26 | 1 | 2019-03-22 13:28:55 | 2019-03-22 10:59:00 | n |
| 141757 | IIEES SC | TABS | Z | 36 | 1 | 2019-03-22 13:29:52 | 2019-03-22 10:59:00 | n |
| 141758 | IIEES SC | TABS | Z | 10 | 0.54 | 2019-03-22 13:27:54 | 2019-03-22 10:59:00 | n |
| 141759 | IIEES SC | GHVR | Z | 24 | 1 | 2019-03-22 13:29:29 | 2019-03-22 10:59:00 | n |
| 141760 | IIEES SC | GHVR | Z | 19 | 0.73 | 2019-03-22 13:28:03 | 2019-03-22 10:59:00 | n |
| 141761 | IIEES SC | ASAO | Z | 17 | 1 | 2019-03-22 13:30:02 | 2019-03-22 10:59:00 | n |
| 141762 | IIEES SC | ASAO | Z | 5.5 | 0.72 | 2019-03-22 13:28:04 | 2019-03-22 10:59:00 | n |
| 141763 | IIEES SC | DAMV | Z | 13 | 1 | 2019-03-22 13:28:10 | 2019-03-22 10:59:00 | n |
| 141764 | IIEES SC | DAMV | Z | 7.5 | 0.59 | 2019-03-22 13:28:10 | 2019-03-22 10:59:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | LMD1 | N | IS | I | 2019-03-22 13:27:04 | 0.2 | y | 155 | 215 | |||
| IIEES SC | LMD1 | Z | IP | I | 2019-03-22 13:26:45 | 0.2 | y | 155 | 215 | |||
| IIEES SC | BNDS | N | IS | I | 2019-03-22 13:27:27 | 0.6 | y | 244 | 119 | |||
| IIEES SC | BNDS | Z | IP | I | 2019-03-22 13:26:56 | -1.6 | y | 244 | 119 | |||
| IIEES SC | AHRM | N | IS | I | 2019-03-22 13:27:46 | 13.3 | n | 4 | 278 | 280 | ||
| IIEES SC | AHRM | Z | IP | I | 2019-03-22 13:27:07 | 5.3 | n | 4 | 278 | 280 | ||
| IIEES SC | KRBR | Z | IP | I | 2019-03-22 13:27:08 | 0.8 | y | 311 | 57 | |||
| IIEES SC | KLNJ | Z | IP | I | 2019-03-22 13:27:13 | -0.9 | y | 366 | 320 | |||
| IIEES SC | YZKH | Z | IP | I | 2019-03-22 13:27:24 | 1.1 | y | 444 | 7 | |||
| IIEES SC | NASN | Z | IP | I | 2019-03-22 13:27:30 | 0 | y | 500 | 346 | |||
| IIEES SC | TABS | Z | IP | I | 2019-03-22 13:27:48 | -0.3 | y | 644 | 27 | |||
| IIEES SC | KHMZ | Z | IP | I | 2019-03-22 13:27:53 | -2.6 | n | 4 | 700 | 326 | ||
| IIEES SC | GHVR | Z | IP | I | 2019-03-22 13:27:57 | -0.5 | y | 722 | 338 | |||
| IIEES SC | ASAO | Z | IP | I | 2019-03-22 13:28:04 | -0.6 | y | 778 | 330 | |||
| IIEES SC | DAMV | Z | IP | I | 2019-03-22 13:28:09 | -0.5 | y | 822 | 346 | |||
| IIEES SC | LMD1 | 1327 | 2019-03-22 13:27:09 | y | 155 | 215 | ||||||
| IIEES SC | LMD1 | Z | 1327 | 2019-03-22 13:27:11 | y | 155 | 215 | |||||
| IIEES SC | BNDS | 1327 | 2019-03-22 13:27:36 | y | 244 | 119 | ||||||
| IIEES SC | BNDS | Z | 1327 | 2019-03-22 13:27:57 | y | 244 | 119 | |||||
| IIEES SC | BNDS | Z | 1327 | 2019-03-22 13:27:36 | y | 244 | 119 | |||||
| IIEES SC | KRBR | 1327 | 2019-03-22 13:27:57 | y | 311 | 57 | ||||||
| IIEES SC | KRBR | Z | 1327 | 2019-03-22 13:27:53 | y | 311 | 57 | |||||
| IIEES SC | KRBR | Z | 1327 | 2019-03-22 13:27:16 | y | 311 | 57 | |||||
| IIEES SC | KLNJ | 1328 | 2019-03-22 13:28:28 | y | 366 | 320 | ||||||
| IIEES SC | KLNJ | Z | 1328 | 2019-03-22 13:28:47 | y | 366 | 320 | |||||
| IIEES SC | KLNJ | Z | 1328 | 2019-03-22 13:28:32 | y | 366 | 320 | |||||
| IIEES SC | YZKH | 1328 | 2019-03-22 13:28:35 | y | 444 | 7 | ||||||
| IIEES SC | YZKH | Z | 1328 | 2019-03-22 13:28:35 | y | 444 | 7 | |||||
| IIEES SC | YZKH | Z | 1328 | 2019-03-22 13:28:34 | y | 444 | 7 | |||||
| IIEES SC | NASN | 1328 | 2019-03-22 13:28:58 | y | 500 | 346 | ||||||
| IIEES SC | NASN | Z | 1329 | 2019-03-22 13:29:28 | y | 500 | 346 | |||||
| IIEES SC | NASN | Z | 1327 | 2019-03-22 13:27:31 | y | 500 | 346 | |||||
| IIEES SC | TABS | 1329 | 2019-03-22 13:29:53 | y | 644 | 27 | ||||||
| IIEES SC | TABS | Z | 1329 | 2019-03-22 13:29:51 | y | 644 | 27 | |||||
| IIEES SC | TABS | Z | 1329 | 2019-03-22 13:29:52 | y | 644 | 27 | |||||
| IIEES SC | GHVR | 1329 | 2019-03-22 13:29:53 | y | 722 | 338 | ||||||
| IIEES SC | GHVR | Z | 1331 | 2019-03-22 13:31:06 | y | 722 | 338 | |||||
| IIEES SC | GHVR | Z | 1329 | 2019-03-22 13:29:12 | y | 722 | 338 | |||||
| IIEES SC | ASAO | 1329 | 2019-03-22 13:29:29 | y | 778 | 330 | ||||||
| IIEES SC | ASAO | Z | 1330 | 2019-03-22 13:30:15 | y | 778 | 330 | |||||
| IIEES SC | ASAO | Z | 1330 | 2019-03-22 13:30:12 | y | 778 | 330 | |||||
| IIEES SC | DAMV | 1329 | 2019-03-22 13:29:53 | y | 822 | 346 | ||||||
| IIEES SC | DAMV | Z | 1330 | 2019-03-22 13:30:43 | y | 822 | 346 | |||||
| IIEES SC | DAMV | Z | 1330 | 2019-03-22 13:30:03 | y | 822 | 346 | |||||
