Magnitude |
:3.2 |
| Date & Time (UTC) | 2019-07-05 14:19:55.0 |
| Date & Time (Local) | 1398/4/14 18:49:55.0 |

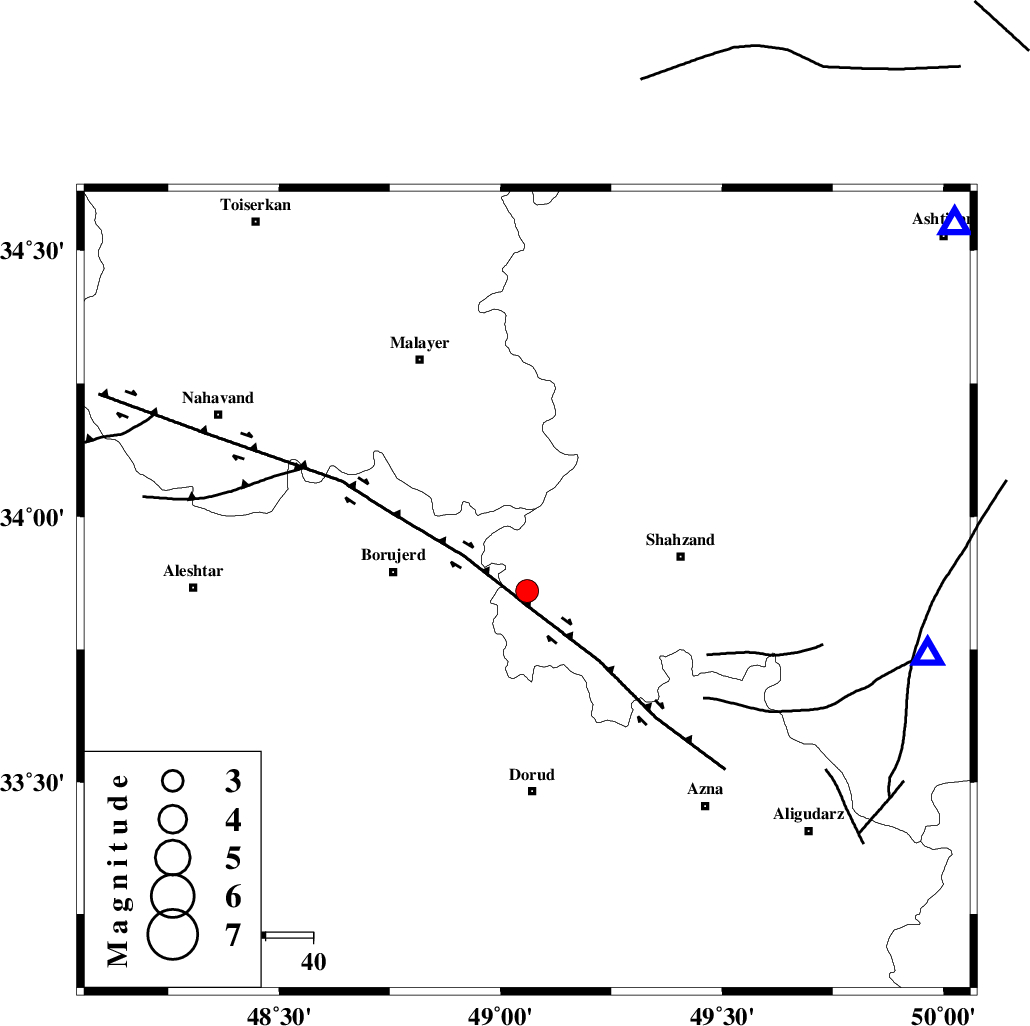

| Location | Lat:33.86 Lon: 49.06 |
| Region | Markazi Province, 28 km -East of Borujerd |
Nearest Cities |
|
| 7 km of Dehkaeed, Markazi Province | |
| 8 km North of Hashian, Markazi Province | |
| 19 km North West of Hendudar, Markazi Province | |
| 21 km South West of Nahrmian, Markazi Province | |
| 21 km East of Valanjerd, Lorestan Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| DORUD (Length: 100 km) , Distance to epicenter: 26 km | |
| NAHAVAND_F (Length: 102 km) , Distance to epicenter: 27 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 40 km | |
| Number of Phases | 22 |
| RMS | 0.7 |
| Number of Stations | 11 |
| Error in Latitude | >1 km |
| Error in Longitude | 0 km |
| Error in Depth | 7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 143736 | IIEES SC | KHMZ | Z | 1100 | 1 | 2019-07-05 14:20:23 | 2019-07-06 10:14:00 | n |
| 143737 | IIEES SC | ASAO | Z | 540 | 1 | 2019-07-05 14:20:36 | 2019-07-06 10:14:00 | n |
| 143738 | IIEES SC | GTMR | Z | 470 | 1 | 2019-07-05 14:20:21 | 2019-07-06 10:14:00 | n |
| 143739 | IIEES SC | SNGE | Z | 240 | 1 | 2019-07-05 14:21:00 | 2019-07-06 10:14:00 | n |
| 143740 | IIEES SC | GHVR | Z | 230 | 1 | 2019-07-05 14:20:36 | 2019-07-06 10:14:00 | n |
| 143741 | IIEES SC | ILBA | Z | 47 | 1 | 2019-07-05 14:21:21 | 2019-07-06 10:14:00 | n |
| 143742 | IIEES SC | THKV | Z | 53 | 1 | 2019-07-05 14:21:24 | 2019-07-06 10:14:00 | n |
| 143743 | IIEES SC | CHTH | Z | 44 | 1 | 2019-07-05 14:21:22 | 2019-07-06 10:14:00 | n |
| 143744 | IIEES SC | ZNJK | Z | 30 | 1 | 2019-07-05 14:21:31 | 2019-07-06 10:14:00 | n |
| 143745 | IIEES SC | KGS1 | Z | 100 | 1 | 2019-07-05 14:21:05 | 2019-07-06 10:14:00 | n |
| 143746 | IIEES SC | DAMV | Z | 61 | 1 | 2019-07-05 14:21:39 | 2019-07-06 10:14:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | KHMZ | Z | IP | I | 2019-07-05 14:20:09 | -0.9 | y | 88 | 99 | |||
| IIEES SC | ASAO | Z | IP | I | 2019-07-05 14:20:14 | -0.6 | y | 122 | 50 | |||
| IIEES SC | GTMR | Z | IP | I | 2019-07-05 14:20:20 | -0.1 | y | 155 | 178 | |||
| IIEES SC | SNGE | Z | IP | I | 2019-07-05 14:20:27 | -1.4 | y | 211 | 311 | |||
| IIEES SC | GHVR | N | IP | I | 2019-07-05 14:20:31 | 1.5 | y | 211 | 71 | |||
| IIEES SC | ILBA | Z | IP | I | 2019-07-05 14:20:37 | 1.1 | y | 266 | 264 | |||
| IIEES SC | THKV | Z | IP | I | 2019-07-05 14:20:38 | 0.3 | y | 278 | 36 | |||
| IIEES SC | CHTH | Z | IP | I | 2019-07-05 14:20:40 | 0.6 | y | 300 | 40 | |||
| IIEES SC | ZNJK | Z | IP | I | 2019-07-05 14:20:41 | -0.5 | y | 311 | 354 | |||
| IIEES SC | KGS1 | Z | IP | I | 2019-07-05 14:20:43 | 0.2 | y | 322 | 283 | |||
| IIEES SC | DAMV | Z | IP | I | 2019-07-05 14:20:44 | 0.6 | y | 333 | 54 | |||
| IIEES SC | KHMZ | 1420 | 2019-07-05 14:20:23 | y | 88 | 99 | ||||||
| IIEES SC | ASAO | 1420 | 2019-07-05 14:20:35 | y | 122 | 50 | ||||||
| IIEES SC | GTMR | 1420 | 2019-07-05 14:20:46 | y | 155 | 178 | ||||||
| IIEES SC | SNGE | 1422 | 2019-07-05 14:22:05 | y | 211 | 311 | ||||||
| IIEES SC | GHVR | 1421 | 2019-07-05 14:21:17 | y | 211 | 71 | ||||||
| IIEES SC | ILBA | 1421 | 2019-07-05 14:21:12 | y | 266 | 264 | ||||||
| IIEES SC | THKV | 1421 | 2019-07-05 14:21:20 | y | 278 | 36 | ||||||
| IIEES SC | CHTH | 1421 | 2019-07-05 14:21:22 | y | 300 | 40 | ||||||
| IIEES SC | ZNJK | 1421 | 2019-07-05 14:21:26 | y | 311 | 354 | ||||||
| IIEES SC | KGS1 | 1421 | 2019-07-05 14:21:26 | y | 322 | 283 | ||||||
| IIEES SC | DAMV | 1421 | 2019-07-05 14:21:34 | y | 333 | 54 | ||||||
