Magnitude |
:5.8 |
| Date & Time (UTC) | 2019-07-08 07:00:32.6 |
| Date & Time (Local) | 1398/4/17 11:30:32.6 |

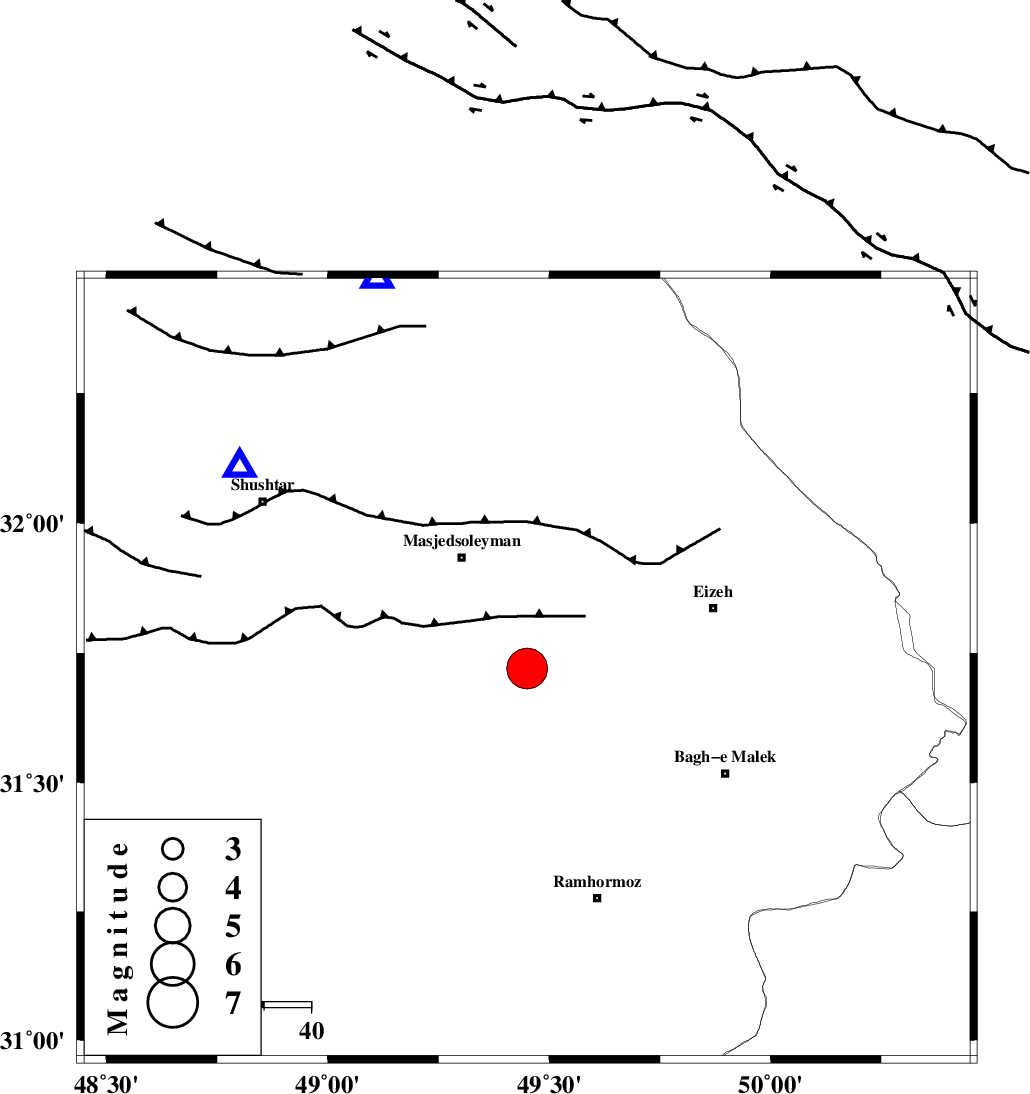

| Location | Lat:31.72 Lon: 49.45 |
| Region | Khoozestan Province, 28 km South-East of Masjed Soleyman |
Nearest Cities |
|
| 19 km North of Gazin, Khoozestan Province | |
| 21 km North of Jaru, Khoozestan Province | |
| 28 km South East of Masjed Soleyman, Khoozestan Province | |
| 31 km North of Haftgol, Khoozestan Province | |
| 32 km West of Chenarestan, Khoozestan Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 6 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 37 km | |
| AGHAJARI_F (Length: 88 km) , Distance to epicenter: 62 km | |
| Number of Phases | 76 |
| RMS | 1.3 |
| Number of Stations | 45 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 143931 | IIEES SC | GTMR | Z | 690000 | 1 | 2019-07-08 07:01:03 | 2019-07-08 12:00:00 | n |
| 143932 | IIEES SC | KLNJ | Z | 50000 | 1 | 2019-07-08 07:01:40 | 2019-07-08 12:00:00 | n |
| 143933 | IIEES SC | KHMZ | Z | 88000 | 1 | 2019-07-08 07:01:51 | 2019-07-08 12:00:00 | n |
| 143934 | IIEES SC | ASAO | Z | 40000 | 1 | 2019-07-08 07:02:16 | 2019-07-08 12:00:00 | n |
| 143935 | IIEES SC | NASN | Z | 20000 | 1 | 2019-07-08 07:02:28 | 2019-07-08 12:00:00 | n |
| 143936 | IIEES SC | GHVR | Z | 33000 | 1 | 2019-07-08 07:02:23 | 2019-07-08 12:00:00 | n |
| 143937 | IIEES SC | ILBA | Z | 34000 | 1 | 2019-07-08 07:02:33 | 2019-07-08 12:00:00 | n |
| 143938 | IIEES SC | KGS1 | Z | 37000 | 1 | 2019-07-08 07:02:55 | 2019-07-08 12:00:00 | n |
| 143939 | IIEES SC | THKV | Z | 12000 | 1 | 2019-07-08 07:03:26 | 2019-07-08 12:00:00 | n |
| 143940 | IIEES SC | YZKH | Z | 6600 | 1 | 2019-07-08 07:03:02 | 2019-07-08 12:00:00 | n |
| 143941 | IIEES SC | CHTH | Z | 14000 | 1 | 2019-07-08 07:03:07 | 2019-07-08 12:00:00 | n |
| 143942 | IIEES SC | DAMV | Z | 9800 | 1 | 2019-07-08 07:03:11 | 2019-07-08 12:00:00 | n |
| 143943 | IIEES SC | GHIR | Z | 2400 | 1 | 2019-07-08 07:03:55 | 2019-07-08 12:00:00 | n |
| 143944 | IIEES SC | ZNJK | Z | 5500 | 1 | 2019-07-08 07:03:37 | 2019-07-08 12:00:00 | n |
| 143945 | IIEES SC | GIDE | Z | 47000 | 1 | 2019-07-08 07:03:32 | 2019-07-08 12:00:00 | n |
| 143946 | IIEES SC | GIDE | Z | 10000 | 1.1 | 2019-07-08 07:02:18 | 2019-07-08 12:00:00 | n |
| 143947 | IIEES SC | ANJ | Z | 1400 | 1 | 2019-07-08 07:03:34 | 2019-07-08 12:00:00 | n |
| 143948 | IIEES SC | ANJ | Z | 790 | 0.77 | 2019-07-08 07:02:18 | 2019-07-08 12:00:00 | n |
| 143949 | IIEES SC | LMD1 | Z | 7600 | 1 | 2019-07-08 07:03:48 | 2019-07-08 12:00:00 | n |
| 143950 | IIEES SC | LMD1 | Z | 760 | 0.53 | 2019-07-08 07:02:13 | 2019-07-08 12:00:00 | n |
| 143951 | IIEES SC | SRSL | Z | 7400 | 1 | 2019-07-08 07:04:05 | 2019-07-08 12:00:00 | n |
| 143952 | IIEES SC | SRSL | Z | 2200 | 0.64 | 2019-07-08 07:02:16 | 2019-07-08 12:00:00 | n |
| 143953 | IIEES SC | MAHB | Z | 5700 | 1 | 2019-07-08 07:03:58 | 2019-07-08 12:00:00 | n |
| 143954 | IIEES SC | MAHB | Z | 1300 | 0.63 | 2019-07-08 07:02:28 | 2019-07-08 12:00:00 | n |
| 143955 | IIEES SC | GLO | Z | 5300 | 1 | 2019-07-08 07:03:08 | 2019-07-08 12:00:00 | n |
| 143956 | IIEES SC | GLO | Z | 3000 | 0.96 | 2019-07-08 07:02:29 | 2019-07-08 12:00:00 | n |
| 143957 | IIEES SC | KRBR | Z | 1900 | 1 | 2019-07-08 07:04:21 | 2019-07-08 12:00:00 | n |
| 143958 | IIEES SC | KRBR | Z | 640 | 0.52 | 2019-07-08 07:02:18 | 2019-07-08 12:00:00 | n |
| 143959 | IIEES SC | AZR | Z | 5800 | 1 | 2019-07-08 07:04:38 | 2019-07-08 12:00:00 | n |
| 143960 | IIEES SC | AZR | Z | 1800 | 0.76 | 2019-07-08 07:02:36 | 2019-07-08 12:00:00 | n |
| 143961 | IIEES SC | TABS | Z | 4300 | 1 | 2019-07-08 07:04:28 | 2019-07-08 12:00:00 | n |
| 143962 | IIEES SC | TABS | Z | 2100 | 0.79 | 2019-07-08 07:02:34 | 2019-07-08 12:00:00 | n |
| 143963 | IIEES SC | SHRO | Z | 2100 | 1 | 2019-07-08 07:04:34 | 2019-07-08 12:00:00 | n |
| 143964 | IIEES SC | SHRO | Z | 1200 | 0.8 | 2019-07-08 07:02:17 | 2019-07-08 12:00:00 | n |
| 143965 | IIEES SC | GRMI | Z | 1800 | 1 | 2019-07-08 07:04:31 | 2019-07-08 12:00:00 | n |
| 143966 | IIEES SC | GRMI | Z | 250 | 0.78 | 2019-07-08 07:02:35 | 2019-07-08 12:00:00 | n |
| 143967 | IIEES SC | BNDS | Z | 2300 | 1 | 2019-07-08 07:03:51 | 2019-07-08 12:00:00 | n |
| 143968 | IIEES SC | BNDS | Z | 930 | 0.6 | 2019-07-08 07:02:32 | 2019-07-08 12:00:00 | n |
| 143969 | IIEES SC | MRVT | Z | 530 | 1 | 2019-07-08 07:04:45 | 2019-07-08 12:00:00 | n |
| 143970 | IIEES SC | MRVT | Z | 220 | 0.62 | 2019-07-08 07:02:46 | 2019-07-08 12:00:00 | n |
| 143971 | IIEES SC | SBZV | Z | 1200 | 1 | 2019-07-08 07:02:51 | 2019-07-08 12:00:00 | n |
| 143972 | IIEES SC | SBZV | Z | 700 | 0.83 | 2019-07-08 07:02:39 | 2019-07-08 12:00:00 | n |
| 143973 | IIEES SC | BSRN | Z | 640 | 1 | 2019-07-08 07:05:01 | 2019-07-08 12:00:00 | n |
| 143974 | IIEES SC | BSRN | Z | 170 | 0.96 | 2019-07-08 07:02:53 | 2019-07-08 12:00:00 | n |
| 143975 | IIEES SC | BJRD | Z | 380 | 1 | 2019-07-08 07:02:51 | 2019-07-08 12:00:00 | n |
| 143976 | IIEES SC | BJRD | Z | 370 | 0.92 | 2019-07-08 07:02:52 | 2019-07-08 12:00:00 | n |
| 143977 | IIEES SC | RAYN | Z | 2700 | 1 | 2019-07-08 07:04:22 | 2019-07-08 12:00:00 | n |
| 143978 | IIEES SC | RAYN | Z | 1800 | 0.65 | 2019-07-08 07:02:42 | 2019-07-08 12:00:00 | n |
| 143979 | IIEES SC | UOSS | Z | 450 | 0.56 | 2019-07-08 07:02:49 | 2019-07-08 12:00:00 | n |
| 143980 | IIEES SC | AKL | Z | 230 | 1.14 | 2019-07-08 07:03:07 | 2019-07-08 12:00:00 | n |
| 143981 | IIEES SC | SHRT | Z | 450 | 0.9 | 2019-07-08 07:03:05 | 2019-07-08 12:00:00 | n |
| 143982 | IIEES SC | TBJM | Z | 280 | 1.21 | 2019-07-08 07:03:11 | 2019-07-08 12:00:00 | n |
| 143983 | IIEES SC | ZHSF | Z | 130 | 1.01 | 2019-07-08 07:03:13 | 2019-07-08 12:00:00 | n |
| 143984 | IIEES SC | CHBR | Z | 720 | 0.81 | 2019-07-08 07:03:26 | 2019-07-08 12:00:00 | n |
| 143985 | IIEES SC | ARPR | Z | 320 | 0.89 | 2019-07-08 07:03:48 | 2019-07-08 12:00:00 | n |
| 143986 | IIEES SC | SALP | Z | 310 | 0.91 | 2019-07-08 07:03:46 | 2019-07-08 12:00:00 | n |
| 143987 | IIEES SC | EIL | Z | 470 | 0.76 | 2019-07-08 07:03:53 | 2019-07-08 12:00:00 | n |
| 143988 | IIEES SC | KIV | Z | 240 | 0.97 | 2019-07-08 07:04:11 | 2019-07-08 12:00:00 | n |
| 143989 | IIEES SC | KBL | Z | 210 | 1.08 | 2019-07-08 07:04:42 | 2019-07-08 12:00:00 | n |
| 143990 | IIEES SC | AAK | Z | 210 | 1.43 | 2019-07-08 07:05:47 | 2019-07-08 12:00:00 | n |
| 143991 | IIEES SC | OBN | Z | 430 | 1.44 | 2019-07-08 07:06:05 | 2019-07-08 12:00:00 | n |
| 143992 | IIEES SC | PALK | Z | 38 | 0.93 | 2019-07-08 07:08:00 | 2019-07-08 12:00:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GTMR | Z | IP | I | 2019-07-08 07:00:45 | -2.6 | y | 88 | 339 | |||
| IIEES SC | KLNJ | Z | IP | I | 2019-07-08 07:01:07 | 1.5 | y | 222 | 111 | |||
| IIEES SC | KHMZ | Z | IP | I | 2019-07-08 07:01:07 | 0.2 | y | 233 | 12 | |||
| IIEES SC | ASAO | Z | IP | I | 2019-07-08 07:01:18 | 0.6 | y | 322 | 10 | |||
| IIEES SC | NASN | Z | IP | I | 2019-07-08 07:01:17 | -3.5 | y | 333 | 68 | |||
| IIEES SC | GHVR | Z | IP | I | 2019-07-08 07:01:23 | 1.1 | y | 344 | 28 | |||
| IIEES SC | ILBA | Z | IP | I | 2019-07-08 07:01:24 | -0.1 | y | 366 | 306 | |||
| IIEES SC | KGS1 | Z | IP | I | 2019-07-08 07:01:37 | 0 | y | 478 | 312 | |||
| IIEES SC | THKV | Z | IP | I | 2019-07-08 07:01:39 | 0.3 | y | 489 | 15 | |||
| IIEES SC | YZKH | Z | IP | I | 2019-07-08 07:01:39 | 0.3 | y | 489 | 80 | |||
| IIEES SC | CHTH | Z | IP | I | 2019-07-08 07:01:39 | -0.2 | y | 489 | 18 | |||
| IIEES SC | DAMV | Z | IP | I | 2019-07-08 07:01:39 | -0.3 | y | 489 | 28 | |||
| IIEES SC | GHIR | Z | IP | I | 2019-07-08 07:01:42 | 0 | y | 511 | 137 | |||
| IIEES SC | ZNJK | Z | IP | I | 2019-07-08 07:01:46 | -0.6 | y | 556 | 353 | |||
| IIEES SC | GIDE | Z | IP | I | 2019-07-08 07:01:50 | -0.1 | y | 578 | 4 | |||
| IIEES SC | ANJ | Z | IP | I | 2019-07-08 07:01:51 | -0.4 | y | 589 | 44 | |||
| IIEES SC | LMD1 | Z | IP | I | 2019-07-08 07:01:54 | 0.7 | y | 600 | 143 | |||
| IIEES SC | SRSL | Z | IP | I | 2019-07-08 07:01:55 | 0.1 | y | 622 | 325 | |||
| IIEES SC | MAHB | Z | IP | I | 2019-07-08 07:02:00 | 0 | y | 656 | 329 | |||
| IIEES SC | GLO | Z | IP | I | 2019-07-08 07:02:02 | 0.9 | y | 667 | 36 | |||
| IIEES SC | KRBR | Z | IP | I | 2019-07-08 07:02:08 | 0.3 | y | 722 | 104 | |||
| IIEES SC | AZR | Z | IP | I | 2019-07-08 07:02:10 | 1 | y | 733 | 335 | |||
| IIEES SC | TABS | Z | IP | I | 2019-07-08 07:02:11 | -0.1 | y | 745 | 71 | |||
| IIEES SC | SHRO | Z | IP | I | 2019-07-08 07:02:13 | -0.3 | y | 767 | 50 | |||
| IIEES SC | GRMI | Z | IP | I | 2019-07-08 07:02:17 | -0.6 | y | 800 | 350 | |||
| IIEES SC | BNDS | Z | IP | I | 2019-07-08 07:02:18 | -0.8 | y | 811 | 125 | |||
| IIEES SC | MRVT | Z | IP | I | 2019-07-08 07:02:29 | -0.6 | y | 900 | 41 | |||
| IIEES SC | SBZV | Z | IP | I | 2019-07-08 07:02:31 | -0.4 | y | 911 | 53 | |||
| IIEES SC | BSRN | Z | IP | I | 2019-07-08 07:02:31 | -0.2 | y | 911 | 86 | |||
| IIEES SC | BJRD | Z | IP | I | 2019-07-08 07:02:40 | -0.2 | y | 989 | 45 | |||
| IIEES SC | RAYN | Z | IP | I | 2019-07-08 07:02:39 | -1.5 | y | 989 | 204 | |||
| IIEES SC | UOSS | Z | IP | I | 2019-07-08 07:02:42 | -0.1 | y | 1000 | 137 | |||
| IIEES SC | AKL | Z | IP | I | 2019-07-08 07:02:44 | 0.1 | y | 1011 | 55 | |||
| IIEES SC | GNI | Z | IP | I | 2019-07-08 07:02:49 | 3.8 | n | 4 | 1023 | 337 | ||
| IIEES SC | SHRT | Z | IP | I | 2019-07-08 07:02:47 | 0.2 | y | 1034 | 75 | |||
| IIEES SC | TBJM | Z | IP | I | 2019-07-08 07:02:52 | -0.1 | y | 1078 | 66 | |||
| IIEES SC | ZHSF | Z | IP | I | 2019-07-08 07:02:57 | 1.4 | y | 1112 | 99 | |||
| IIEES SC | CHBR | Z | IP | I | 2019-07-08 07:03:14 | -2 | y | 1267 | 120 | |||
| IIEES SC | ARPR | Z | IP | I | 2019-07-08 07:03:21 | 2.1 | y | 1301 | 312 | |||
| IIEES SC | SALP | Z | IP | I | 2019-07-08 07:03:26 | 1.3 | y | 1345 | 275 | |||
| IIEES SC | EIL | Z | IP | I | 2019-07-08 07:03:30 | -2.5 | y | 1401 | 264 | |||
| IIEES SC | KIV | Z | IP | I | 2019-07-08 07:03:45 | 3.4 | y | 1478 | 338 | |||
| IIEES SC | KBL | Z | IP | I | 2019-07-08 07:04:26 | 0.6 | y | 1845 | 75 | |||
| IIEES SC | AAK | Z | IP | I | 2019-07-08 07:05:33 | -0.7 | y | 2513 | 54 | |||
| IIEES SC | OBN | Z | IP | I | 2019-07-08 07:05:55 | -2 | y | 2791 | 343 | |||
| IIEES SC | PALK | Z | IP | I | 2019-07-08 07:07:54 | 3.9 | y | 4225 | 123 | |||
| IIEES SC | GIDE | Z | IVmB_BB | 2019-07-08 07:02:15 | y | 1 | 578 | 4 | ||||
| IIEES SC | ANJ | Z | IVmB_BB | 2019-07-08 07:02:42 | y | 1 | 589 | 44 | ||||
| IIEES SC | LMD1 | Z | IVmB_BB | 2019-07-08 07:02:46 | y | 1 | 600 | 143 | ||||
| IIEES SC | SRSL | Z | IVmB_BB | 2019-07-08 07:02:14 | y | 1 | 622 | 325 | ||||
| IIEES SC | MAHB | Z | IVmB_BB | 2019-07-08 07:02:37 | y | 1 | 656 | 329 | ||||
| IIEES SC | GLO | Z | IVmB_BB | 2019-07-08 07:02:49 | y | 1 | 667 | 36 | ||||
| IIEES SC | KRBR | Z | IVmB_BB | 2019-07-08 07:02:42 | y | 1 | 722 | 104 | ||||
| IIEES SC | AZR | Z | IVmB_BB | 2019-07-08 07:02:51 | y | 1 | 733 | 335 | ||||
| IIEES SC | TABS | Z | IVmB_BB | 2019-07-08 07:02:47 | y | 1 | 745 | 71 | ||||
| IIEES SC | SHRO | Z | IVmB_BB | 2019-07-08 07:03:05 | y | 1 | 767 | 50 | ||||
| IIEES SC | GRMI | Z | IVmB_BB | 2019-07-08 07:02:51 | y | 1 | 800 | 350 | ||||
| IIEES SC | BNDS | Z | IVmB_BB | 2019-07-08 07:02:27 | y | 1 | 811 | 125 | ||||
| IIEES SC | MRVT | Z | IVmB_BB | 2019-07-08 07:03:23 | y | 1 | 900 | 41 | ||||
| IIEES SC | SBZV | Z | IVmB_BB | 2019-07-08 07:02:51 | y | 1 | 911 | 53 | ||||
| IIEES SC | BSRN | Z | IVmB_BB | 2019-07-08 07:03:23 | y | 1 | 911 | 86 | ||||
| IIEES SC | BJRD | Z | IVmB_BB | 2019-07-08 07:02:48 | y | 1 | 989 | 45 | ||||
| IIEES SC | RAYN | Z | IVmB_BB | 2019-07-08 07:03:33 | y | 1 | 989 | 204 | ||||
| IIEES SC | UOSS | Z | IVmB_BB | 2019-07-08 07:03:04 | y | 1 | 1000 | 137 | ||||
| IIEES SC | AKL | Z | IVmB_BB | 2019-07-08 07:02:52 | y | 1 | 1011 | 55 | ||||
| IIEES SC | SHRT | Z | IVmB_BB | 2019-07-08 07:02:55 | y | 1 | 1034 | 75 | ||||
| IIEES SC | TBJM | Z | IVmB_BB | 2019-07-08 07:03:45 | y | 1 | 1078 | 66 | ||||
| IIEES SC | ZHSF | Z | IVmB_BB | 2019-07-08 07:03:06 | y | 1 | 1112 | 99 | ||||
| IIEES SC | CHBR | Z | IVmB_BB | 2019-07-08 07:03:23 | y | 1 | 1267 | 120 | ||||
| IIEES SC | ARPR | Z | IVmB_BB | 2019-07-08 07:04:12 | y | 1 | 1301 | 312 | ||||
| IIEES SC | SALP | Z | IVmB_BB | 2019-07-08 07:03:41 | y | 1 | 1345 | 275 | ||||
| IIEES SC | EIL | Z | IVmB_BB | 2019-07-08 07:03:56 | y | 1 | 1401 | 264 | ||||
| IIEES SC | KIV | Z | IVmB_BB | 2019-07-08 07:03:50 | y | 1 | 1478 | 338 | ||||
| IIEES SC | KBL | Z | IVmB_BB | 2019-07-08 07:04:43 | y | 1 | 1845 | 75 | ||||
| IIEES SC | AAK | Z | IVmB_BB | 2019-07-08 07:05:44 | y | 1 | 2513 | 54 | ||||
| IIEES SC | OBN | Z | IVmB_BB | 2019-07-08 07:06:04 | y | 1 | 2791 | 343 | ||||
