Magnitude |
:3.9 |
| Date & Time (UTC) | 2019-07-15 20:51:15.4 |
| Date & Time (Local) | 1398/4/25 01:21:15.4 |

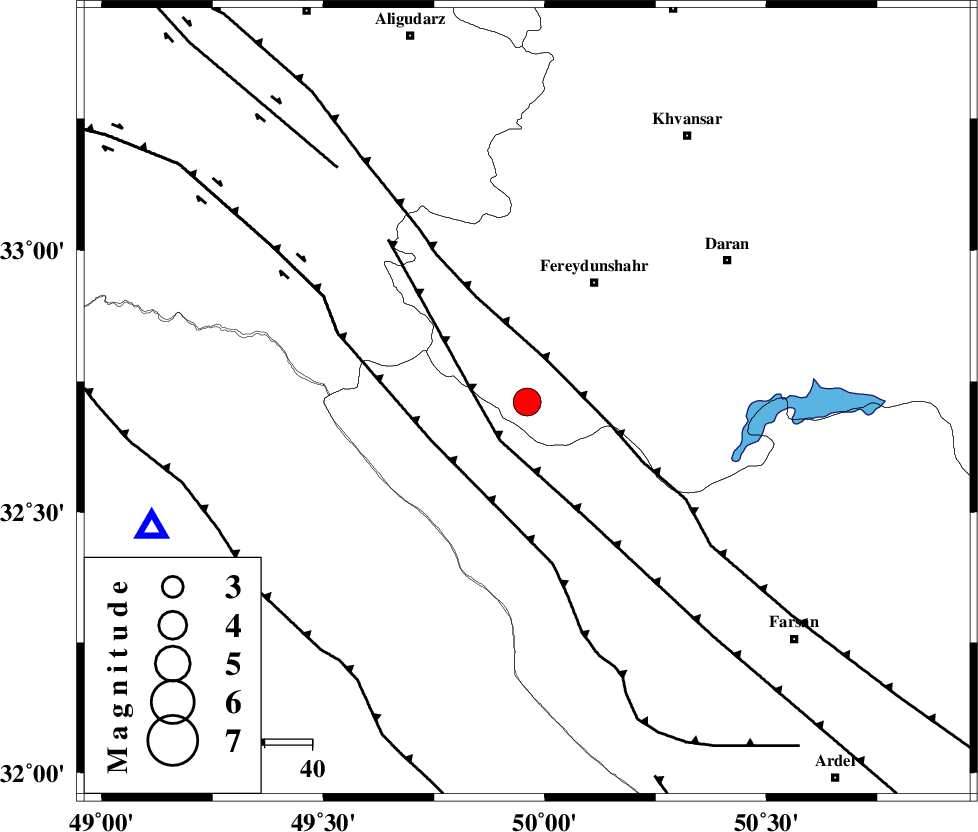

| Location | Lat:32.71 Lon: 49.96 |
| Region | Esfahan Province, 29 km South-West of Fereydunshahr |
Nearest Cities |
|
| 9 km North of Durak, Chaharmahal Bakhtiari Province | |
| 18 km South East of Masir, Esfahan Province | |
| 22 km South West of Sibak, Esfahan Province | |
| 25 km West of Ghale? sorkh, Esfahan Province | |
| 29 km South West of Fereydunshahr, Esfahan Province | |
| Depth | 9 km |
| Agency | |
Faults within 150 km: |
|
| ARDAL_F (Length: 170 km) , Distance to epicenter: 10 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 10 km | |
| ZARDKUH_F (Length: 139 km) , Distance to epicenter: 22 km | |
| Number of Phases | 47 |
| RMS | 0.8 |
| Number of Stations | 23 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 10 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 144210 | IIEES SC | GTMR | Z | 5600 | 1 | 2019-07-15 20:51:44 | 2019-07-16 02:26:00 | n |
| 144211 | IIEES SC | KHMZ | Z | 3700 | 1 | 2019-07-15 20:51:56 | 2019-07-16 02:26:00 | n |
| 144212 | IIEES SC | ASAO | Z | 1100 | 1 | 2019-07-15 20:52:26 | 2019-07-16 02:26:00 | n |
| 144213 | IIEES SC | GHVR | Z | 1200 | 1 | 2019-07-15 20:52:31 | 2019-07-16 02:26:00 | n |
| 144214 | IIEES SC | KLNJ | Z | 1800 | 1 | 2019-07-15 20:52:35 | 2019-07-16 02:26:00 | n |
| 144215 | IIEES SC | SNGE | Z | 520 | 1 | 2019-07-15 20:52:16 | 2019-07-16 02:26:00 | n |
| 144216 | IIEES SC | ILBA | Z | 250 | 1 | 2019-07-15 20:53:19 | 2019-07-16 02:26:00 | n |
| 144217 | IIEES SC | CHTH | Z | 230 | 1 | 2019-07-15 20:53:14 | 2019-07-16 02:26:00 | n |
| 144218 | IIEES SC | DAMV | Z | 260 | 1 | 2019-07-15 20:53:10 | 2019-07-16 02:26:00 | n |
| 144219 | IIEES SC | YZKH | Z | 260 | 1 | 2019-07-15 20:53:27 | 2019-07-16 02:26:00 | n |
| 144220 | IIEES SC | KGS1 | Z | 400 | 1 | 2019-07-15 20:53:13 | 2019-07-16 02:26:00 | n |
| 144221 | IIEES SC | GIDE | Z | 1000 | 1 | 2019-07-15 20:53:41 | 2019-07-16 02:26:00 | n |
| 144222 | IIEES SC | ANJ | Z | 74 | 1 | 2019-07-15 20:53:47 | 2019-07-16 02:26:00 | n |
| 144223 | IIEES SC | GLO | Z | 240 | 1 | 2019-07-15 20:54:09 | 2019-07-16 02:26:00 | n |
| 144224 | IIEES SC | SRSL | Z | 120 | 1 | 2019-07-15 20:53:39 | 2019-07-16 02:26:00 | n |
| 144225 | IIEES SC | SRSL | Z | 42 | 0.59 | 2019-07-15 20:52:43 | 2019-07-16 02:26:00 | n |
| 144226 | IIEES SC | SHRO | Z | 48 | 1 | 2019-07-15 20:54:50 | 2019-07-16 02:26:00 | n |
| 144227 | IIEES SC | SHRO | Z | 31 | 1.04 | 2019-07-15 20:53:14 | 2019-07-16 02:26:00 | n |
| 144228 | IIEES SC | TABS | Z | 90 | 1 | 2019-07-15 20:55:00 | 2019-07-16 02:26:00 | n |
| 144229 | IIEES SC | TABS | Z | 39 | 0.8 | 2019-07-15 20:53:16 | 2019-07-16 02:26:00 | n |
| 144230 | IIEES SC | GRMI | Z | 43 | 1 | 2019-07-15 20:54:55 | 2019-07-16 02:26:00 | n |
| 144231 | IIEES SC | GRMI | Z | 11 | 0.78 | 2019-07-15 20:53:09 | 2019-07-16 02:26:00 | n |
| 144232 | IIEES SC | MRVT | Z | 12 | 1 | 2019-07-15 20:55:17 | 2019-07-16 02:26:00 | n |
| 144233 | IIEES SC | MRVT | Z | 5.3 | 0.9 | 2019-07-15 20:53:03 | 2019-07-16 02:26:00 | n |
| 144234 | IIEES SC | SBZV | Z | 17 | 1 | 2019-07-15 20:55:15 | 2019-07-16 02:26:00 | n |
| 144235 | IIEES SC | SBZV | Z | 13 | 0.58 | 2019-07-15 20:53:16 | 2019-07-16 02:26:00 | n |
| 144236 | IIEES SC | BJRD | Z | 7.7 | 1 | 2019-07-15 20:53:13 | 2019-07-16 02:26:00 | n |
| 144237 | IIEES SC | BJRD | Z | 6.4 | 0.65 | 2019-07-15 20:53:16 | 2019-07-16 02:26:00 | n |
| 144238 | IIEES SC | AKL | Z | 4 | 0.41 | 2019-07-15 20:53:27 | 2019-07-16 02:26:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GTMR | N | IS | I | 2019-07-15 20:51:42 | 1.1 | y | 88 | 252 | |||
| IIEES SC | GTMR | Z | IP | I | 2019-07-15 20:51:29 | -0.6 | y | 88 | 252 | |||
| IIEES SC | KHMZ | Z | IP | I | 2019-07-15 20:51:34 | -0.6 | y | 111 | 0 | |||
| IIEES SC | ASAO | Z | IP | I | 2019-07-15 20:51:48 | -0.1 | y | 200 | 2 | |||
| IIEES SC | GHVR | Z | IP | I | 2019-07-15 20:51:52 | -0.2 | y | 233 | 31 | |||
| IIEES SC | KLNJ | Z | IP | I | 2019-07-15 20:51:54 | 0 | y | 244 | 141 | |||
| IIEES SC | SNGE | Z | IP | I | 2019-07-15 20:52:08 | -0.1 | y | 355 | 318 | |||
| IIEES SC | ILBA | Z | IP | I | 2019-07-15 20:52:07 | -1.5 | y | 366 | 286 | |||
| IIEES SC | CHTH | Z | IP | I | 2019-07-15 20:52:11 | 1.3 | y | 366 | 17 | |||
| IIEES SC | DAMV | Z | IP | I | 2019-07-15 20:52:11 | 1 | y | 378 | 30 | |||
| IIEES SC | YZKH | Z | IP | I | 2019-07-15 20:52:17 | -0.9 | y | 433 | 95 | |||
| IIEES SC | KGS1 | Z | IP | I | 2019-07-15 20:52:18 | -1 | y | 455 | 296 | |||
| IIEES SC | GIDE | Z | IP | I | 2019-07-15 20:52:23 | 1.5 | y | 467 | 359 | |||
| IIEES SC | ANJ | Z | IP | I | 2019-07-15 20:52:23 | 0.7 | y | 478 | 50 | |||
| IIEES SC | GLO | Z | IP | I | 2019-07-15 20:52:34 | 2 | y | 556 | 40 | |||
| IIEES SC | SRSL | Z | IP | I | 2019-07-15 20:52:34 | 0.4 | y | 567 | 313 | |||
| IIEES SC | SHRO | Z | IP | I | 2019-07-15 20:52:47 | 0.9 | y | 667 | 57 | |||
| IIEES SC | TABS | Z | IP | I | 2019-07-15 20:52:47 | -0.6 | y | 678 | 81 | |||
| IIEES SC | GRMI | Z | IP | I | 2019-07-15 20:52:51 | 0.9 | y | 700 | 345 | |||
| IIEES SC | MRVT | Z | IP | I | 2019-07-15 20:53:01 | 0.8 | y | 778 | 45 | |||
| IIEES SC | SBZV | Z | IP | I | 2019-07-15 20:53:05 | 0.6 | y | 811 | 60 | |||
| IIEES SC | BJRD | Z | IP | I | 2019-07-15 20:53:13 | 1.2 | y | 878 | 51 | |||
| IIEES SC | AKL | Z | IP | I | 2019-07-15 20:53:18 | 0.8 | y | 911 | 62 | |||
| IIEES SC | GTMR | 2051 | 2019-07-15 20:51:46 | y | 88 | 252 | ||||||
| IIEES SC | KHMZ | 2051 | 2019-07-15 20:51:51 | y | 111 | 0 | ||||||
| IIEES SC | ASAO | 2052 | 2019-07-15 20:52:19 | y | 200 | 2 | ||||||
| IIEES SC | GHVR | 2052 | 2019-07-15 20:52:18 | y | 233 | 31 | ||||||
| IIEES SC | KLNJ | 2052 | 2019-07-15 20:52:34 | y | 244 | 141 | ||||||
| IIEES SC | SNGE | 2052 | 2019-07-15 20:52:43 | y | 355 | 318 | ||||||
| IIEES SC | ILBA | 2052 | 2019-07-15 20:52:49 | y | 366 | 286 | ||||||
| IIEES SC | CHTH | 2052 | 2019-07-15 20:52:40 | y | 366 | 17 | ||||||
| IIEES SC | DAMV | 2052 | 2019-07-15 20:52:25 | y | 378 | 30 | ||||||
| IIEES SC | YZKH | 2053 | 2019-07-15 20:53:09 | y | 433 | 95 | ||||||
| IIEES SC | KGS1 | 2053 | 2019-07-15 20:53:14 | y | 455 | 296 | ||||||
| IIEES SC | GIDE | 2053 | 2019-07-15 20:53:46 | y | 467 | 359 | ||||||
| IIEES SC | ANJ | 2054 | 2019-07-15 20:54:03 | y | 478 | 50 | ||||||
| IIEES SC | GLO | 2054 | 2019-07-15 20:54:17 | y | 556 | 40 | ||||||
| IIEES SC | SRSL | 2053 | 2019-07-15 20:53:38 | y | 567 | 313 | ||||||
| IIEES SC | SRSL | Z | IVmB_BB | 2019-07-15 20:52:36 | y | 1 | 567 | 313 | ||||
| IIEES SC | SHRO | 2054 | 2019-07-15 20:54:40 | y | 667 | 57 | ||||||
| IIEES SC | SHRO | Z | IVmB_BB | 2019-07-15 20:53:14 | y | 1 | 667 | 57 | ||||
| IIEES SC | TABS | 2054 | 2019-07-15 20:54:44 | y | 678 | 81 | ||||||
| IIEES SC | GRMI | 2054 | 2019-07-15 20:54:54 | y | 700 | 345 | ||||||
| IIEES SC | MRVT | 2054 | 2019-07-15 20:54:27 | y | 778 | 45 | ||||||
| IIEES SC | SBZV | 2054 | 2019-07-15 20:54:26 | y | 811 | 60 | ||||||
| IIEES SC | BJRD | 2054 | 2019-07-15 20:54:04 | y | 878 | 51 | ||||||
| IIEES SC | AKL | Z | IVmB_BB | 2019-07-15 20:53:27 | y | 1 | 911 | 62 | ||||
