Magnitude |
:4.7 |
| Date & Time (UTC) | 2019-07-16 16:21:08.6 |
| Date & Time (Local) | 1398/4/25 20:51:08.6 |

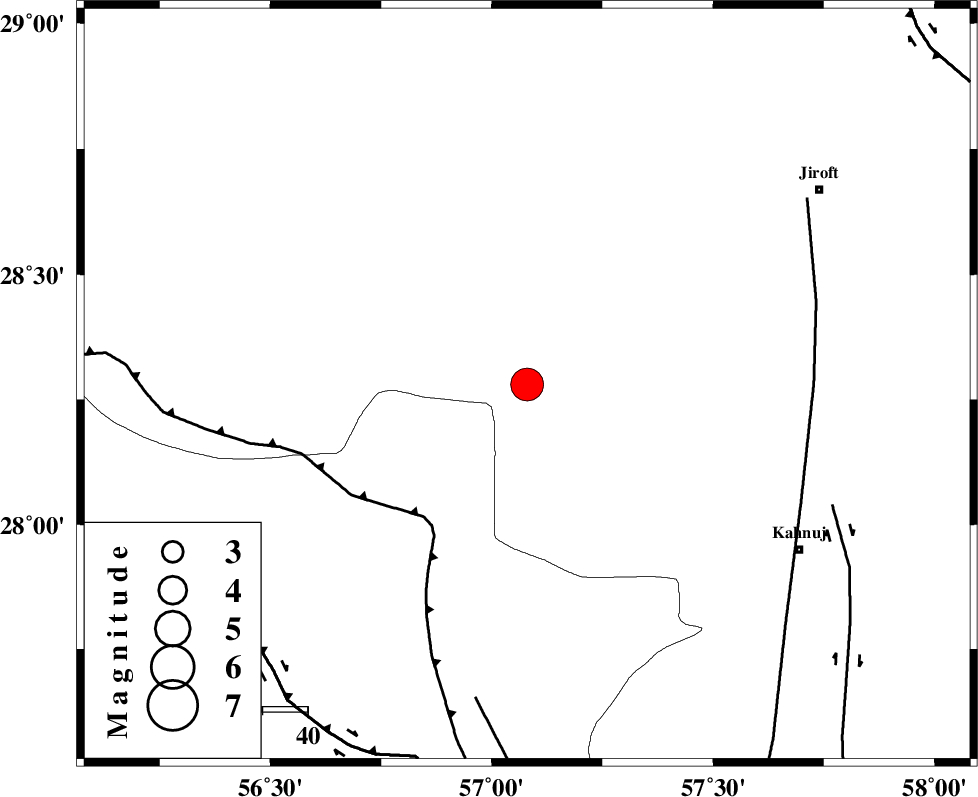

| Location | Lat:28.28 Lon: 57.08 |
| Region | Kerman Province, 71 km North-West of Kahnuj |
Nearest Cities |
|
| 21 km East of Sarkhan, Kerman Province | |
| 25 km North West of Hurpasefid, Kerman Province | |
| 30 km North West of Faryab, Kerman Province | |
| 38 km North West of Mehrueye-e paeen, Kerman Province | |
| 46 km North West of Bolock, Kerman Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 37 km | |
| SABZEVARAN_F (Length: 190 km) , Distance to epicenter: 63 km | |
| ZENDAN_MINAB_F_Z1 (Length: 183 km) , Distance to epicenter: 71 km | |
| Number of Phases | 19 |
| RMS | 0.5 |
| Number of Stations | 11 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 13 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 144296 | IIEES SC | BNDS | Z | 8100 | 1 | 2019-07-16 16:21:52 | 2019-07-16 10:28:00 | n |
| 144297 | IIEES SC | ZHSF | Z | 900 | 1 | 2019-07-16 16:23:10 | 2019-07-16 10:28:00 | n |
| 144298 | IIEES SC | LMD1 | Z | 1100 | 1 | 2019-07-16 16:23:32 | 2019-07-16 10:28:00 | n |
| 144299 | IIEES SC | CHBR | Z | 910 | 1 | 2019-07-16 16:22:31 | 2019-07-16 10:28:00 | n |
| 144300 | IIEES SC | BSRN | Z | 920 | 1 | 2019-07-16 16:23:23 | 2019-07-16 10:28:00 | n |
| 144301 | IIEES SC | TABS | Z | 830 | 1 | 2019-07-16 16:24:15 | 2019-07-16 10:28:00 | n |
| 144302 | IIEES SC | SHRT | Z | 300 | 1 | 2019-07-16 16:24:44 | 2019-07-16 10:28:00 | n |
| 144303 | IIEES SC | SHRO | Z | 130 | 1 | 2019-07-16 16:25:23 | 2019-07-16 10:28:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | BNDS | N | IS | I | 2019-07-16 16:21:48 | 0.8 | y | 133 | 222 | |||
| IIEES SC | BNDS | Z | IP | I | 2019-07-16 16:21:30 | -0.2 | y | 133 | 222 | |||
| IIEES SC | ZHSF | Z | IP | I | 2019-07-16 16:22:05 | 0.3 | y | 389 | 68 | |||
| IIEES SC | LMD1 | Z | IP | I | 2019-07-16 16:22:05 | -1.2 | y | 400 | 255 | |||
| IIEES SC | CHBR | Z | IP | I | 2019-07-16 16:22:12 | -0.3 | y | 455 | 131 | |||
| IIEES SC | BSRN | Z | IP | I | 2019-07-16 16:22:12 | -0.5 | y | 455 | 26 | |||
| IIEES SC | TABS | Z | IP | I | 2019-07-16 16:22:31 | 0.3 | y | 600 | 0 | |||
| IIEES SC | SHRT | Z | IP | I | 2019-07-16 16:22:41 | 1 | y | 667 | 27 | |||
| IIEES SC | SHRO | Z | IP | I | 2019-07-16 16:23:04 | 0.2 | y | 867 | 353 | |||
| IIEES SC | SBZV | Z | IP | I | 2019-07-16 16:23:09 | 0.2 | y | 900 | 3 | |||
| IIEES SC | AKL | Z | IP | I | 2019-07-16 16:23:14 | 1.6 | y | 934 | 10 | |||
| IIEES SC | BNDS | 1621 | 2019-07-16 16:21:57 | y | 133 | 222 | ||||||
| IIEES SC | ZHSF | 1623 | 2019-07-16 16:23:13 | y | 389 | 68 | ||||||
| IIEES SC | LMD1 | 1623 | 2019-07-16 16:23:32 | y | 400 | 255 | ||||||
| IIEES SC | CHBR | 1623 | 2019-07-16 16:23:32 | y | 455 | 131 | ||||||
| IIEES SC | BSRN | 1623 | 2019-07-16 16:23:24 | y | 455 | 26 | ||||||
| IIEES SC | TABS | 1624 | 2019-07-16 16:24:18 | y | 600 | 0 | ||||||
| IIEES SC | SHRT | 1624 | 2019-07-16 16:24:42 | y | 667 | 27 | ||||||
| IIEES SC | SHRO | 1624 | 2019-07-16 16:24:51 | y | 867 | 353 | ||||||
