Magnitude |
:3.5 |
| Date & Time (UTC) | 2019-07-17 22:53:08.2 |
| Date & Time (Local) | 1398/4/27 03:23:08.2 |

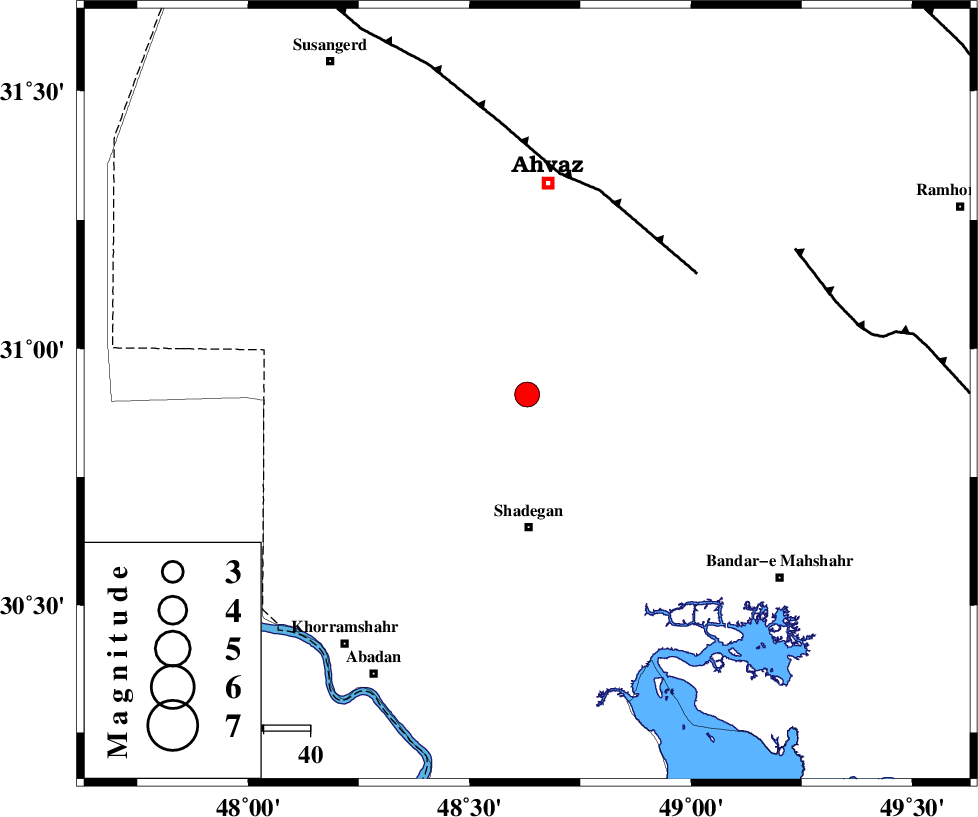

| Location | Lat:30.91 Lon: 48.63 |
| Region | Khoozestan Province, 29 km North of Shadegan |
Nearest Cities |
|
| 20 km North West of Gharibeh, Khoozestan Province | |
| 25 km South of Abunangeh, Khoozestan Province | |
| 27 km North East of Darkhovin, Khoozestan Province | |
| 29 km North of Shadegan, Khoozestan Province | |
| 30 km North of Buzi, Khoozestan Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 45 km | |
| AGHAJARI_F (Length: 88 km) , Distance to epicenter: 66 km | |
| RAG_E_SEFID_F (Length: 84 km) , Distance to epicenter: 116 km | |
| Number of Phases | 18 |
| RMS | 0.3 |
| Number of Stations | 9 |
| Error in Latitude | >4 km |
| Error in Longitude | 0 km |
| Error in Depth | 12 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 144347 | IIEES SC | GTMR | Z | 480 | 1 | 2019-07-17 22:54:00 | 2019-07-20 03:21:00 | n |
| 144348 | IIEES SC | KLNJ | Z | 99 | 1 | 2019-07-17 22:54:40 | 2019-07-20 03:21:00 | n |
| 144349 | IIEES SC | KHMZ | Z | 89 | 1 | 2019-07-17 22:54:48 | 2019-07-20 03:21:00 | n |
| 144350 | IIEES SC | ILBA | Z | 43 | 1 | 2019-07-17 22:55:10 | 2019-07-20 03:21:00 | n |
| 144351 | IIEES SC | ASAO | Z | 34 | 1 | 2019-07-17 22:55:18 | 2019-07-20 03:21:00 | n |
| 144352 | IIEES SC | GHVR | Z | 50 | 1 | 2019-07-17 22:54:28 | 2019-07-20 03:21:00 | n |
| 144353 | IIEES SC | SNGE | Z | 22 | 1 | 2019-07-17 22:55:40 | 2019-07-20 03:21:00 | n |
| 144354 | IIEES SC | KGS1 | Z | 39 | 1 | 2019-07-17 22:55:41 | 2019-07-20 03:21:00 | n |
| 144355 | IIEES SC | YZKH | Z | 15 | 1 | 2019-07-17 22:54:43 | 2019-07-20 03:21:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GTMR | N | IP | I | 2019-07-17 22:53:37 | 0 | y | 177 | 15 | |||
| IIEES SC | KLNJ | Z | IP | I | 2019-07-17 22:53:52 | 0.1 | y | 289 | 88 | |||
| IIEES SC | KHMZ | Z | IP | I | 2019-07-17 22:53:59 | 0.3 | y | 333 | 22 | |||
| IIEES SC | ILBA | Z | IP | I | 2019-07-17 22:54:03 | -0.1 | y | 378 | 323 | |||
| IIEES SC | ASAO | Z | IP | I | 2019-07-17 22:54:09 | 0.2 | y | 422 | 18 | |||
| IIEES SC | GHVR | Z | IP | I | 2019-07-17 22:54:14 | 0.2 | y | 467 | 32 | |||
| IIEES SC | SNGE | Z | IP | I | 2019-07-17 22:54:15 | -0.5 | y | 478 | 346 | |||
| IIEES SC | KGS1 | N | IP | I | 2019-07-17 22:54:17 | 0.1 | y | 489 | 325 | |||
| IIEES SC | YZKH | Z | IP | I | 2019-07-17 22:54:29 | -0.9 | y | 589 | 74 | |||
| IIEES SC | GTMR | 2254 | 2019-07-17 22:54:05 | y | 177 | 15 | ||||||
| IIEES SC | KLNJ | 2254 | 2019-07-17 22:54:42 | y | 289 | 88 | ||||||
| IIEES SC | KHMZ | 2254 | 2019-07-17 22:54:46 | y | 333 | 22 | ||||||
| IIEES SC | ILBA | 2255 | 2019-07-17 22:55:17 | y | 378 | 323 | ||||||
| IIEES SC | ASAO | 2255 | 2019-07-17 22:55:20 | y | 422 | 18 | ||||||
| IIEES SC | GHVR | 2255 | 2019-07-17 22:55:34 | y | 467 | 32 | ||||||
| IIEES SC | SNGE | 2255 | 2019-07-17 22:55:22 | y | 478 | 346 | ||||||
| IIEES SC | KGS1 | 2255 | 2019-07-17 22:55:28 | y | 489 | 325 | ||||||
| IIEES SC | YZKH | 2255 | 2019-07-17 22:55:16 | y | 589 | 74 | ||||||
