Magnitude |
:2.8 |
| Date & Time (UTC) | 2019-07-20 16:50:47.8 |
| Date & Time (Local) | 1398/4/29 21:20:47.8 |

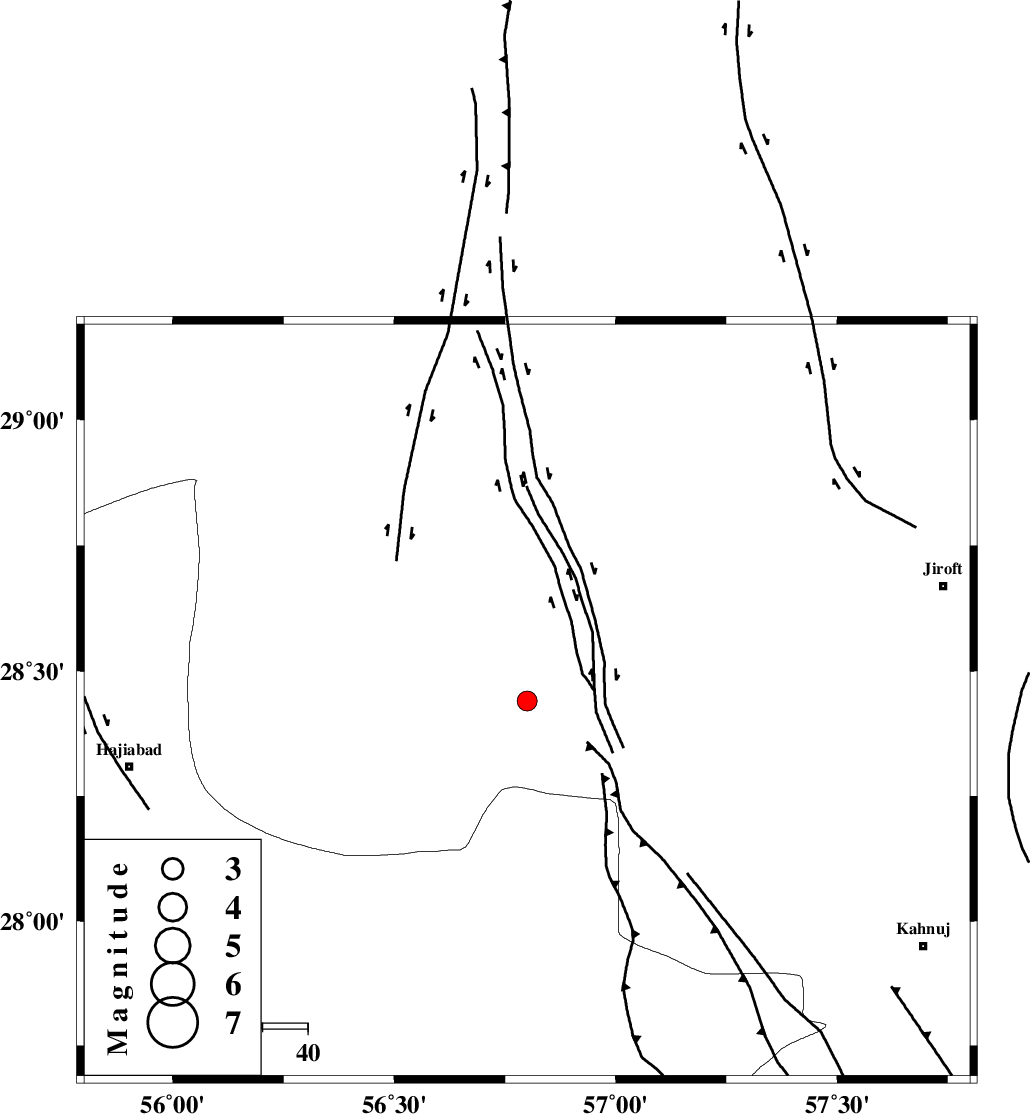

| Location | Lat:28.44 Lon: 56.8 |
| Region | Kerman Province, 90 km South-East of Baft |
Nearest Cities |
|
| 13 km North of Sarkhan, Kerman Province | |
| 41 km East of Shahmaran, Kerman Province | |
| 41 km South West of Dolatabad, Kerman Province | |
| 43 km North East of Arzuieeh, Kerman Province | |
| 57 km North West of Hurpasefid, Kerman Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 40 km | |
| HZF2 (Length: 437 km) , Distance to epicenter: 82 km | |
| ZENDAN_MINAB_F_Z1 (Length: 183 km) , Distance to epicenter: 89 km | |
| Number of Phases | 12 |
| RMS | 0.4 |
| Number of Stations | 6 |
| Error in Latitude | >1 km |
| Error in Longitude | 0 km |
| Error in Depth | 3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 144431 | IIEES SC | BNDS | Z | 150 | 1 | 2019-07-20 16:51:31 | 2019-07-22 12:07:00 | n |
| 144432 | IIEES SC | KRBR | Z | 79 | 1 | 2019-07-20 16:51:43 | 2019-07-22 12:07:00 | n |
| 144433 | IIEES SC | GHIR | Z | 5.6 | 1 | 2019-07-20 16:53:14 | 2019-07-22 12:07:00 | n |
| 144434 | IIEES SC | BSRN | Z | 9.5 | 1 | 2019-07-20 16:53:00 | 2019-07-22 12:07:00 | n |
| 144435 | IIEES SC | YZKH | Z | 12 | 1 | 2019-07-20 16:53:38 | 2019-07-22 12:07:00 | n |
| 144436 | IIEES SC | KLNJ | Z | 14 | 1 | 2019-07-20 16:52:31 | 2019-07-22 12:07:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | BNDS | Z | IP | I | 2019-07-20 16:51:09 | 0.2 | y | 133 | 208 | |||
| IIEES SC | KRBR | Z | IP | I | 2019-07-20 16:51:17 | 1.1 | y | 166 | 359 | |||
| IIEES SC | GHIR | N | IP | I | 2019-07-20 16:51:41 | -0.3 | y | 378 | 267 | |||
| IIEES SC | BSRN | Z | IP | I | 2019-07-20 16:51:51 | -0.3 | y | 455 | 30 | |||
| IIEES SC | YZKH | Z | IP | I | 2019-07-20 16:51:56 | 0.4 | y | 489 | 334 | |||
| IIEES SC | KLNJ | Z | IP | I | 2019-07-20 16:52:07 | 0 | y | 578 | 300 | |||
| IIEES SC | BNDS | 1651 | 2019-07-20 16:51:29 | y | 133 | 208 | ||||||
| IIEES SC | KRBR | 1651 | 2019-07-20 16:51:45 | y | 166 | 359 | ||||||
| IIEES SC | GHIR | 1653 | 2019-07-20 16:53:11 | y | 378 | 267 | ||||||
| IIEES SC | BSRN | 1653 | 2019-07-20 16:53:07 | y | 455 | 30 | ||||||
| IIEES SC | YZKH | 1652 | 2019-07-20 16:52:58 | y | 489 | 334 | ||||||
| IIEES SC | KLNJ | 1652 | 2019-07-20 16:52:50 | y | 578 | 300 | ||||||
