Magnitude |
:3.4 |
| Date & Time (UTC) | 2019-07-20 19:49:24.5 |
| Date & Time (Local) | 1398/4/30 00:19:24.5 |
| Location | Lat:29.03 Lon: 53.99 |
| Region | Fars Province, 13 km South of Estahban |
Nearest Cities |
|
| 10 km North of Sheshdah, Fars Province | |
| 13 km South of Estahban, Fars Province | |
| 18 km North West of Dogan, Fars Province | |
| 25 km North West of Eech, Fars Province | |
| 26 km North East of Nobandegan, Fars Province | |
| Depth | 10 km |
| Agency | |

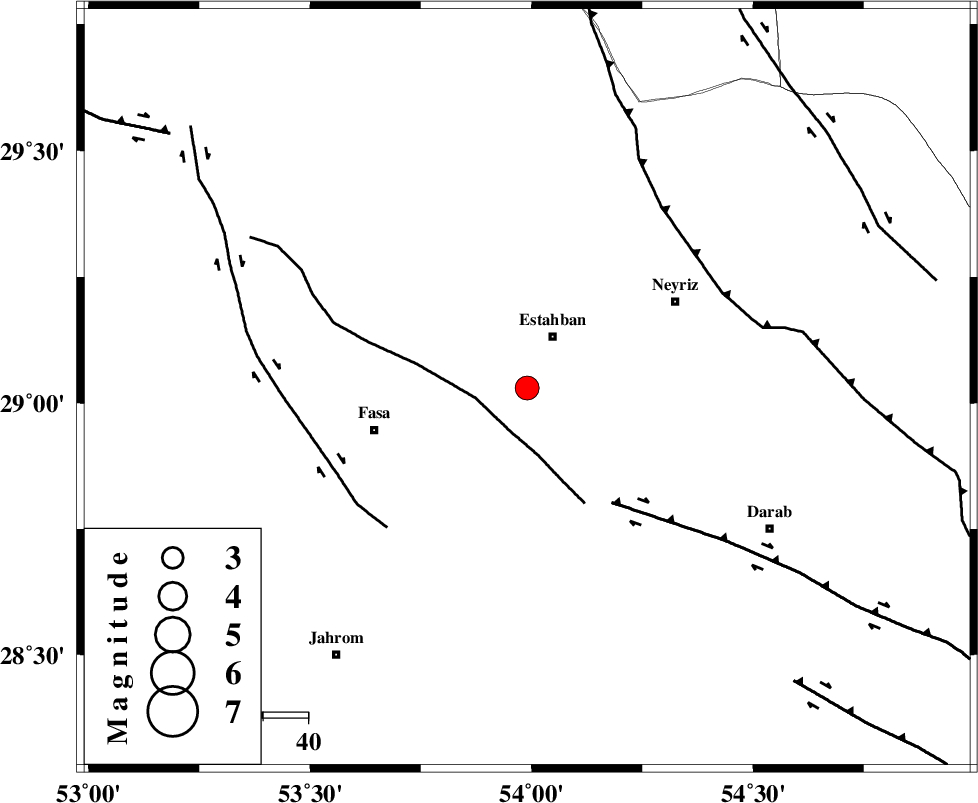

Faults within 150 km: |
|
| BAKHTEGAN_F (Length: 94 km) , Distance to epicenter: 10 km | |
| HZF1 (Length: 102 km) , Distance to epicenter: 31 km | |
| SARVESTAN_F (Length: 94 km) , Distance to epicenter: 44 km | |
| Number of Phases | 18 |
| RMS | 0.7 |
| Number of Stations | 9 |
| Error in Latitude | >5 km |
| Error in Longitude | 0 km |
| Error in Depth | 32 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 144463 | IIEES SC | GHIR | Z | 220 | 1 | 2019-07-20 19:50:09 | 2019-07-22 05:42:00 | n |
| 144464 | IIEES SC | LMD1 | Z | 680 | 1 | 2019-07-20 19:50:32 | 2019-07-22 05:42:00 | n |
| 144465 | IIEES SC | BNDS | Z | 160 | 1 | 2019-07-20 19:51:01 | 2019-07-22 05:42:00 | n |
| 144466 | IIEES SC | KRBR | Z | 180 | 1 | 2019-07-20 19:51:03 | 2019-07-22 05:42:00 | n |
| 144467 | IIEES SC | KLNJ | Z | 130 | 1 | 2019-07-20 19:51:14 | 2019-07-22 05:42:00 | n |
| 144468 | IIEES SC | YZKH | Z | 67 | 1 | 2019-07-20 19:51:16 | 2019-07-22 05:42:00 | n |
| 144469 | IIEES SC | TABS | Z | 72 | 1 | 2019-07-20 19:52:35 | 2019-07-22 05:42:00 | n |
| 144470 | IIEES SC | ZHSF | Z | 14 | 1 | 2019-07-20 19:52:56 | 2019-07-22 05:42:00 | n |
| 144471 | IIEES SC | GLO | Z | 25 | 1 | 2019-07-20 19:51:19 | 2019-07-22 05:42:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GHIR | Z | IP | I | 2019-07-20 19:49:46 | 0.7 | y | 133 | 230 | |||
| IIEES SC | LMD1 | Z | IP | I | 2019-07-20 19:49:56 | -1 | y | 200 | 203 | |||
| IIEES SC | BNDS | Z | IP | I | 2019-07-20 19:50:08 | 0.3 | y | 278 | 130 | |||
| IIEES SC | KRBR | Z | IP | I | 2019-07-20 19:50:07 | -1.1 | y | 289 | 69 | |||
| IIEES SC | KLNJ | Z | IP | I | 2019-07-20 19:50:12 | 0.1 | y | 322 | 313 | |||
| IIEES SC | YZKH | Z | IP | I | 2019-07-20 19:50:19 | -0.1 | y | 378 | 9 | |||
| IIEES SC | TABS | N | IP | I | 2019-07-20 19:50:44 | -1.4 | y | 589 | 30 | |||
| IIEES SC | ZHSF | Z | IP | I | 2019-07-20 19:50:56 | 1.1 | y | 667 | 84 | |||
| IIEES SC | GLO | Z | IP | I | 2019-07-20 19:51:16 | 0.6 | y | 834 | 359 | |||
| IIEES SC | GHIR | 1950 | 2019-07-20 19:50:32 | y | 133 | 230 | ||||||
| IIEES SC | LMD1 | 1950 | 2019-07-20 19:50:31 | y | 200 | 203 | ||||||
| IIEES SC | BNDS | 1950 | 2019-07-20 19:50:47 | y | 278 | 130 | ||||||
| IIEES SC | KRBR | 1950 | 2019-07-20 19:50:53 | y | 289 | 69 | ||||||
| IIEES SC | KLNJ | 1951 | 2019-07-20 19:51:25 | y | 322 | 313 | ||||||
| IIEES SC | YZKH | 1951 | 2019-07-20 19:51:52 | y | 378 | 9 | ||||||
| IIEES SC | TABS | 1952 | 2019-07-20 19:52:28 | y | 589 | 30 | ||||||
| IIEES SC | ZHSF | 1952 | 2019-07-20 19:52:03 | y | 667 | 84 | ||||||
| IIEES SC | GLO | 1951 | 2019-07-20 19:51:38 | y | 834 | 359 | ||||||
