Magnitude |
:3.3 |
| Date & Time (UTC) | 2019-07-27 14:38:54.3 |
| Date & Time (Local) | 1398/5/5 19:08:54.3 |

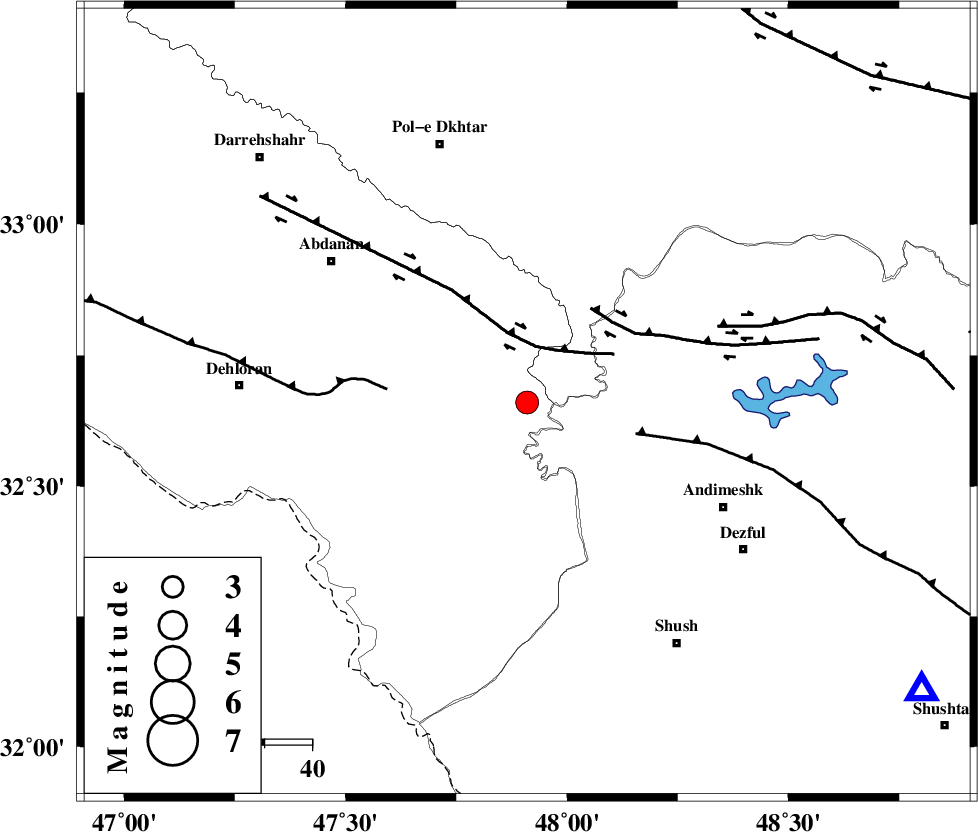

| Location | Lat:32.66 Lon: 47.91 |
| Region | Ilam Province, 47 km North-West of Andimeshk |
Nearest Cities |
|
| 32 km West of Hoseinieh, Khoozestan Province | |
| 32 km West of Bidruyeh, Khoozestan Province | |
| 41 km South West of Sorkhakan, Khoozestan Province | |
| 42 km South East of Sarabbagh, Ilam Province | |
| 47 km North West of Andimeshk, Khoozestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 12 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 24 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 24 km | |
| Number of Phases | 10 |
| RMS | 0.5 |
| Number of Stations | 5 |
| Error in Latitude | >9 km |
| Error in Longitude | 0 km |
| Error in Depth | 24 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 144618 | IIEES SC | GTMR | Z | 440 | 1 | 2019-07-27 14:39:33 | 2019-07-29 08:50:00 | n |
| 144619 | IIEES SC | KHMZ | Z | 160 | 1 | 2019-07-27 14:40:05 | 2019-07-29 08:50:00 | n |
| 144620 | IIEES SC | ASAO | Z | 83 | 1 | 2019-07-27 14:40:25 | 2019-07-29 08:50:00 | n |
| 144621 | IIEES SC | KGS1 | Z | 210 | 1 | 2019-07-27 14:40:47 | 2019-07-29 08:50:00 | n |
| 144622 | IIEES SC | KLNJ | Z | 36 | 1 | 2019-07-27 14:41:07 | 2019-07-29 08:50:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GTMR | N | IP | I | 2019-07-27 14:39:12 | -0.6 | y | 111 | 101 | |||
| IIEES SC | KHMZ | Z | IP | I | 2019-07-27 14:39:29 | -0.5 | y | 222 | 58 | |||
| IIEES SC | ASAO | Z | IP | I | 2019-07-27 14:39:38 | 0.7 | y | 289 | 43 | |||
| IIEES SC | KGS1 | Z | IP | I | 2019-07-27 14:39:38 | -0.1 | y | 300 | 313 | |||
| IIEES SC | KLNJ | N | IP | I | 2019-07-27 14:39:52 | 1.4 | y | 389 | 118 | |||
| IIEES SC | GTMR | 1439 | 2019-07-27 14:39:35 | y | 111 | 101 | ||||||
| IIEES SC | KHMZ | 1440 | 2019-07-27 14:40:04 | y | 222 | 58 | ||||||
| IIEES SC | ASAO | 1440 | 2019-07-27 14:40:20 | y | 289 | 43 | ||||||
| IIEES SC | KGS1 | 1440 | 2019-07-27 14:40:30 | y | 300 | 313 | ||||||
| IIEES SC | KLNJ | 1441 | 2019-07-27 14:41:03 | y | 389 | 118 | ||||||
