Magnitude |
:3.2 |
| Date & Time (UTC) | 2019-07-28 16:30:40.1 |
| Date & Time (Local) | 1398/5/6 21:00:40.1 |

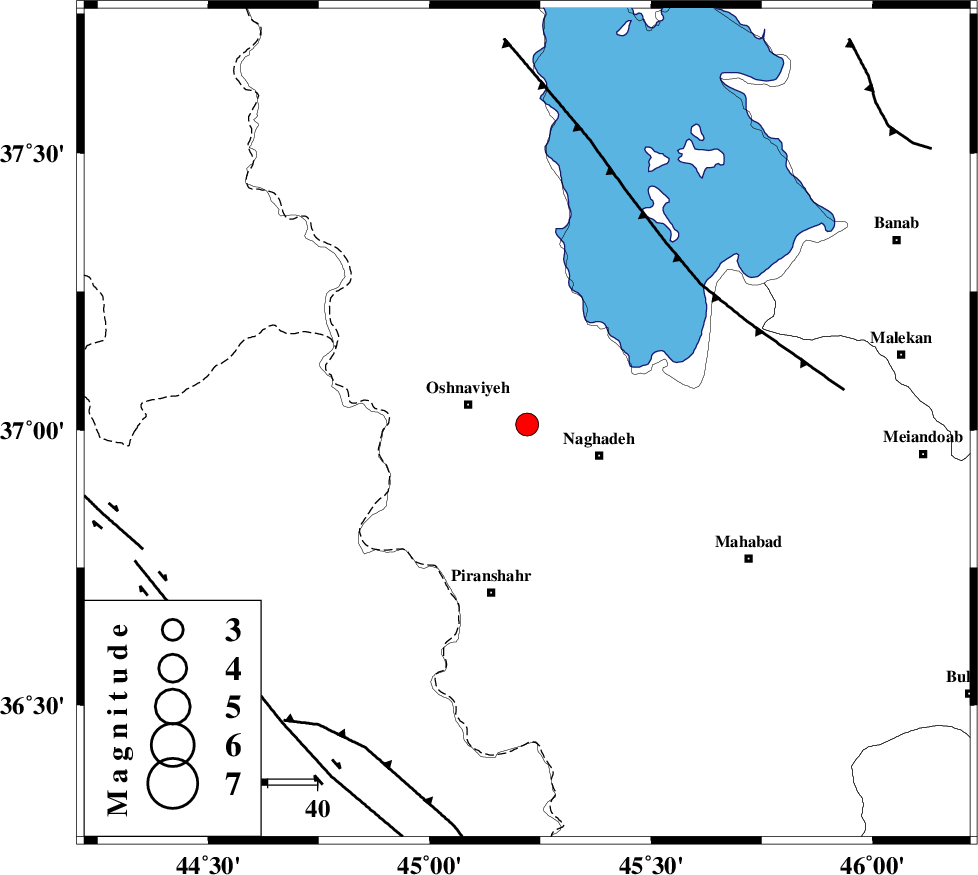

| Location | Lat:37.01 Lon: 45.22 |
| Region | Azarbaijan Gharbi Province, 12 km -East of Oshnaviyeh |
Nearest Cities |
|
| 8 km North of Mirabad, Azarbaijan Gharbi Province | |
| 8 km North of Nalus, Azarbaijan Gharbi Province | |
| 12 km East of Oshnaviyeh, Azarbaijan Gharbi Province | |
| 16 km North West of Naqadeh, Azarbaijan Gharbi Province | |
| 20 km South East of Aghbelagh, Azarbaijan Gharbi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| PIRANSHAHR_F (Length: 253 km) , Distance to epicenter: 41 km | |
| SALMAS (Length: 20 km) , Distance to epicenter: 121 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 133 km | |
| Number of Phases | 12 |
| RMS | 1.4 |
| Number of Stations | 6 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 14 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 144623 | IIEES SC | MAHB | Z | 670 | 1 | 2019-07-28 16:31:05 | 2019-07-29 08:37:00 | n |
| 144624 | IIEES SC | SRSL | Z | 260 | 1 | 2019-07-28 16:31:16 | 2019-07-29 08:37:00 | n |
| 144625 | IIEES SC | AZR | Z | 1300 | 1 | 2019-07-28 16:31:13 | 2019-07-29 08:37:00 | n |
| 144626 | IIEES SC | KGS1 | Z | 150 | 1 | 2019-07-28 16:32:00 | 2019-07-29 08:37:00 | n |
| 144627 | IIEES SC | GRMI | Z | 31 | 1 | 2019-07-28 16:32:20 | 2019-07-29 08:37:00 | n |
| 144628 | IIEES SC | ZNJK | Z | 19 | 1 | 2019-07-28 16:32:19 | 2019-07-29 08:37:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | MAHB | Z | IP | I | 2019-07-28 16:30:49 | -0.3 | y | 55 | 122 | |||
| IIEES SC | SRSL | N | IP | I | 2019-07-28 16:30:54 | -0.9 | y | 88 | 168 | |||
| IIEES SC | AZR | Z | IP | I | 2019-07-28 16:30:55 | -2.3 | y | 100 | 42 | |||
| IIEES SC | KGS1 | Z | IP | I | 2019-07-28 16:31:22 | 0.4 | y | 278 | 173 | |||
| IIEES SC | GRMI | Z | IP | I | 2019-07-28 16:31:28 | 2 | y | 311 | 50 | |||
| IIEES SC | ZNJK | Z | IP | I | 2019-07-28 16:31:28 | 1.5 | y | 311 | 97 | |||
| IIEES SC | MAHB | 1631 | 2019-07-28 16:31:03 | y | 55 | 122 | ||||||
| IIEES SC | SRSL | 1631 | 2019-07-28 16:31:15 | y | 88 | 168 | ||||||
| IIEES SC | AZR | 1631 | 2019-07-28 16:31:16 | y | 100 | 42 | ||||||
| IIEES SC | KGS1 | 1632 | 2019-07-28 16:32:06 | y | 278 | 173 | ||||||
| IIEES SC | GRMI | 1632 | 2019-07-28 16:32:19 | y | 311 | 50 | ||||||
| IIEES SC | ZNJK | 1632 | 2019-07-28 16:32:19 | y | 311 | 97 | ||||||
