Magnitude |
:3.2 |
| Date & Time (UTC) | 2019-07-16 14:03:27.0 |
| Date & Time (Local) | 1398/4/25 18:33:27.0 |

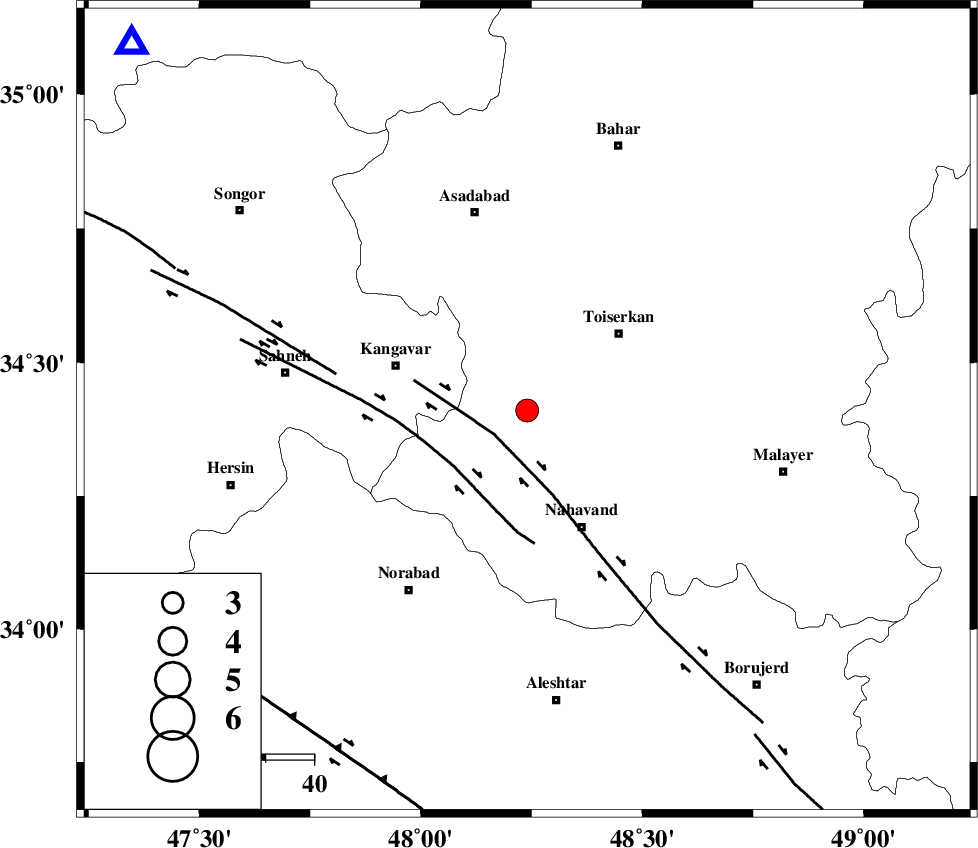

| Location | Lat:34.41 Lon: 48.24 |
| Region | Hamedan Province, 27 km North-West of Nahavand |
Nearest Cities |
|
| 9 km North of Firuzan, Hamedan Province | |
| 9 km of Farsang, Hamedan Province | |
| 17 km North West of Miyandeh, Hamedan Province | |
| 17 km North of Shahrak, Hamedan Province | |
| 19 km South East of Gudin, Kermanshah Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| NAHAVAND_F (Length: 102 km) , Distance to epicenter: 8 km | |
| SAHANEH_F (Length: 77 km) , Distance to epicenter: 19 km | |
| DINEHVAR_F (Length: 46 km) , Distance to epicenter: 40 km | |
| Number of Phases | 16 |
| RMS | 0.6 |
| Number of Stations | 9 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 10 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 144659 | IIEES SC | SNGE | Z | 570 | 1 | 2019-07-16 14:04:04 | 2019-08-03 04:59:00 | n |
| 144660 | IIEES SC | ASAO | Z | 500 | 1 | 2019-07-16 14:04:24 | 2019-08-03 04:59:00 | n |
| 144661 | IIEES SC | KHMZ | Z | 640 | 1 | 2019-07-16 14:04:25 | 2019-08-03 04:59:00 | n |
| 144662 | IIEES SC | ILBA | Z | 280 | 1 | 2019-07-16 14:04:32 | 2019-08-03 04:59:00 | n |
| 144663 | IIEES SC | GTMR | Z | 310 | 1 | 2019-07-16 14:04:39 | 2019-08-03 04:59:00 | n |
| 144664 | IIEES SC | KGS1 | Z | 700 | 1 | 2019-07-16 14:04:10 | 2019-08-03 04:59:00 | n |
| 144665 | IIEES SC | DAMV | Z | 47 | 1 | 2019-07-16 14:05:26 | 2019-08-03 04:59:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | SNGE | N | IS | I | 2019-07-16 14:04:00 | -0.3 | y | 111 | 313 | |||
| IIEES SC | SNGE | Z | IP | I | 2019-07-16 14:03:46 | 0.2 | y | 111 | 313 | |||
| IIEES SC | ASAO | N | IS | I | 2019-07-16 14:04:14 | -0.1 | y | 166 | 85 | |||
| IIEES SC | ASAO | Z | IP | I | 2019-07-16 14:03:54 | 0 | y | 166 | 85 | |||
| IIEES SC | KHMZ | Z | IP | I | 2019-07-16 14:03:55 | -0.9 | y | 177 | 115 | |||
| IIEES SC | ILBA | Z | IP | I | 2019-07-16 14:04:00 | -0.6 | y | 211 | 245 | |||
| IIEES SC | GTMR | Z | IP | I | 2019-07-16 14:04:04 | 0.7 | y | 233 | 159 | |||
| IIEES SC | KGS1 | Z | IP | I | 2019-07-16 14:04:05 | 0.5 | y | 244 | 272 | |||
| IIEES SC | DAMV | Z | IP | I | 2019-07-16 14:04:22 | 1.6 | y | 366 | 68 | |||
| IIEES SC | SNGE | 14 | 2019-07-16 14:04:05 | y | 111 | 313 | ||||||
| IIEES SC | ASAO | 14 | 2019-07-16 14:04:18 | y | 166 | 85 | ||||||
| IIEES SC | KHMZ | 14 | 2019-07-16 14:04:24 | y | 177 | 115 | ||||||
| IIEES SC | ILBA | 14 | 2019-07-16 14:04:30 | y | 211 | 245 | ||||||
| IIEES SC | GTMR | 14 | 2019-07-16 14:04:42 | y | 233 | 159 | ||||||
| IIEES SC | KGS1 | 14 | 2019-07-16 14:04:43 | y | 244 | 272 | ||||||
| IIEES SC | DAMV | 14 | 2019-07-16 14:05:55 | y | 366 | 68 | ||||||
