Magnitude |
:3.5 |
| Date & Time (UTC) | 2019-08-24 13:48:48.3 |
| Date & Time (Local) | 1398/6/2 18:18:48.3 |

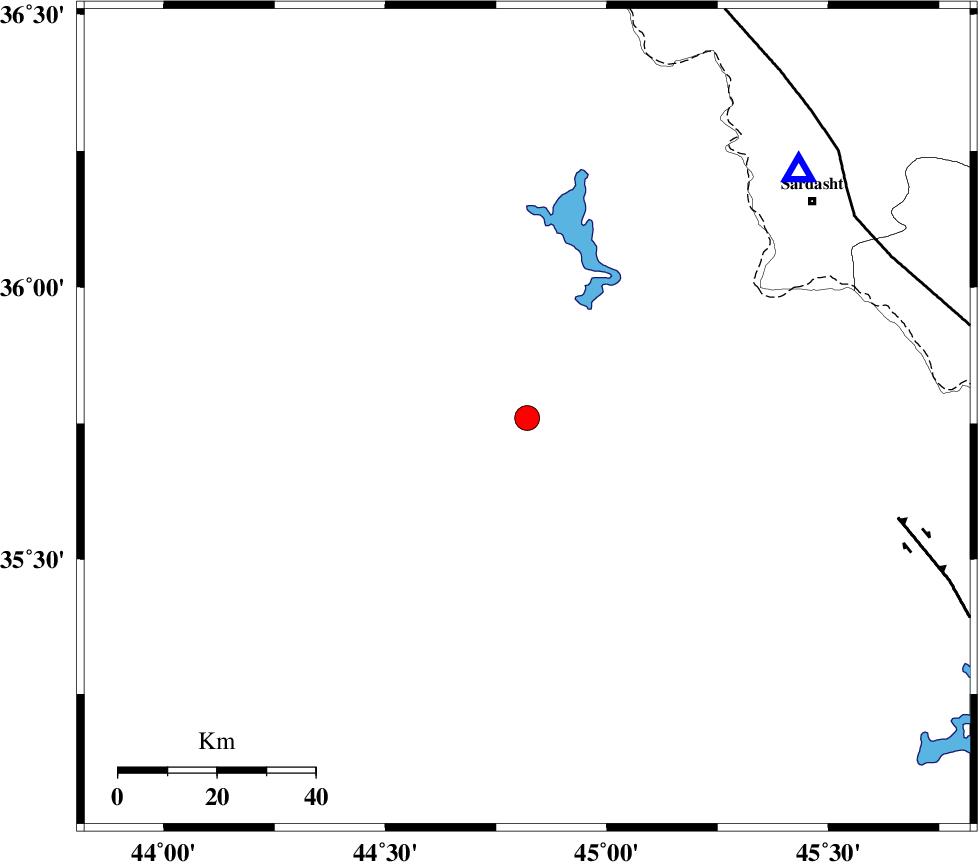

| Location | Lat:35.76 Lon: 44.82 |
| Region | Iraq, 60 km North-West of Sulaymaniyah |
Nearest Cities |
|
| 60 km North West of Sulaymaniyah, Iraq Province | |
| 68 km South West of Bivaran-e sofla, Azarbaijan Gharbi Province | |
| 73 km South West of Sardasht, Azarbaijan Gharbi Province | |
| 78 km South West of Bersiv, Azarbaijan Gharbi Province | |
| 82 km South West of Felas, Azarbaijan Gharbi Province | |
| Depth | 9 km |
| Agency | |
Faults within 150 km: |
|
| PIRANSHAHR_F (Length: 253 km) , Distance to epicenter: 78 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 78 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 140 km | |
| Number of Phases | 15 |
| RMS | 0.9 |
| Number of Stations | 8 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 15 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 144940 | IIEES SC | SRSL | Z | 1900 | 1 | 2019-08-24 13:49:14 | 2019-08-25 08:34:00 | n |
| 144941 | IIEES SC | MAHB | Z | 920 | 1 | 2019-08-24 13:49:33 | 2019-08-25 08:34:00 | n |
| 144942 | IIEES SC | KGS1 | Z | 920 | 1 | 2019-08-24 13:49:39 | 2019-08-25 08:34:00 | n |
| 144943 | IIEES SC | AZR | Z | 810 | 1 | 2019-08-24 13:50:06 | 2019-08-25 08:34:00 | n |
| 144944 | IIEES SC | ILBA | Z | 100 | 1 | 2019-08-24 13:50:24 | 2019-08-25 08:34:00 | n |
| 144945 | IIEES SC | ZNJK | Z | 31 | 1 | 2019-08-24 13:50:39 | 2019-08-25 08:34:00 | n |
| 144946 | IIEES SC | GTMR | Z | 30 | 1 | 2019-08-24 13:51:43 | 2019-08-25 08:34:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | SRSL | Z | IP | I | 2019-08-24 13:49:01 | -0.4 | y | 77 | 48 | |||
| IIEES SC | MAHB | Z | IP | I | 2019-08-24 13:49:11 | -0.2 | y | 133 | 35 | |||
| IIEES SC | KGS1 | Z | IP | I | 2019-08-24 13:49:15 | 0.9 | y | 155 | 153 | |||
| IIEES SC | AZR | Z | IP | I | 2019-08-24 13:49:26 | 0.3 | y | 233 | 26 | |||
| IIEES SC | ILBA | Z | IP | I | 2019-08-24 13:49:29 | -1 | y | 266 | 152 | |||
| IIEES SC | ZNJK | Z | IP | I | 2019-08-24 13:49:44 | 2.9 | y | 366 | 74 | |||
| IIEES SC | MAKU | N | IP | I | 2019-08-24 13:49:46 | -0.1 | y | 400 | 358 | |||
| IIEES SC | GTMR | Z | IP | I | 2019-08-24 13:50:02 | -0.7 | y | 533 | 133 | |||
| IIEES SC | SRSL | 1349 | 2019-08-24 13:49:15 | y | 77 | 48 | ||||||
| IIEES SC | MAHB | 1349 | 2019-08-24 13:49:34 | y | 133 | 35 | ||||||
| IIEES SC | KGS1 | 1349 | 2019-08-24 13:49:38 | y | 155 | 153 | ||||||
| IIEES SC | AZR | 1350 | 2019-08-24 13:50:13 | y | 233 | 26 | ||||||
| IIEES SC | ILBA | 1350 | 2019-08-24 13:50:49 | y | 266 | 152 | ||||||
| IIEES SC | ZNJK | 1350 | 2019-08-24 13:50:46 | y | 366 | 74 | ||||||
| IIEES SC | GTMR | 1351 | 2019-08-24 13:51:40 | y | 533 | 133 | ||||||
