Magnitude |
:3.2 |
| Date & Time (UTC) | 2019-08-26 20:44:05.2 |
| Date & Time (Local) | 1398/6/5 01:14:05.2 |

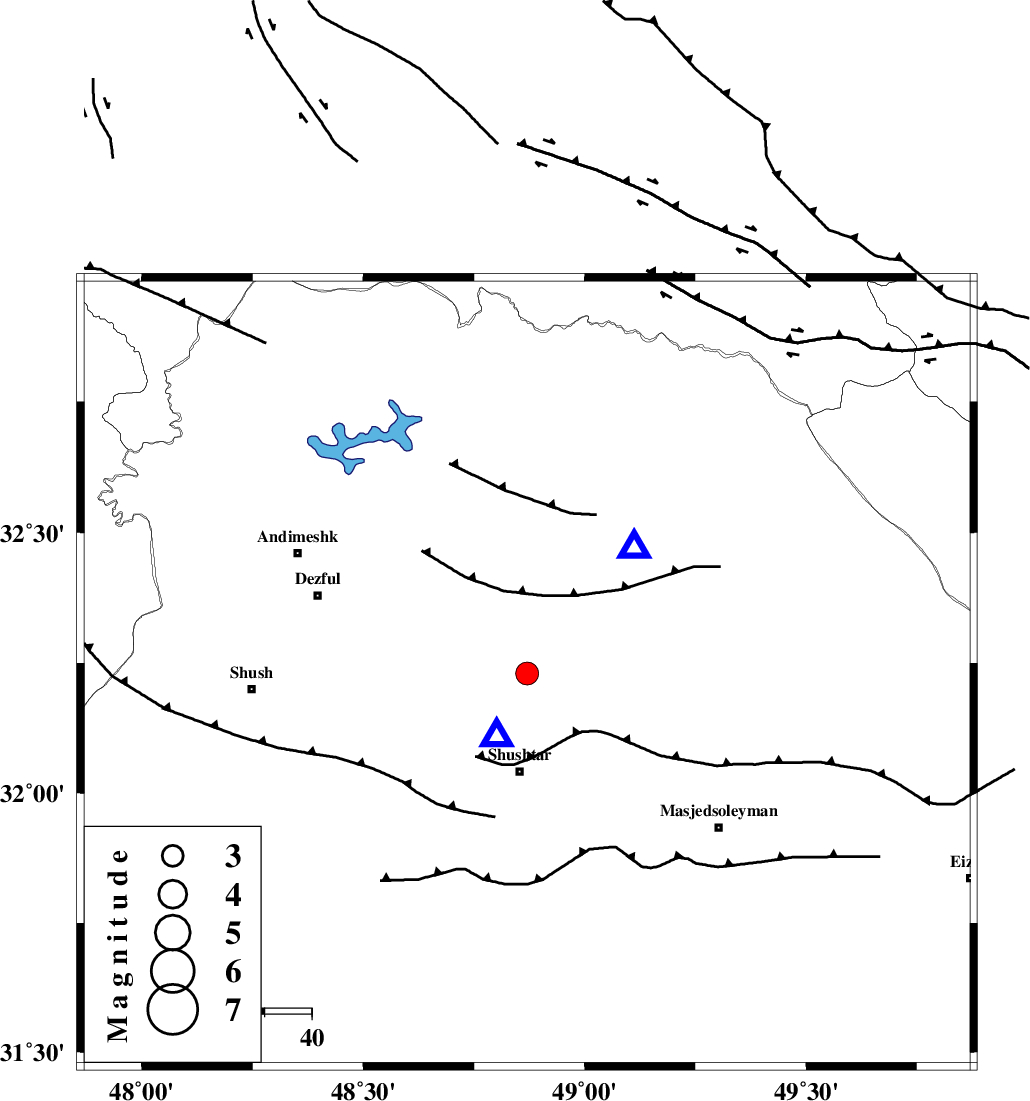

| Location | Lat:32.23 Lon: 48.87 |
| Region | Khoozestan Province, 21 km North of Shushtar |
Nearest Cities |
|
| 4 km North of Samaleh, Khoozestan Province | |
| 6 km of Gatvand, Khoozestan Province | |
| 21 km North of Shushtar, Khoozestan Province | |
| 21 km North West of Haft shahidan, Khoozestan Province | |
| 24 km West of Jaefarabad, Khoozestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 5 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 45 km | |
| BALARUD_F_Z2 (Length: 58 km) , Distance to epicenter: 51 km | |
| Number of Phases | 16 |
| RMS | 0.7 |
| Number of Stations | 8 |
| Error in Latitude | >4 km |
| Error in Longitude | 0 km |
| Error in Depth | 9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 144957 | IIEES SC | GTMR | Z | 6500 | 1 | 2019-08-26 20:44:15 | 2019-08-27 08:42:00 | n |
| 144958 | IIEES SC | KHMZ | Z | 180 | 1 | 2019-08-26 20:45:03 | 2019-08-27 08:42:00 | n |
| 144959 | IIEES SC | ASAO | Z | 120 | 1 | 2019-08-26 20:45:37 | 2019-08-27 08:42:00 | n |
| 144960 | IIEES SC | KLNJ | Z | 64 | 1 | 2019-08-26 20:45:39 | 2019-08-27 08:42:00 | n |
| 144961 | IIEES SC | ILBA | Z | 64 | 1 | 2019-08-26 20:45:49 | 2019-08-27 08:42:00 | n |
| 144962 | IIEES SC | GHVR | Z | 81 | 1 | 2019-08-26 20:45:03 | 2019-08-27 08:42:00 | n |
| 144963 | IIEES SC | NASN | Z | 28 | 1 | 2019-08-26 20:45:59 | 2019-08-27 08:42:00 | n |
| 144964 | IIEES SC | CHTH | Z | 16 | 1 | 2019-08-26 20:45:36 | 2019-08-27 08:42:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GTMR | Z | IP | I | 2019-08-26 20:44:10 | -1.6 | y | 33 | 41 | |||
| IIEES SC | KHMZ | Z | IP | I | 2019-08-26 20:44:37 | 0.2 | y | 200 | 32 | |||
| IIEES SC | ASAO | Z | IP | I | 2019-08-26 20:44:48 | 0.6 | y | 278 | 23 | |||
| IIEES SC | KLNJ | N | IP | I | 2019-08-26 20:44:49 | -0.1 | y | 289 | 118 | |||
| IIEES SC | ILBA | Z | IP | I | 2019-08-26 20:44:49 | -0.2 | y | 289 | 302 | |||
| IIEES SC | GHVR | Z | IP | I | 2019-08-26 20:44:55 | 1.2 | y | 333 | 42 | |||
| IIEES SC | NASN | N | IP | I | 2019-08-26 20:45:00 | 0.2 | y | 378 | 80 | |||
| IIEES SC | CHTH | Z | IP | I | 2019-08-26 20:45:09 | -0.5 | y | 455 | 27 | |||
| IIEES SC | GTMR | 2044 | 2019-08-26 20:44:15 | y | 33 | 41 | ||||||
| IIEES SC | KHMZ | 2045 | 2019-08-26 20:45:06 | y | 200 | 32 | ||||||
| IIEES SC | ASAO | 2045 | 2019-08-26 20:45:29 | y | 278 | 23 | ||||||
| IIEES SC | KLNJ | 2045 | 2019-08-26 20:45:37 | y | 289 | 118 | ||||||
| IIEES SC | ILBA | 2045 | 2019-08-26 20:45:51 | y | 289 | 302 | ||||||
| IIEES SC | GHVR | 2045 | 2019-08-26 20:45:45 | y | 333 | 42 | ||||||
| IIEES SC | NASN | 2046 | 2019-08-26 20:46:02 | y | 378 | 80 | ||||||
| IIEES SC | CHTH | 2046 | 2019-08-26 20:46:43 | y | 455 | 27 | ||||||
