Magnitude |
:4.1 |
| Date & Time (UTC) | 2019-09-11 17:02:29.3 |
| Date & Time (Local) | 1398/6/20 21:32:29.3 |

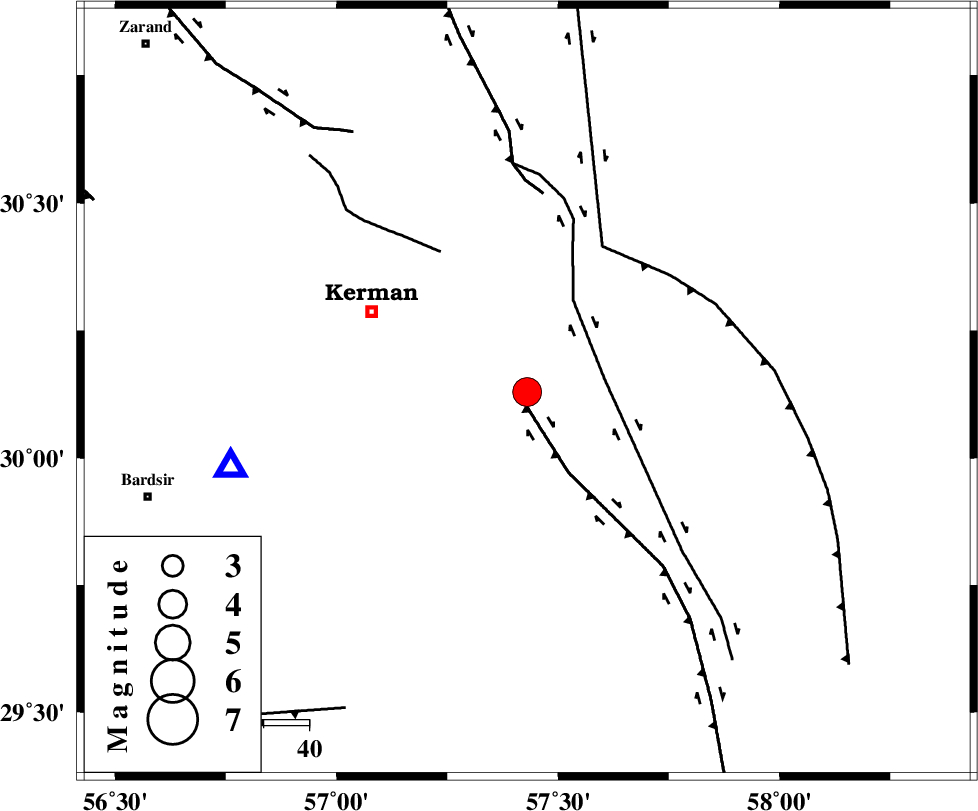

| Location | Lat:30.13 Lon: 57.43 |
| Region | Kerman Province, 38 km South-East of Kerman |
Nearest Cities |
|
| 15 km West of Sirch, Kerman Province | |
| 16 km North East of Mahan, Kerman Province | |
| 16 km North East of Langar, Kerman Province | |
| 19 km North West of Jushan, Kerman Province | |
| 20 km North East of Mohiabad, Kerman Province | |
| Depth | 25 km |
| Agency | |
Faults within 150 km: |
|
| GOWK_F (Length: 152 km) , Distance to epicenter: 3 km | |
| GOLBAF_SIRCH_F (Length: 114 km) , Distance to epicenter: 17 km | |
| NAYBAND_F (Length: 258 km) , Distance to epicenter: 36 km | |
| Number of Phases | 22 |
| RMS | 0.9 |
| Number of Stations | 13 |
| Error in Latitude | >3 km |
| Error in Longitude | 0 km |
| Error in Depth | 7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 145278 | IIEES SC | KRBR | Z | 9600 | 1 | 2019-09-11 17:02:52 | 2019-09-11 10:09:00 | n |
| 145279 | IIEES SC | BNDS | Z | 540 | 1 | 2019-09-11 17:03:22 | 2019-09-11 10:09:00 | n |
| 145280 | IIEES SC | ZHSF | Z | 680 | 1 | 2019-09-11 17:04:02 | 2019-09-11 10:09:00 | n |
| 145281 | IIEES SC | YZKH | Z | 540 | 1 | 2019-09-11 17:04:18 | 2019-09-11 10:09:00 | n |
| 145282 | IIEES SC | TABS | Z | 750 | 1 | 2019-09-11 17:04:30 | 2019-09-11 10:09:00 | n |
| 145283 | IIEES SC | SHRT | Z | 130 | 1 | 2019-09-11 17:04:57 | 2019-09-11 10:09:00 | n |
| 145284 | IIEES SC | TBJM | Z | 43 | 1 | 2019-09-11 17:06:05 | 2019-09-11 10:09:00 | n |
| 145285 | IIEES SC | SHRO | Z | 81 | 1 | 2019-09-11 17:05:43 | 2019-09-11 10:09:00 | n |
| 145286 | IIEES SC | SBZV | Z | 50 | 1 | 2019-09-11 17:05:58 | 2019-09-11 10:09:00 | n |
| 145287 | IIEES SC | AKL | Z | 19 | 1 | 2019-09-11 17:05:59 | 2019-09-11 10:09:00 | n |
| 145288 | IIEES SC | MRVT | Z | 18 | 1 | 2019-09-11 17:04:20 | 2019-09-11 10:09:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | KRBR | Z | IP | I | 2019-09-11 17:02:42 | 0.9 | y | 66 | 256 | |||
| IIEES SC | KRBR | Z | IS | I | 2019-09-11 17:02:51 | 1.2 | y | 66 | 256 | |||
| IIEES SC | BNDS | Z | IP | I | 2019-09-11 17:03:15 | -1 | y | 322 | 202 | |||
| IIEES SC | ZHSF | N | IS | I | 2019-09-11 17:03:53 | 1.1 | y | 333 | 100 | |||
| IIEES SC | ZHSF | Z | IP | I | 2019-09-11 17:03:17 | 0.2 | y | 333 | 100 | |||
| IIEES SC | YZKH | Z | IP | I | 2019-09-11 17:03:22 | 0.2 | y | 366 | 313 | |||
| IIEES SC | TABS | Z | IP | I | 2019-09-11 17:03:23 | -1.1 | y | 389 | 356 | |||
| IIEES SC | SHRT | Z | IP | I | 2019-09-11 17:03:33 | -1.5 | y | 478 | 35 | |||
| IIEES SC | TBJM | Z | IP | I | 2019-09-11 17:03:54 | -0.5 | y | 633 | 25 | |||
| IIEES SC | SHRO | Z | IP | I | 2019-09-11 17:03:57 | -0.8 | y | 667 | 349 | |||
| IIEES SC | SBZV | Z | IP | I | 2019-09-11 17:04:01 | -1 | y | 689 | 1 | |||
| IIEES SC | AKL | Z | IP | I | 2019-09-11 17:04:05 | -0.8 | y | 722 | 10 | |||
| IIEES SC | MRVT | Z | IP | I | 2019-09-11 17:04:20 | -0.8 | y | 845 | 352 | |||
| IIEES SC | KRBR | 17 | 2019-09-11 17:02:55 | y | 66 | 256 | ||||||
| IIEES SC | ZHSF | 17 | 2019-09-11 17:04:07 | y | 333 | 100 | ||||||
| IIEES SC | YZKH | 17 | 2019-09-11 17:04:15 | y | 366 | 313 | ||||||
| IIEES SC | TABS | 17 | 2019-09-11 17:04:27 | y | 389 | 356 | ||||||
| IIEES SC | SHRT | 17 | 2019-09-11 17:04:53 | y | 478 | 35 | ||||||
| IIEES SC | TBJM | 17 | 2019-09-11 17:05:46 | y | 633 | 25 | ||||||
| IIEES SC | SHRO | 17 | 2019-09-11 17:05:15 | y | 667 | 349 | ||||||
| IIEES SC | AKL | 17 | 2019-09-11 17:06:03 | y | 722 | 10 | ||||||
| IIEES SC | MRVT | 17 | 2019-09-11 17:06:46 | y | 845 | 352 | ||||||
