Magnitude |
:3.5 |
| Date & Time (UTC) | 2019-10-22 22:10:04.9 |
| Date & Time (Local) | 1398/8/1 01:40:04.9 |
| Location | Lat:27.26 Lon: 55.09 |
| Region | Hormozgan Province, 72 km -East of Bastak |
Nearest Cities |
|
| 60 km North West of Bandar-e khamir, Hormozgan Province | |
| 72 km North East of Bastak, Hormozgan Province | |
| 75 km South West of Darz, Fars Province | |
| 84 km North East of Jenah, Hormozgan Province | |
| 85 km North East of Bandar-e lengeh, Hormozgan Province | |
| Depth | 14 km |
| Agency | |

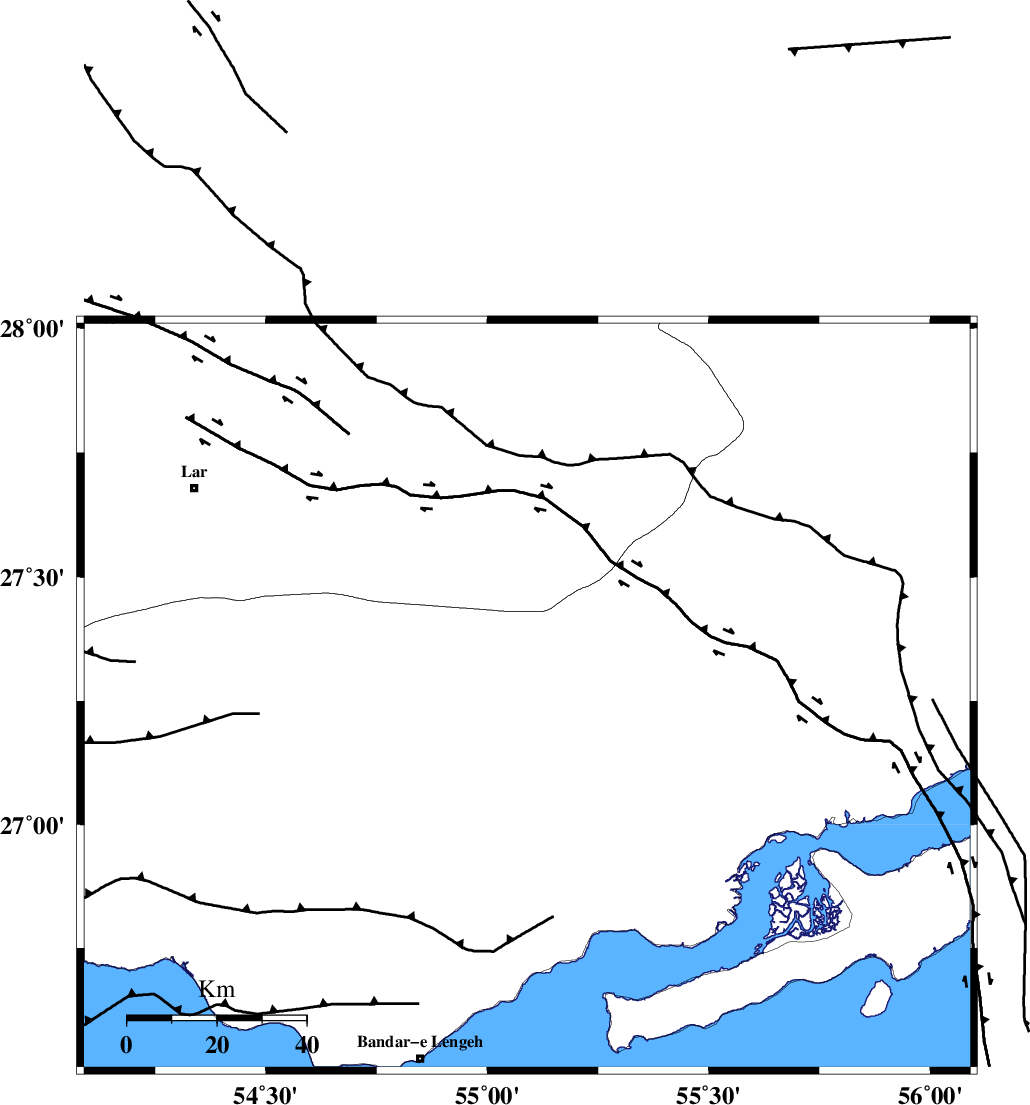

Faults within 150 km: |
|
| MFF1 (Length: 180 km) , Distance to epicenter: 23 km | |
| LAR_F (Length: 99 km) , Distance to epicenter: 47 km | |
| ZFF1 (Length: 165 km) , Distance to epicenter: 53 km | |
| Number of Phases | 13 |
| RMS | 0.4 |
| Number of Stations | 13 |
| Error in Latitude | >6 km |
| Error in Longitude | 0 km |
| Error in Depth | 12 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 146990 | IIEES SC | BNDS | Z | 560 | 1 | 2019-10-22 22:10:42 | 2019-10-23 09:40:00 | n |
| 146991 | IIEES SC | LMD1 | Z | 620 | 1 | 2019-10-22 22:11:04 | 2019-10-23 09:40:00 | n |
| 146992 | IIEES SC | KRBR | Z | 67 | 1 | 2019-10-22 22:11:47 | 2019-10-23 09:40:00 | n |
| 146993 | IIEES SC | KLNJ | Z | 22 | 1 | 2019-10-22 22:12:26 | 2019-10-23 09:40:00 | n |
| 146994 | IIEES SC | YZKH | Z | 20 | 1 | 2019-10-22 22:11:28 | 2019-10-23 09:40:00 | n |
| 146995 | IIEES SC | YZKH | Z | 13 | 0.5 | 2019-10-22 22:11:28 | 2019-10-23 09:40:00 | n |
| 146996 | IIEES SC | ZHSF | Z | 11 | 1 | 2019-10-22 22:13:14 | 2019-10-23 09:40:00 | n |
| 146997 | IIEES SC | ZHSF | Z | 3.7 | 0.68 | 2019-10-22 22:12:00 | 2019-10-23 09:40:00 | n |
| 146998 | IIEES SC | NASN | Z | 21 | 1 | 2019-10-22 22:11:34 | 2019-10-23 09:40:00 | n |
| 146999 | IIEES SC | NASN | Z | 16 | 0.62 | 2019-10-22 22:11:35 | 2019-10-23 09:40:00 | n |
| 147000 | IIEES SC | TABS | Z | 17 | 1 | 2019-10-22 22:13:49 | 2019-10-23 09:40:00 | n |
| 147001 | IIEES SC | TABS | Z | 5.8 | 0.95 | 2019-10-22 22:11:50 | 2019-10-23 09:40:00 | n |
| 147002 | IIEES SC | KHMZ | Z | 15 | 1 | 2019-10-22 22:13:38 | 2019-10-23 09:40:00 | n |
| 147003 | IIEES SC | KHMZ | Z | 6.4 | 0.53 | 2019-10-22 22:12:04 | 2019-10-23 09:40:00 | n |
| 147004 | IIEES SC | ASAO | Z | 7.1 | 0.59 | 2019-10-22 22:12:09 | 2019-10-23 09:40:00 | n |
| 147005 | IIEES SC | DAMV | Z | 9.8 | 0.64 | 2019-10-22 22:12:14 | 2019-10-23 09:40:00 | n |
| 147006 | IIEES SC | SNGE | Z | 6.2 | 0.62 | 2019-10-22 22:12:32 | 2019-10-23 09:40:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | BNDS | Z | IP | I | 2019-10-22 22:10:22 | -0.3 | y | 111 | 82 | |||
| IIEES SC | LMD1 | Z | IP | I | 2019-10-22 22:10:36 | 0.2 | y | 189 | 273 | |||
| IIEES SC | KRBR | E | IS | I | 2019-10-22 22:11:33 | 0.1 | y | 344 | 28 | |||
| IIEES SC | KRBR | Z | IP | I | 2019-10-22 22:10:55 | 0 | y | 344 | 28 | |||
| IIEES SC | KLNJ | Z | IP | I | 2019-10-22 22:11:19 | -0.2 | y | 533 | 321 | |||
| IIEES SC | YZKH | N | IP | I | 2019-10-22 22:11:23 | 0.1 | y | 567 | 355 | |||
| IIEES SC | ZHSF | Z | IP | I | 2019-10-22 22:11:30 | 1.6 | y | 611 | 65 | |||
| IIEES SC | NASN | N | IP | I | 2019-10-22 22:11:33 | -0.6 | y | 656 | 340 | |||
| IIEES SC | TABS | N | IP | I | 2019-10-22 22:11:44 | 0.2 | y | 733 | 15 | |||
| IIEES SC | KHMZ | Z | IP | I | 2019-10-22 22:11:59 | -1.3 | y | 867 | 326 | |||
| IIEES SC | ASAO | Z | IP | I | 2019-10-22 22:12:08 | -1.4 | y | 945 | 329 | |||
| IIEES SC | DAMV | N | IP | I | 2019-10-22 22:12:13 | -0.9 | y | 978 | 342 | |||
| IIEES SC | SNGE | E | IP | I | 2019-10-22 22:12:32 | -2 | y | 1145 | 320 | |||
