Magnitude |
:4.4 |
| Date & Time (UTC) | 2019-11-01 08:20:57.1 |
| Date & Time (Local) | 1398/8/10 11:50:57.1 |

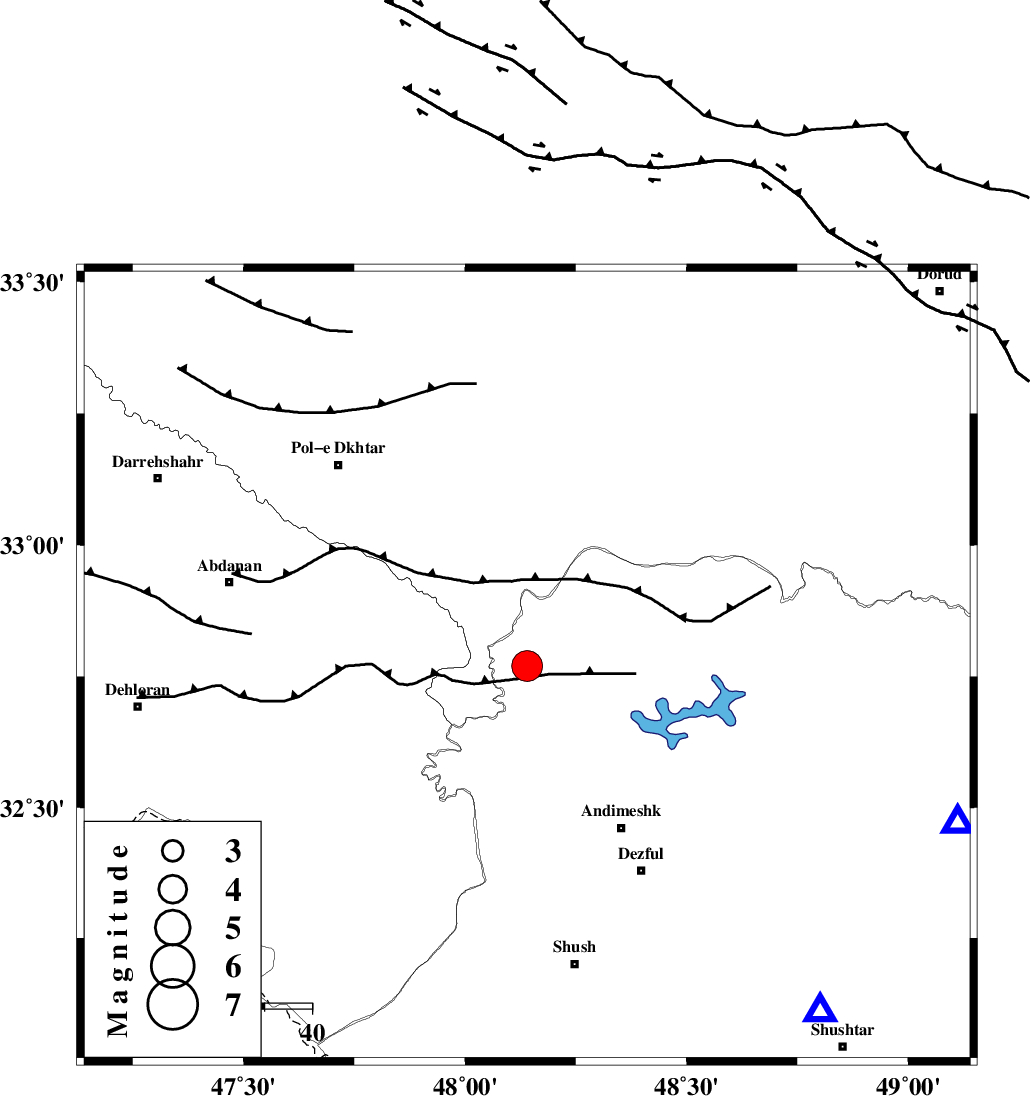

| Location | Lat:32.77 Lon: 48.14 |
| Region | Khoozestan Province, 40 km North-West of Andimeshk |
Nearest Cities |
|
| 9 km North of Bidruyeh, Khoozestan Province | |
| 14 km North West of Hoseinieh, Khoozestan Province | |
| 18 km West of Sorkhakan, Khoozestan Province | |
| 40 km North West of Andimeshk, Khoozestan Province | |
| 50 km North West of Dezful, Khoozestan Province | |
| Depth | 7 km |
| Agency | |
Faults within 150 km: |
|
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 3 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 4 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 19 km | |
| Number of Phases | 23 |
| RMS | 0.4 |
| Number of Stations | 24 |
| Error in Latitude | >1 km |
| Error in Longitude | 0 km |
| Error in Depth | 7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 147245 | IIEES SC | KGS1 | Z | 3000 | 1 | 2019-11-01 08:22:35 | 2019-11-01 12:11:00 | n |
| 147246 | IIEES SC | QABG | Z | 240 | 1 | 2019-11-01 08:22:47 | 2019-11-01 12:11:00 | n |
| 147247 | IIEES SC | KLNJ | Z | 1600 | 1 | 2019-11-01 08:23:18 | 2019-11-01 12:11:00 | n |
| 147248 | IIEES SC | THKV | Z | 570 | 1 | 2019-11-01 08:23:19 | 2019-11-01 12:11:00 | n |
| 147249 | IIEES SC | ZNJK | Z | 280 | 1 | 2019-11-01 08:23:16 | 2019-11-01 12:11:00 | n |
| 147250 | IIEES SC | NASN | Z | 540 | 1 | 2019-11-01 08:22:10 | 2019-11-01 12:11:00 | n |
| 147251 | IIEES SC | CHTH | Z | 610 | 1 | 2019-11-01 08:23:08 | 2019-11-01 12:11:00 | n |
| 147252 | IIEES SC | DAMV | Z | 600 | 1 | 2019-11-01 08:23:23 | 2019-11-01 12:11:00 | n |
| 147253 | IIEES SC | MAHB | Z | 340 | 1 | 2019-11-01 08:22:24 | 2019-11-01 12:11:00 | n |
| 147254 | IIEES SC | AHRM | Z | 190 | 1 | 2019-11-01 08:24:16 | 2019-11-01 12:11:00 | n |
| 147255 | IIEES SC | AZR | Z | 510 | 1 | 2019-11-01 08:22:59 | 2019-11-01 12:11:00 | n |
| 147256 | IIEES SC | YZKH | Z | 170 | 1 | 2019-11-01 08:24:15 | 2019-11-01 12:11:00 | n |
| 147257 | IIEES SC | ANJ | Z | 230 | 1 | 2019-11-01 08:22:26 | 2019-11-01 12:11:00 | n |
| 147258 | IIEES SC | GLO | Z | 370 | 1 | 2019-11-01 08:24:21 | 2019-11-01 12:11:00 | n |
| 147259 | IIEES SC | GRMI | Z | 230 | 1 | 2019-11-01 08:22:30 | 2019-11-01 12:11:00 | n |
| 147260 | IIEES SC | SHRO | Z | 85 | 1 | 2019-11-01 08:22:51 | 2019-11-01 12:11:00 | n |
| 147261 | IIEES SC | TABS | Z | 150 | 1 | 2019-11-01 08:25:15 | 2019-11-01 12:11:00 | n |
| 147262 | IIEES SC | KRBR | Z | 59 | 1 | 2019-11-01 08:24:30 | 2019-11-01 12:11:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | KGS1 | Z | IP | I | 2019-11-01 08:21:43 | -0.1 | y | 300 | 309 | |||
| IIEES SC | QABG | Z | IP | I | 2019-11-01 08:21:49 | 0.3 | y | 355 | 22 | |||
| IIEES SC | KLNJ | N | IS | I | 2019-11-01 08:22:35 | 0.3 | y | 378 | 121 | |||
| IIEES SC | KLNJ | Z | IP | I | 2019-11-01 08:21:52 | -0.9 | y | 378 | 121 | |||
| IIEES SC | THKV | Z | IP | I | 2019-11-01 08:21:59 | 0.4 | y | 433 | 36 | |||
| IIEES SC | ZNJK | Z | IP | I | 2019-11-01 08:22:00 | 0.3 | y | 433 | 7 | |||
| IIEES SC | NASN | Z | IP | I | 2019-11-01 08:21:59 | -0.7 | y | 433 | 90 | |||
| IIEES SC | CHTH | Z | IP | I | 2019-11-01 08:22:01 | 0.4 | y | 444 | 38 | |||
| IIEES SC | DAMV | Z | IP | I | 2019-11-01 08:22:04 | -0.8 | y | 478 | 48 | |||
| IIEES SC | MAHB | Z | IP | I | 2019-11-01 08:22:07 | -0.2 | y | 500 | 333 | |||
| IIEES SC | AHRM | Z | IP | I | 2019-11-01 08:22:11 | 0.2 | y | 522 | 145 | |||
| IIEES SC | AZR | Z | IP | I | 2019-11-01 08:22:18 | 0.5 | y | 578 | 340 | |||
| IIEES SC | YZKH | Z | IP | I | 2019-11-01 08:22:19 | -1.3 | y | 611 | 94 | |||
| IIEES SC | ANJ | Z | IP | I | 2019-11-01 08:22:20 | -1.1 | y | 611 | 61 | |||
| IIEES SC | GLO | Z | IP | I | 2019-11-01 08:22:29 | 1.2 | y | 667 | 52 | |||
| IIEES SC | GRMI | Z | IP | I | 2019-11-01 08:22:29 | 0.5 | y | 667 | 358 | |||
| IIEES SC | SHRO | Z | IP | I | 2019-11-01 08:22:45 | -0.9 | y | 811 | 64 | |||
| IIEES SC | TABS | Z | IP | I | 2019-11-01 08:22:48 | -1.8 | y | 845 | 83 | |||
| IIEES SC | KRBR | Z | IP | I | 2019-11-01 08:22:53 | -1.1 | y | 878 | 111 | |||
| IIEES SC | BJRD | Z | IP | I | 2019-11-01 08:23:10 | -0.4 | y | 1011 | 57 | |||
| IIEES SC | AKL | Z | IP | I | 2019-11-01 08:23:17 | -0.4 | y | 1067 | 66 | |||
| IIEES SC | SHRT | N | IP | I | 2019-11-01 08:23:25 | -1.6 | y | 1134 | 85 | |||
| IIEES SC | TBJM | N | IP | I | 2019-11-01 08:23:30 | 0.8 | y | 1156 | 76 | |||
