Magnitude |
:3.8 |
| Date & Time (UTC) | 2019-11-03 16:23:00.5 |
| Date & Time (Local) | 1398/8/12 19:53:00.5 |

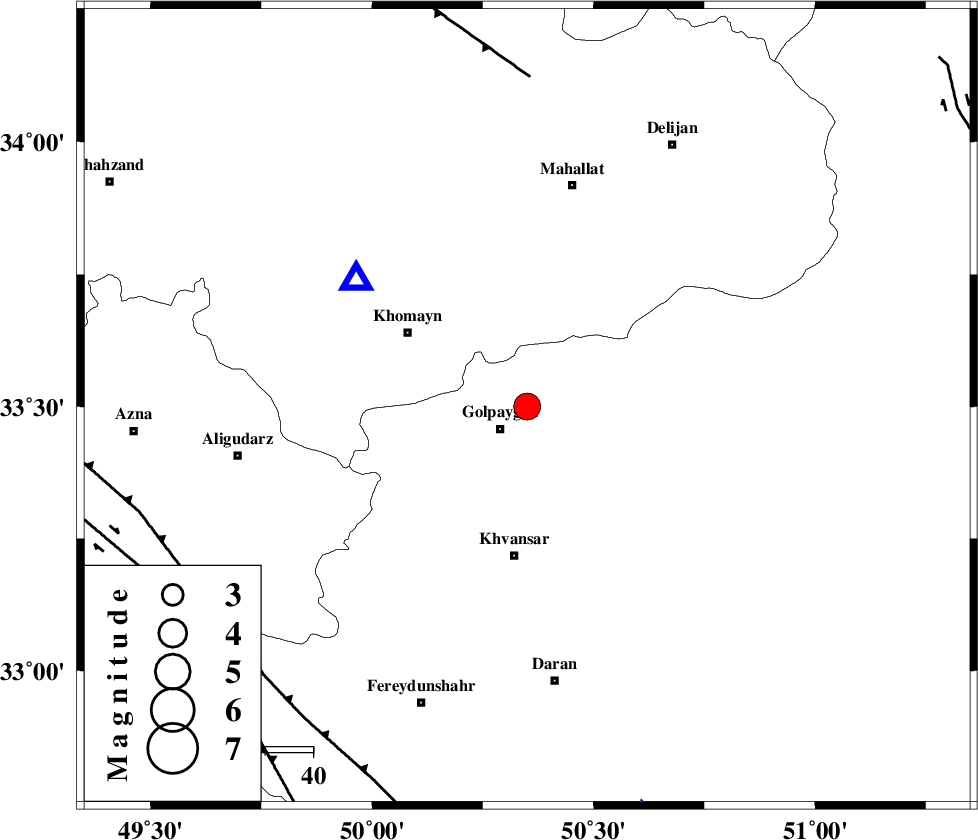

| Location | Lat:33.5 Lon: 50.35 |
| Region | Esfahan Province, 7 km of Golpayegan |
Nearest Cities |
|
| 3 km North of Gogad, Esfahan Province | |
| 3 km of Saeedabad, Esfahan Province | |
| 6 km North of Nivan nar, Esfahan Province | |
| 7 km North of Golpayegan, Esfahan Province | |
| 11 km West of Konjedkhan, Esfahan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| TAFRESH_F (Length: 117 km) , Distance to epicenter: 69 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 78 km | |
| ARDAL_F (Length: 170 km) , Distance to epicenter: 84 km | |
| Number of Phases | 17 |
| RMS | 1 |
| Number of Stations | 17 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 147398 | IIEES SC | KHMZ | Z | 10000 | 1 | 2019-11-03 16:23:17 | 2019-11-04 10:10:00 | n |
| 147399 | IIEES SC | GHVR | Z | 1100 | 1 | 2019-11-03 16:23:46 | 2019-11-04 10:10:00 | n |
| 147400 | IIEES SC | NASN | Z | 490 | 1 | 2019-11-03 16:24:11 | 2019-11-04 10:10:00 | n |
| 147401 | IIEES SC | QABG | Z | 89 | 1 | 2019-11-03 16:24:15 | 2019-11-04 10:10:00 | n |
| 147402 | IIEES SC | THKV | Z | 300 | 1 | 2019-11-03 16:23:49 | 2019-11-04 10:10:00 | n |
| 147403 | IIEES SC | CHTH | Z | 230 | 1 | 2019-11-03 16:24:24 | 2019-11-04 10:10:00 | n |
| 147404 | IIEES SC | DAMV | Z | 230 | 1 | 2019-11-03 16:24:18 | 2019-11-04 10:10:00 | n |
| 147405 | IIEES SC | KLNJ | Z | 320 | 1 | 2019-11-03 16:24:32 | 2019-11-04 10:10:00 | n |
| 147406 | IIEES SC | SNGE | Z | 390 | 1 | 2019-11-03 16:24:45 | 2019-11-04 10:10:00 | n |
| 147407 | IIEES SC | ZNJK | Z | 56 | 1 | 2019-11-03 16:24:57 | 2019-11-04 10:10:00 | n |
| 147408 | IIEES SC | ANJ | Z | 65 | 1 | 2019-11-03 16:25:10 | 2019-11-04 10:10:00 | n |
| 147409 | IIEES SC | YZKH | Z | 210 | 1 | 2019-11-03 16:25:04 | 2019-11-04 10:10:00 | n |
| 147410 | IIEES SC | GLO | Z | 160 | 1 | 2019-11-03 16:25:36 | 2019-11-04 10:10:00 | n |
| 147411 | IIEES SC | SRSL | Z | 47 | 1 | 2019-11-03 16:25:55 | 2019-11-04 10:10:00 | n |
| 147412 | IIEES SC | SHRO | Z | 32 | 1 | 2019-11-03 16:26:10 | 2019-11-04 10:10:00 | n |
| 147413 | IIEES SC | SHRO | Z | 12 | 0.72 | 2019-11-03 16:24:38 | 2019-11-04 10:10:00 | n |
| 147414 | IIEES SC | TABS | Z | 47 | 1 | 2019-11-03 16:26:13 | 2019-11-04 10:10:00 | n |
| 147415 | IIEES SC | TABS | Z | 15 | 1.24 | 2019-11-03 16:24:48 | 2019-11-04 10:10:00 | n |
| 147416 | IIEES SC | GRMI | Z | 22 | 1 | 2019-11-03 16:26:26 | 2019-11-04 10:10:00 | n |
| 147417 | IIEES SC | GRMI | Z | 13 | 0.63 | 2019-11-03 16:24:47 | 2019-11-04 10:10:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | KHMZ | Z | IP | I | 2019-11-03 16:23:06 | -2.1 | y | 44 | 307 | |||
| IIEES SC | GHVR | Z | IP | I | 2019-11-03 16:23:22 | -1.1 | y | 133 | 37 | |||
| IIEES SC | NASN | Z | IP | I | 2019-11-03 16:23:37 | -1.6 | y | 244 | 109 | |||
| IIEES SC | QABG | Z | IP | I | 2019-11-03 16:23:40 | -0.1 | y | 255 | 344 | |||
| IIEES SC | THKV | Z | IP | I | 2019-11-03 16:23:43 | 0.9 | y | 278 | 10 | |||
| IIEES SC | CHTH | Z | IP | I | 2019-11-03 16:23:43 | 0.1 | y | 278 | 15 | |||
| IIEES SC | DAMV | Z | IP | I | 2019-11-03 16:23:43 | -0.2 | y | 278 | 32 | |||
| IIEES SC | KLNJ | Z | IP | I | 2019-11-03 16:23:45 | 0.1 | y | 300 | 157 | |||
| IIEES SC | SNGE | Z | IP | I | 2019-11-03 16:23:50 | 1.2 | y | 333 | 303 | |||
| IIEES SC | ZNJK | Z | IP | I | 2019-11-03 16:23:57 | 1.6 | y | 378 | 337 | |||
| IIEES SC | ANJ | Z | IP | I | 2019-11-03 16:23:56 | -0.7 | y | 389 | 56 | |||
| IIEES SC | YZKH | N | IP | I | 2019-11-03 16:24:00 | 0.5 | y | 411 | 107 | |||
| IIEES SC | GLO | Z | IP | I | 2019-11-03 16:24:08 | 2.5 | y | 455 | 44 | |||
| IIEES SC | SRSL | Z | IP | I | 2019-11-03 16:24:16 | 0.5 | y | 544 | 304 | |||
| IIEES SC | SHRO | Z | IP | I | 2019-11-03 16:24:21 | -0.5 | y | 589 | 62 | |||
| IIEES SC | TABS | N | IP | I | 2019-11-03 16:24:27 | 1.1 | y | 633 | 88 | |||
| IIEES SC | GRMI | N | IP | I | 2019-11-03 16:24:28 | 1.9 | y | 633 | 339 | |||
