Magnitude |
:4.4 |
| Date & Time (UTC) | 2019-11-07 23:07:16.2 |
| Date & Time (Local) | 1398/8/17 02:37:16.2 |

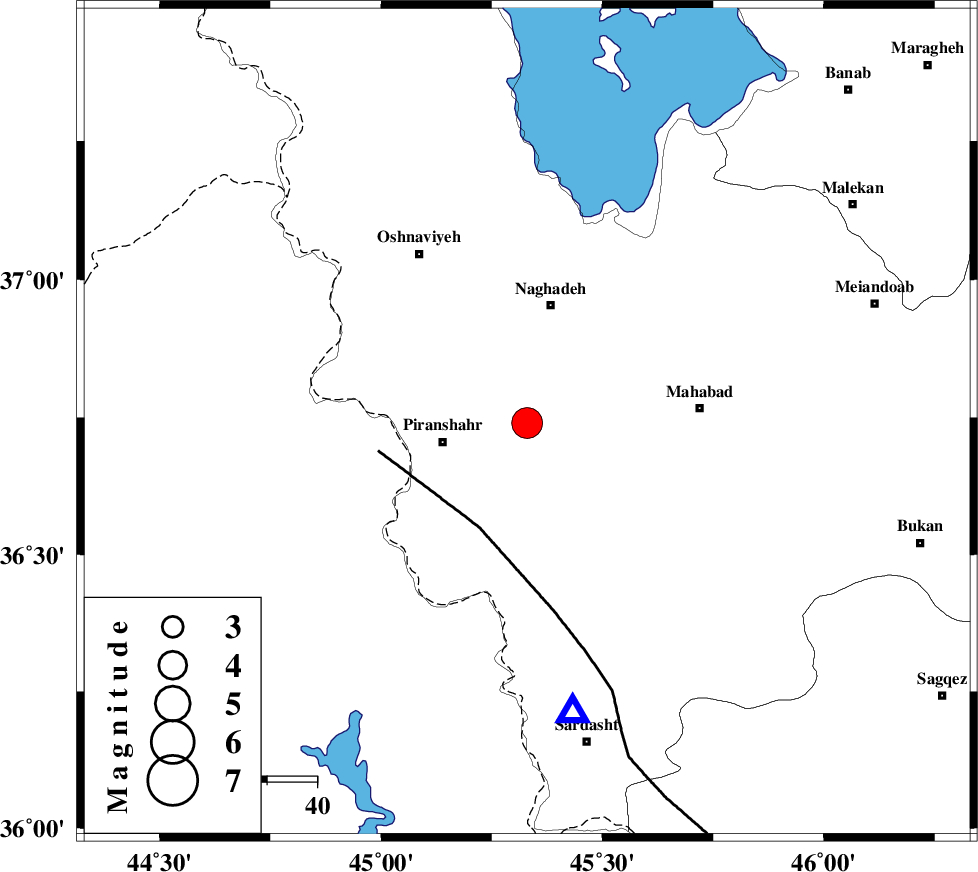

| Location | Lat:36.74 Lon: 45.33 |
| Region | Azarbaijan Gharbi Province, 17 km -East of Piranshahr |
Nearest Cities |
|
| 6 km of Pasveh, Azarbaijan Gharbi Province | |
| 9 km of Kardkeshaneh, Azarbaijan Gharbi Province | |
| 11 km of Darikeh, Azarbaijan Gharbi Province | |
| 17 km North East of Piranshahr, Azarbaijan Gharbi Province | |
| 18 km North East of Chiyaneh, Azarbaijan Gharbi Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| PIRANSHAHR_F (Length: 253 km) , Distance to epicenter: 23 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 133 km | |
| Number of Phases | 13 |
| RMS | 0.1 |
| Number of Stations | 14 |
| Error in Latitude | >1 km |
| Error in Longitude | 0 km |
| Error in Depth | 1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 147599 | IIEES SC | MAHB | Z | 59000 | 1 | 2019-11-07 23:07:29 | 2019-11-08 03:29:00 | n |
| 147600 | IIEES SC | SRSL | Z | 60000 | 1 | 2019-11-07 23:07:39 | 2019-11-08 03:29:00 | n |
| 147601 | IIEES SC | AZR | Z | 47000 | 1 | 2019-11-07 23:08:01 | 2019-11-08 03:29:00 | n |
| 147602 | IIEES SC | SNGE | Z | 6.5 | 1 | 2019-11-07 23:08:54 | 2019-11-08 03:29:00 | n |
| 147603 | IIEES SC | KHMZ | Z | 220 | 1 | 2019-11-07 23:10:09 | 2019-11-08 03:29:00 | n |
| 147604 | IIEES SC | GHVR | Z | 250 | 1 | 2019-11-07 23:10:35 | 2019-11-08 03:29:00 | n |
| 147605 | IIEES SC | DAMV | Z | 4.5 | 1 | 2019-11-07 23:09:01 | 2019-11-08 03:29:00 | n |
| 147606 | IIEES SC | NASN | Z | 75 | 1 | 2019-11-07 23:09:59 | 2019-11-08 03:29:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | MAHB | Z | IP | I | 2019-11-07 23:07:22 | 0.1 | y | 33 | 85 | |||
| IIEES SC | MAHB | Z | IS | I | 2019-11-07 23:07:27 | 0 | y | 33 | 85 | |||
| IIEES SC | SRSL | Z | IP | I | 2019-11-07 23:07:26 | 0 | y | 55 | 171 | |||
| IIEES SC | AZR | Z | IP | I | 2019-11-07 23:07:36 | 0 | y | 122 | 29 | |||
| IIEES SC | SNGE | Z | IP | I | 2019-11-07 23:07:58 | 1.9 | y | 255 | 135 | |||
| IIEES SC | KHMZ | Z | IP | I | 2019-11-07 23:08:31 | -0.3 | y | 533 | 128 | |||
| IIEES SC | GHVR | Z | IP | I | 2019-11-07 23:08:37 | -0.1 | y | 589 | 115 | |||
| IIEES SC | DAMV | Z | IP | I | 2019-11-07 23:08:40 | 0.3 | y | 611 | 102 | |||
| IIEES SC | NASN | Z | IP | I | 2019-11-07 23:09:06 | 1.4 | y | 811 | 123 | |||
| IIEES SC | AHRM | Z | IP | I | 2019-11-07 23:09:31 | -1.4 | y | 1034 | 147 | |||
| IIEES SC | BJRD | Z | IP | I | 2019-11-07 23:09:37 | -0.5 | y | 1078 | 84 | |||
| IIEES SC | TABS | Z | IP | I | 2019-11-07 23:09:45 | 1 | y | 1123 | 108 | |||
| IIEES SC | BSRN | Z | IP | I | 2019-11-07 23:10:17 | 1.7 | y | 1378 | 113 | |||
