Magnitude |
:4.4 |
| Date & Time (UTC) | 2019-11-29 19:03:22.6 |
| Date & Time (Local) | 1398/9/8 22:33:22.6 |

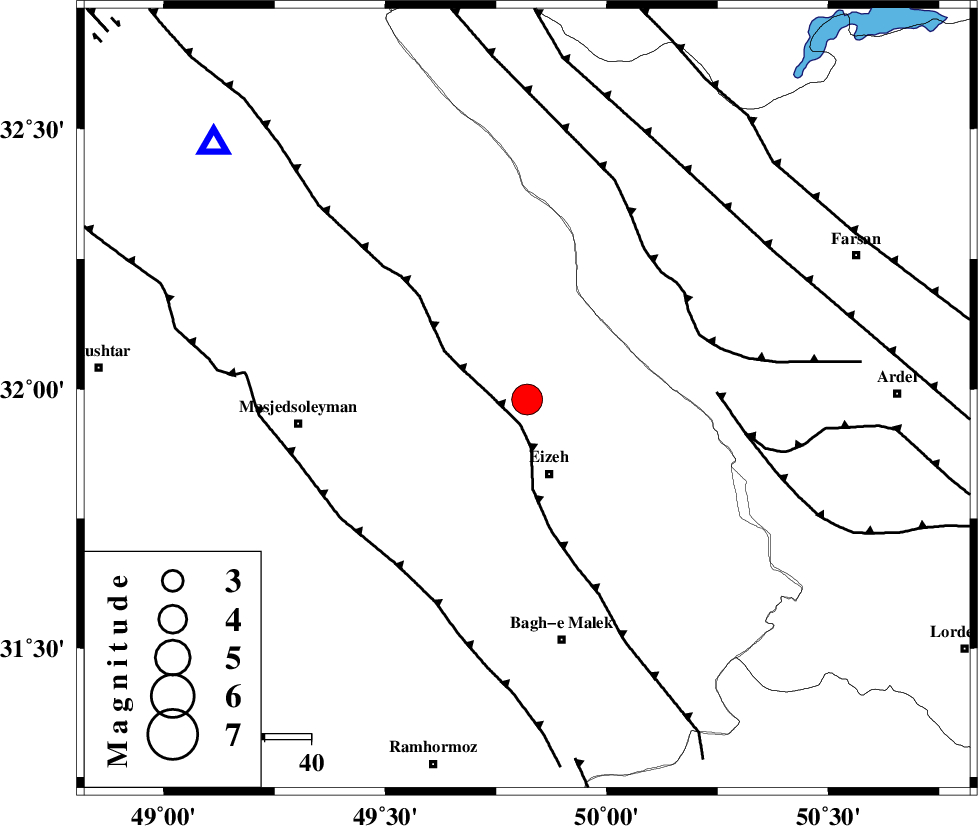

| Location | Lat:31.98 Lon: 49.82 |
| Region | Khoozestan Province, 17 km North of Izeh |
Nearest Cities |
|
| 2 km of Torshak, Khoozestan Province | |
| 13 km North of Rasvand, Khoozestan Province | |
| 17 km North of Izeh, Khoozestan Province | |
| 22 km North of Chenarestan, Khoozestan Province | |
| 39 km North of Ghaleh tal, Khoozestan Province | |
| Depth | 19 km |
| Agency | |
Faults within 150 km: |
|
| MFF2 (Length: 205 km) , Distance to epicenter: 5 km | |
| ZARDKUH_F (Length: 139 km) , Distance to epicenter: 39 km | |
| DOPOLAN_F (Length: 107 km) , Distance to epicenter: 40 km | |
| Number of Phases | 26 |
| RMS | 0.4 |
| Number of Stations | 27 |
| Error in Latitude | >1 km |
| Error in Longitude | 0 km |
| Error in Depth | 4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 149087 | IIEES SC | GTMR | Z | 20000 | 1 | 2019-11-29 19:03:53 | 2019-11-29 10:46:00 | n |
| 149088 | IIEES SC | KHMZ | Z | 4400 | 1 | 2019-11-29 19:04:21 | 2019-11-29 10:46:00 | n |
| 149089 | IIEES SC | KLNJ | Z | 2900 | 1 | 2019-11-29 19:04:29 | 2019-11-29 10:46:00 | n |
| 149090 | IIEES SC | AMR2 | Z | 2000 | 1 | 2019-11-29 19:04:49 | 2019-11-29 10:46:00 | n |
| 149091 | IIEES SC | ASAO | Z | 2100 | 1 | 2019-11-29 19:04:53 | 2019-11-29 10:46:00 | n |
| 149092 | IIEES SC | NASN | Z | 400 | 1 | 2019-11-29 19:05:04 | 2019-11-29 10:46:00 | n |
| 149093 | IIEES SC | GHVR | Z | 1800 | 1 | 2019-11-29 19:04:57 | 2019-11-29 10:46:00 | n |
| 149094 | IIEES SC | AHRM | Z | 99 | 1 | 2019-11-29 19:05:24 | 2019-11-29 10:46:00 | n |
| 149095 | IIEES SC | QABG | Z | 120 | 1 | 2019-11-29 19:05:30 | 2019-11-29 10:46:00 | n |
| 149096 | IIEES SC | SNGE | Z | 72 | 1 | 2019-11-29 19:04:42 | 2019-11-29 10:46:00 | n |
| 149097 | IIEES SC | THKV | Z | 280 | 1 | 2019-11-29 19:05:43 | 2019-11-29 10:46:00 | n |
| 149098 | IIEES SC | DAMV | Z | 4.8 | 1 | 2019-11-29 19:05:11 | 2019-11-29 10:46:00 | n |
| 149099 | IIEES SC | CHTH | Z | 14 | 1 | 2019-11-29 19:06:49 | 2019-11-29 10:46:00 | n |
| 149100 | IIEES SC | YZKH | Z | 170 | 1 | 2019-11-29 19:05:42 | 2019-11-29 10:46:00 | n |
| 149101 | IIEES SC | ZNJK | Z | 3.2 | 1 | 2019-11-29 19:04:59 | 2019-11-29 10:46:00 | n |
| 149102 | IIEES SC | ANJ | Z | 35 | 1 | 2019-11-29 19:06:05 | 2019-11-29 10:46:00 | n |
| 149103 | IIEES SC | SRSL | Z | 630 | 1 | 2019-11-29 19:05:51 | 2019-11-29 10:46:00 | n |
| 149104 | IIEES SC | GLO | Z | 460 | 1 | 2019-11-29 19:06:40 | 2019-11-29 10:46:00 | n |
| 149105 | IIEES SC | KRBR | Z | 58 | 1 | 2019-11-29 19:07:01 | 2019-11-29 10:46:00 | n |
| 149106 | IIEES SC | TABS | Z | 100 | 1 | 2019-11-29 19:07:08 | 2019-11-29 10:46:00 | n |
| 149107 | IIEES SC | SHRO | Z | 3.4 | 1 | 2019-11-29 19:06:55 | 2019-11-29 10:46:00 | n |
| 149108 | IIEES SC | MRVT | Z | 14 | 1 | 2019-11-29 19:07:42 | 2019-11-29 10:46:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GTMR | Z | IP | I | 2019-11-29 19:03:35 | -1.7 | y | 88 | 309 | |||
| IIEES SC | GTMR | Z | IS | I | 2019-11-29 19:03:48 | 0 | y | 88 | 309 | |||
| IIEES SC | KHMZ | N | IS | I | 2019-11-29 19:04:19 | 1.9 | y | 200 | 4 | |||
| IIEES SC | KHMZ | Z | IP | I | 2019-11-29 19:03:54 | 0.4 | y | 200 | 4 | |||
| IIEES SC | KLNJ | N | IP | I | 2019-11-29 19:03:55 | 0.4 | y | 200 | 123 | |||
| IIEES SC | AMR2 | Z | IP | I | 2019-11-29 19:04:00 | 0.1 | y | 244 | 270 | |||
| IIEES SC | ASAO | Z | IP | I | 2019-11-29 19:04:06 | 0.5 | y | 289 | 4 | |||
| IIEES SC | NASN | Z | IP | I | 2019-11-29 19:04:07 | 0.2 | y | 300 | 72 | |||
| IIEES SC | GHVR | Z | IP | I | 2019-11-29 19:04:09 | 1.2 | y | 311 | 26 | |||
| IIEES SC | AHRM | Z | IP | I | 2019-11-29 19:04:16 | -0.1 | y | 378 | 158 | |||
| IIEES SC | QABG | Z | IP | I | 2019-11-29 19:04:21 | -0.1 | y | 411 | 357 | |||
| IIEES SC | SNGE | Z | IP | I | 2019-11-29 19:04:20 | -1.1 | y | 411 | 326 | |||
| IIEES SC | THKV | Z | IP | I | 2019-11-29 19:04:25 | 0 | y | 444 | 13 | |||
| IIEES SC | DAMV | Z | IP | I | 2019-11-29 19:04:25 | -0.3 | y | 455 | 26 | |||
| IIEES SC | CHTH | Z | IP | I | 2019-11-29 19:04:26 | 0.2 | y | 455 | 16 | |||
| IIEES SC | YZKH | Z | IP | I | 2019-11-29 19:04:25 | -0.3 | y | 455 | 84 | |||
| IIEES SC | ZNJK | Z | IP | I | 2019-11-29 19:04:34 | -1.3 | y | 533 | 349 | |||
| IIEES SC | ANJ | Z | IP | I | 2019-11-29 19:04:37 | -0.3 | y | 544 | 44 | |||
| IIEES SC | SRSL | Z | IP | I | 2019-11-29 19:04:46 | -0.7 | y | 622 | 319 | |||
| IIEES SC | GLO | Z | IP | I | 2019-11-29 19:04:48 | 0.7 | y | 622 | 36 | |||
| IIEES SC | KRBR | Z | IP | I | 2019-11-29 19:04:57 | 0.6 | y | 700 | 108 | |||
| IIEES SC | TABS | Z | IP | I | 2019-11-29 19:04:57 | -0.5 | y | 711 | 75 | |||
| IIEES SC | SHRO | Z | IP | I | 2019-11-29 19:04:59 | -0.5 | y | 722 | 52 | |||
| IIEES SC | MRVT | Z | IP | I | 2019-11-29 19:05:14 | -0.9 | y | 856 | 42 | |||
| IIEES SC | BJRD | Z | IP | I | 2019-11-29 19:05:26 | -0.3 | y | 945 | 48 | |||
| IIEES SC | AKL | Z | IP | I | 2019-11-29 19:05:31 | 0.6 | y | 967 | 58 | |||
