Magnitude |
:3.2 |
| Date & Time (UTC) | 2019-12-08 08:35:25.4 |
| Date & Time (Local) | 1398/9/17 12:05:25.4 |

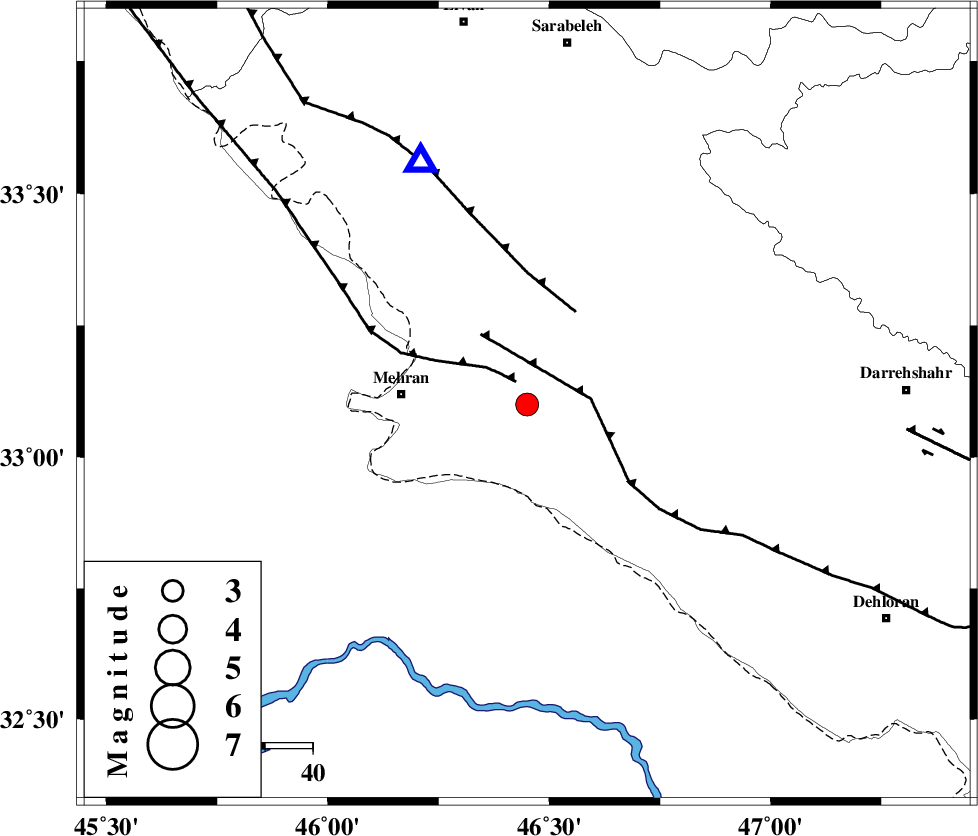

| Location | Lat:33.1 Lon: 46.45 |
| Region | Ilam Province, 27 km -East of Mehran |
Nearest Cities |
|
| 19 km South West of Gonbad-e pirmohammad, Ilam Province | |
| 26 km South of Galeh-yedarre-hemalakshahi, Ilam Province | |
| 27 km East of Mehran, Ilam Province | |
| 38 km South of Mehr, Ilam Province | |
| 48 km South West of Meymeh, Ilam Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 5 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 13 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 22 km | |
| Number of Phases | 9 |
| RMS | 0.5 |
| Number of Stations | 8 |
| Error in Latitude | >6 km |
| Error in Longitude | 0 km |
| Error in Depth | 25 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 149426 | IIEES SC | GTMR | Z | 38 | 1 | 2019-12-08 08:36:45 | 2019-12-08 02:14:00 | n |
| 149427 | IIEES SC | KHMZ | Z | 16 | 1 | 2019-12-08 08:37:19 | 2019-12-08 02:14:00 | n |
| 149428 | IIEES SC | GHVR | Z | 270 | 1 | 2019-12-08 08:37:06 | 2019-12-08 02:14:00 | n |
| 149429 | IIEES SC | GIDE | Z | 37 | 1 | 2019-12-08 08:36:49 | 2019-12-08 02:14:00 | n |
| 149430 | IIEES SC | CHTH | Z | 13 | 1 | 2019-12-08 08:36:41 | 2019-12-08 02:14:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GTMR | N | IS | I | 2019-12-08 08:36:36 | 0 | y | 255 | 106 | |||
| IIEES SC | GTMR | Z | IP | I | 2019-12-08 08:36:06 | 0.3 | y | 255 | 106 | |||
| IIEES SC | KHMZ | N | IS | I | 2019-12-08 08:36:52 | -0.8 | y | 333 | 78 | |||
| IIEES SC | KHMZ | Z | IP | I | 2019-12-08 08:36:15 | 0.2 | y | 333 | 78 | |||
| IIEES SC | ASAO | N | IS | I | 2019-12-08 08:37:01 | 0.9 | y | 366 | 64 | |||
| IIEES SC | ASAO | Z | IP | I | 2019-12-08 08:36:14 | -4.7 | n | 4 | 366 | 64 | ||
| IIEES SC | GHVR | Z | IP | I | 2019-12-08 08:36:32 | 0.1 | y | 467 | 71 | |||
| IIEES SC | GIDE | Z | IP | I | 2019-12-08 08:36:39 | -0.5 | y | 533 | 37 | |||
| IIEES SC | CHTH | Z | IP | I | 2019-12-08 08:36:39 | -0.3 | y | 533 | 54 | |||
