Magnitude |
:3 |
| Date & Time (UTC) | 2019-12-09 20:12:23.7 |
| Date & Time (Local) | 1398/9/18 23:42:23.7 |

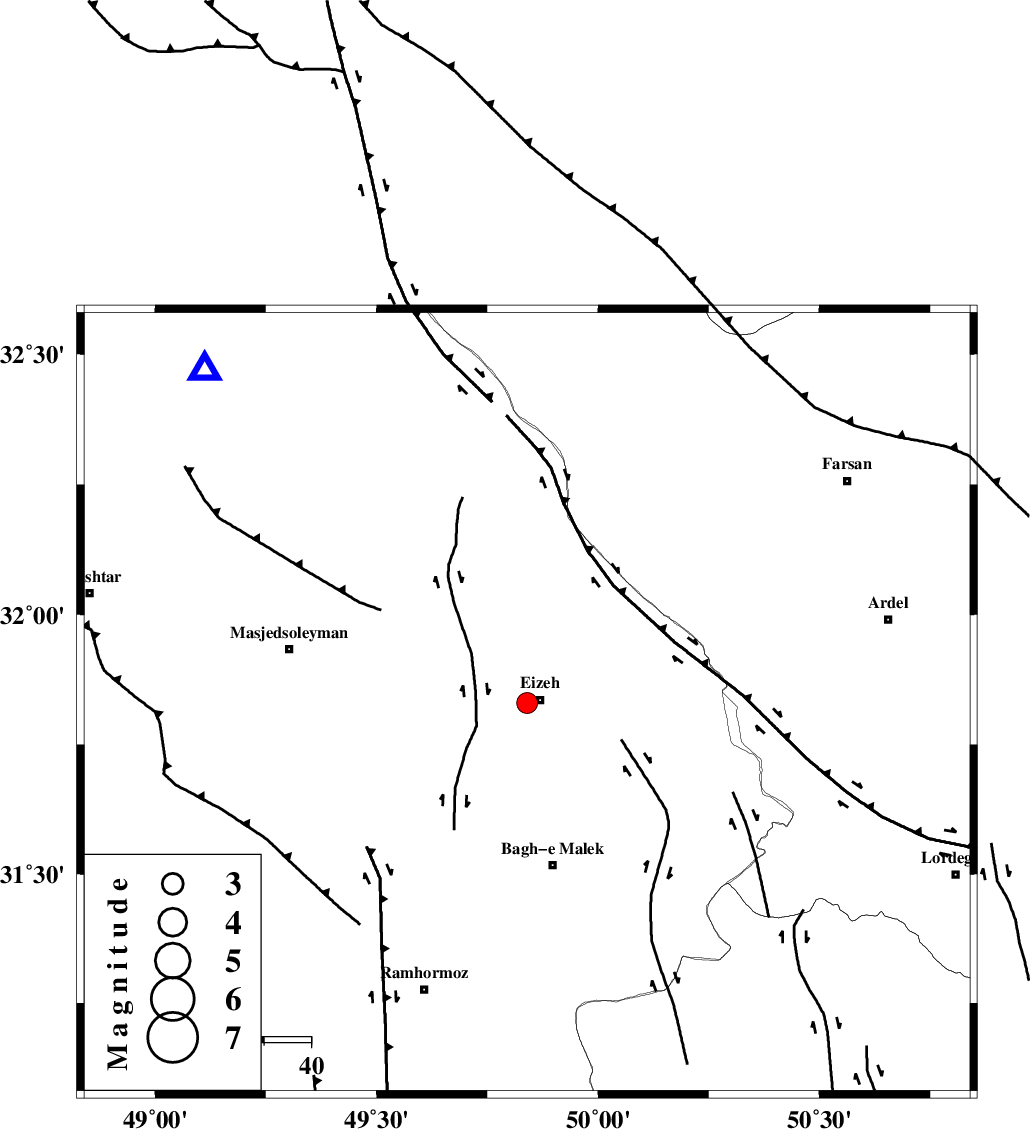

| Location | Lat:31.83 Lon: 49.84 |
| Region | Khoozestan Province, 3 km of Izeh |
Nearest Cities |
|
| 3 km of Izeh, Khoozestan Province | |
| 5 km of Rasvand, Khoozestan Province | |
| 7 km North of Chenarestan, Khoozestan Province | |
| 19 km South of Torshak, Khoozestan Province | |
| 23 km North of Ghaleh tal, Khoozestan Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| MFF2 (Length: 205 km) , Distance to epicenter: 3 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 34 km | |
| DOPOLAN_F (Length: 107 km) , Distance to epicenter: 43 km | |
| Number of Phases | 9 |
| RMS | 0.5 |
| Number of Stations | 9 |
| Error in Latitude | >5 km |
| Error in Longitude | 0 km |
| Error in Depth | 12 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 149451 | IIEES SC | GTMR | Z | 410 | 1 | 2019-12-09 20:13:00 | 2019-12-10 11:36:00 | n |
| 149452 | IIEES SC | KHMZ | Z | 100 | 1 | 2019-12-09 20:13:28 | 2019-12-10 11:36:00 | n |
| 149453 | IIEES SC | NASN | Z | 30 | 1 | 2019-12-09 20:13:57 | 2019-12-10 11:36:00 | n |
| 149454 | IIEES SC | ASAO | Z | 64 | 1 | 2019-12-09 20:13:56 | 2019-12-10 11:36:00 | n |
| 149455 | IIEES SC | GHVR | Z | 220 | 1 | 2019-12-09 20:14:29 | 2019-12-10 11:36:00 | n |
| 149456 | IIEES SC | SNGE | Z | 6.8 | 1 | 2019-12-09 20:14:15 | 2019-12-10 11:36:00 | n |
| 149457 | IIEES SC | QABG | Z | 3.9 | 1 | 2019-12-09 20:14:33 | 2019-12-10 11:36:00 | n |
| 149458 | IIEES SC | YZKH | Z | 9.8 | 1 | 2019-12-09 20:14:46 | 2019-12-10 11:36:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GTMR | Z | IP | I | 2019-12-09 20:12:40 | 0 | y | 100 | 316 | |||
| IIEES SC | KLNJ | Z | IP | I | 2019-12-09 20:12:55 | 0.2 | y | 189 | 119 | |||
| IIEES SC | KHMZ | Z | IP | I | 2019-12-09 20:12:58 | -0.3 | y | 211 | 3 | |||
| IIEES SC | NASN | Z | IP | I | 2019-12-09 20:13:08 | -0.7 | y | 300 | 69 | |||
| IIEES SC | ASAO | Z | IP | I | 2019-12-09 20:13:09 | 0.4 | y | 300 | 3 | |||
| IIEES SC | GHVR | Z | IP | I | 2019-12-09 20:13:12 | 0.8 | y | 322 | 24 | |||
| IIEES SC | SNGE | Z | IP | I | 2019-12-09 20:13:24 | -0.7 | y | 433 | 327 | |||
| IIEES SC | QABG | Z | IP | I | 2019-12-09 20:13:26 | 0.6 | y | 433 | 357 | |||
| IIEES SC | YZKH | Z | IP | I | 2019-12-09 20:13:28 | 0.1 | y | 455 | 82 | |||
