Magnitude |
:3 |
| Date & Time (UTC) | 2019-12-09 23:37:13.1 |
| Date & Time (Local) | 1398/9/19 03:07:13.1 |
| Location | Lat:32.24 Lon: 56.35 |
| Region | Yazd Province, 117 km North-West of Ravar |
Nearest Cities |
|
| 51 km North East of Behabad, Yazd Province | |
| 62 km North East of Benestan, Yazd Province | |
| 65 km North East of Asfih, Yazd Province | |
| 77 km North East of Kushk, Yazd Province | |
| 92 km North East of Basab, Yazd Province | |
| Depth | 10 km |
| Agency | |

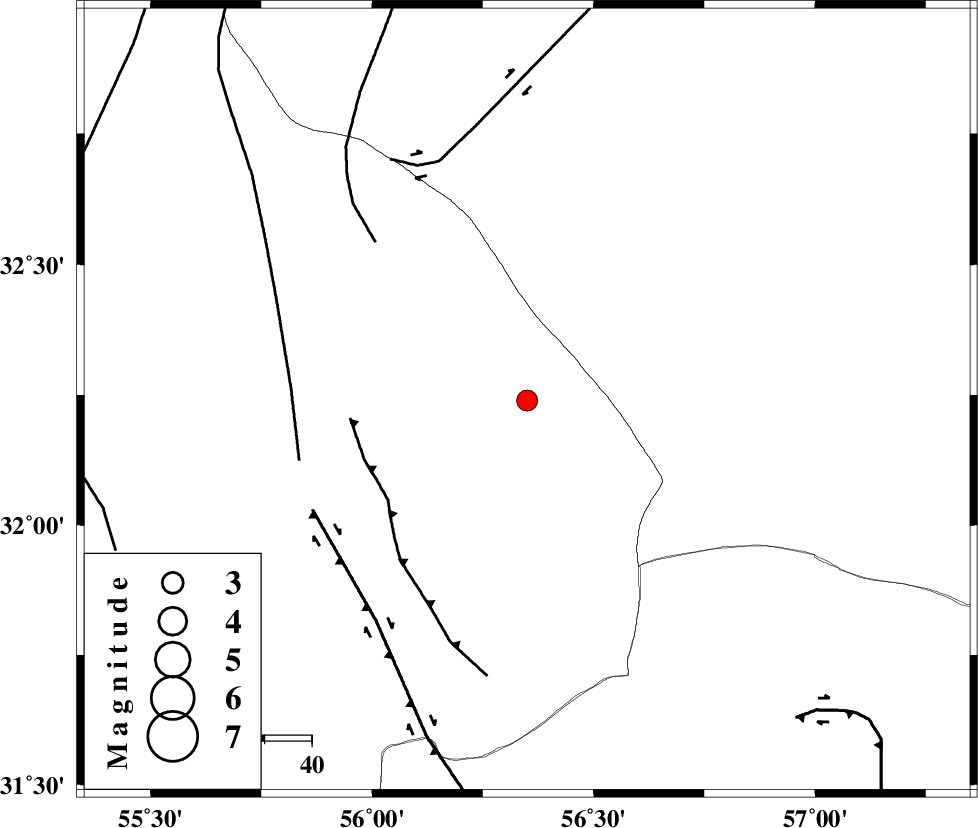

Faults within 150 km: |
|
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 36 km | |
| NAINI_F (Length: 342 km) , Distance to epicenter: 47 km | |
| SARBALA_F (Length: 92 km) , Distance to epicenter: 50 km | |
| Number of Phases | 8 |
| RMS | 0.8 |
| Number of Stations | 8 |
| Error in Latitude | >4 km |
| Error in Longitude | 0 km |
| Error in Depth | 21 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 149459 | IIEES SC | YZKH | Z | 140 | 1 | 2019-12-09 23:38:01 | 2019-12-10 08:43:00 | n |
| 149460 | IIEES SC | TABS | Z | 99 | 1 | 2019-12-09 23:38:04 | 2019-12-10 08:43:00 | n |
| 149461 | IIEES SC | KRBR | Z | 130 | 1 | 2019-12-09 23:38:28 | 2019-12-10 08:43:00 | n |
| 149462 | IIEES SC | BSRN | Z | 56 | 1 | 2019-12-09 23:38:30 | 2019-12-10 08:43:00 | n |
| 149463 | IIEES SC | NASN | Z | 22 | 1 | 2019-12-09 23:38:53 | 2019-12-10 08:43:00 | n |
| 149464 | IIEES SC | SHRT | Z | 15 | 1 | 2019-12-09 23:39:16 | 2019-12-10 08:43:00 | n |
| 149465 | IIEES SC | KLNJ | Z | 6.9 | 1 | 2019-12-09 23:39:30 | 2019-12-10 08:43:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | YZKH | Z | IP | I | 2019-12-09 23:37:39 | -1.4 | y | 166 | 276 | |||
| IIEES SC | TABS | N | IS | I | 2019-12-09 23:38:03 | 0.4 | y | 177 | 25 | |||
| IIEES SC | TABS | Z | IP | I | 2019-12-09 23:37:41 | 0.1 | y | 177 | 25 | |||
| IIEES SC | KRBR | Z | IP | I | 2019-12-09 23:37:53 | 0.4 | y | 255 | 171 | |||
| IIEES SC | BSRN | Z | IP | I | 2019-12-09 23:37:52 | -1.2 | y | 266 | 97 | |||
| IIEES SC | NASN | Z | IP | I | 2019-12-09 23:38:06 | 2.5 | y | 333 | 281 | |||
| IIEES SC | SHRT | Z | IP | I | 2019-12-09 23:38:11 | -0.1 | y | 400 | 67 | |||
| IIEES SC | KLNJ | Z | IP | I | 2019-12-09 23:38:20 | 0.3 | y | 467 | 253 | |||
