Magnitude |
:3 |
| Date & Time (UTC) | 2019-12-11 02:53:15.0 |
| Date & Time (Local) | 1398/9/20 06:23:15.0 |

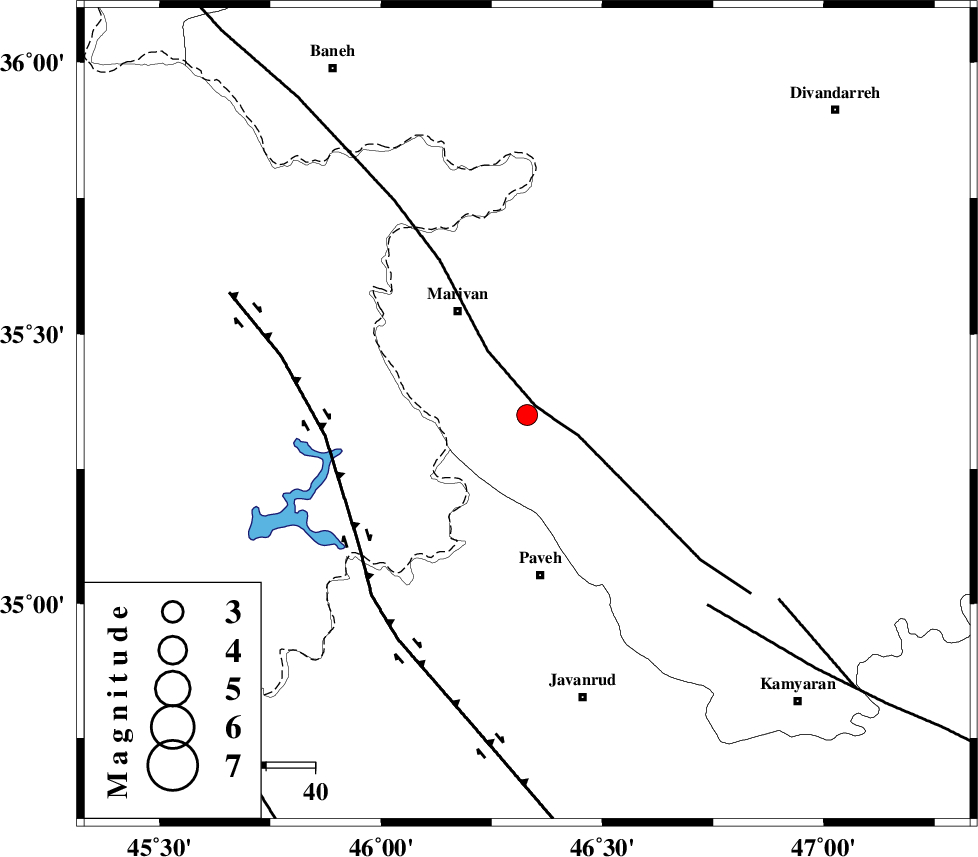

| Location | Lat:35.35 Lon: 46.33 |
| Region | Kurdistan Province, 33 km North of Paveh |
Nearest Cities |
|
| 6 km of Qaleh ji, Kurdistan Province | |
| 9 km North of Razab, Kurdistan Province | |
| 12 km North of Oramantakht, Kurdistan Province | |
| 17 km South West of Pir-e khafaran, Kurdistan Province | |
| 17 km South East of Kanidinar, Kurdistan Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| PIRANSHAHR_F (Length: 253 km) , Distance to epicenter: 3 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 42 km | |
| SARTAKHT_F (Length: 78 km) , Distance to epicenter: 54 km | |
| Number of Phases | 9 |
| RMS | 0.6 |
| Number of Stations | 9 |
| Error in Latitude | >3 km |
| Error in Longitude | 0 km |
| Error in Depth | 7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 149574 | IIEES SC | SRSL | Z | 570 | 1 | 2019-12-11 02:53:58 | 2019-12-11 01:56:00 | n |
| 149575 | IIEES SC | ZNJK | Z | 4.6 | 1 | 2019-12-11 02:54:05 | 2019-12-11 01:56:00 | n |
| 149576 | IIEES SC | ASAO | Z | 22 | 1 | 2019-12-11 02:55:03 | 2019-12-11 01:56:00 | n |
| 149577 | IIEES SC | KHMZ | Z | 23 | 1 | 2019-12-11 02:55:12 | 2019-12-11 01:56:00 | n |
| 149578 | IIEES SC | GRMI | Z | 7.1 | 1 | 2019-12-11 02:55:30 | 2019-12-11 01:56:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | SRSL | N | IS | I | 2019-12-11 02:53:53 | 1.1 | y | 122 | 320 | |||
| IIEES SC | SRSL | Z | IP | I | 2019-12-11 02:53:35 | -0.6 | y | 122 | 320 | |||
| IIEES SC | MAHB | Z | IP | I | 2019-12-11 02:53:41 | -1.5 | y | 166 | 340 | |||
| IIEES SC | ZNJK | Z | IP | I | 2019-12-11 02:53:55 | 0.4 | y | 255 | 55 | |||
| IIEES SC | AZR | Z | IP | I | 2019-12-11 02:53:55 | 0.1 | y | 255 | 353 | |||
| IIEES SC | QABG | Z | IP | I | 2019-12-11 02:54:00 | -0.1 | y | 300 | 82 | |||
| IIEES SC | ASAO | Z | IP | I | 2019-12-11 02:54:06 | -0.1 | y | 344 | 105 | |||
| IIEES SC | KHMZ | Z | IP | I | 2019-12-11 02:54:10 | 0.4 | y | 378 | 118 | |||
| IIEES SC | GRMI | Z | IP | I | 2019-12-11 02:54:13 | 0 | y | 411 | 20 | |||
