Magnitude |
:2.5 |
| Date & Time (UTC) | 2019-12-22 06:21:39.1 |
| Date & Time (Local) | 1398/10/1 09:51:39.1 |

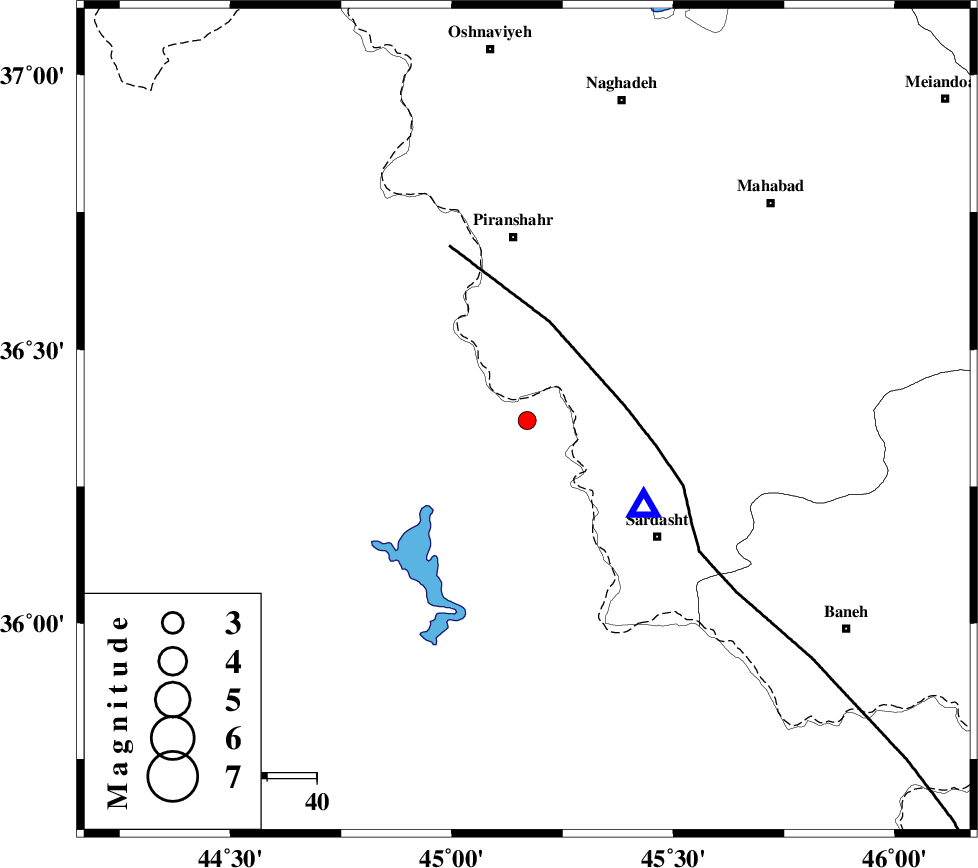

| Location | Lat:36.37 Lon: 45.17 |
| Region | Iraq, 37 km South of Piranshahr |
Nearest Cities |
|
| 18 km West of Mirabad, Azarbaijan Gharbi Province | |
| 21 km South of Kavir, Azarbaijan Gharbi Province | |
| 28 km South of Chiyaneh, Azarbaijan Gharbi Province | |
| 28 km North West of Felas, Azarbaijan Gharbi Province | |
| 28 km North West of Bivaran-e sofla, Azarbaijan Gharbi Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| PIRANSHAHR_F (Length: 253 km) , Distance to epicenter: 20 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 99 km | |
| Number of Phases | 7 |
| RMS | 1.3 |
| Number of Stations | 7 |
| Error in Latitude | >0 km |
| Error in Longitude | 0 km |
| Error in Depth | 8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 149813 | IIEES SC | SRSL | Z | 2300 | 1 | 2019-12-22 06:21:49 | 2019-12-22 12:42:00 | n |
| 149814 | IIEES SC | AZR | Z | 790 | 1 | 2019-12-22 06:22:32 | 2019-12-22 12:42:00 | n |
| 149815 | IIEES SC | SNGE | Z | 9.8 | 1 | 2019-12-22 06:23:44 | 2019-12-22 12:42:00 | n |
| 149816 | IIEES SC | ZNJK | Z | 4 | 1 | 2019-12-22 06:23:25 | 2019-12-22 12:42:00 | n |
| 149817 | IIEES SC | GRMI | Z | 6.1 | 1 | 2019-12-22 06:23:31 | 2019-12-22 12:42:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | SRSL | Z | IP | I | 2019-12-22 06:21:43 | -1.6 | y | 33 | 126 | |||
| IIEES SC | AZR | Z | IP | I | 2019-12-22 06:22:04 | -1.8 | y | 166 | 26 | |||
| IIEES SC | SNGE | Z | IP | I | 2019-12-22 06:22:18 | 0.6 | y | 244 | 126 | |||
| IIEES SC | ZNJK | Z | IP | I | 2019-12-22 06:22:28 | 1.5 | y | 311 | 84 | |||
| IIEES SC | MAKU | Z | IP | I | 2019-12-22 06:22:29 | 0.1 | y | 333 | 353 | |||
| IIEES SC | GRMI | Z | IP | I | 2019-12-22 06:22:33 | 1.4 | y | 366 | 42 | |||
| IIEES SC | QABG | Z | IP | I | 2019-12-22 06:22:38 | 0.5 | y | 400 | 100 | |||
