Magnitude |
:3.3 |
| Date & Time (UTC) | 2019-12-22 11:11:18.8 |
| Date & Time (Local) | 1398/10/1 14:41:18.8 |

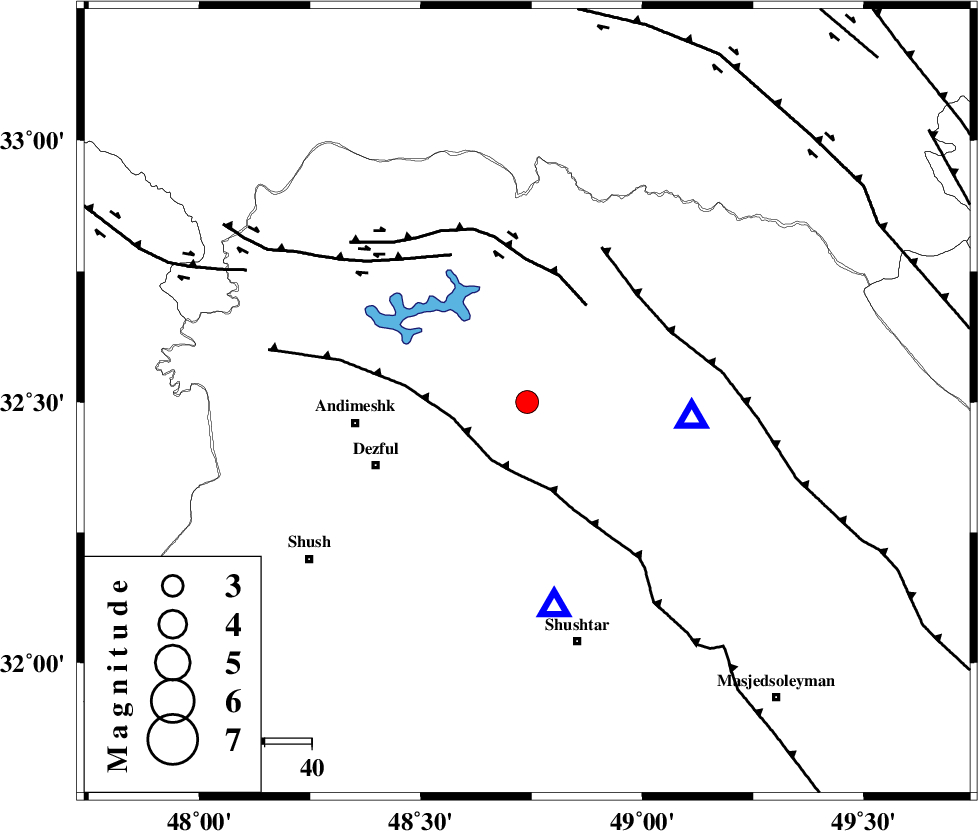

| Location | Lat:32.5 Lon: 48.74 |
| Region | Khoozestan Province, 37 km -East of Andimeshk |
Nearest Cities |
|
| 9 km of Sardasht, Khoozestan Province | |
| 14 km North of Mahur berenji, Khoozestan Province | |
| 29 km North of Gatvand, Khoozestan Province | |
| 34 km South of Shuy, Khoozestan Province | |
| 35 km North East of Dezful, Khoozestan Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 14 km | |
| BALARUD_F_Z2 (Length: 58 km) , Distance to epicenter: 24 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 33 km | |
| Number of Phases | 14 |
| RMS | 0.3 |
| Number of Stations | 14 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 149908 | IIEES SC | GTMR | Z | 2300 | 1 | 2019-12-22 11:11:35 | 2019-12-23 12:49:00 | n |
| 149909 | IIEES SC | KHMZ | Z | 280 | 1 | 2019-12-22 11:12:13 | 2019-12-23 12:49:00 | n |
| 149910 | IIEES SC | ASAO | Z | 110 | 1 | 2019-12-22 11:12:36 | 2019-12-23 12:49:00 | n |
| 149911 | IIEES SC | SNGE | Z | 8.4 | 1 | 2019-12-22 11:13:52 | 2019-12-23 12:49:00 | n |
| 149912 | IIEES SC | KLNJ | Z | 120 | 1 | 2019-12-22 11:13:02 | 2019-12-23 12:49:00 | n |
| 149913 | IIEES SC | GHVR | Z | 260 | 1 | 2019-12-22 11:13:19 | 2019-12-23 12:49:00 | n |
| 149914 | IIEES SC | NASN | Z | 34 | 1 | 2019-12-22 11:13:16 | 2019-12-23 12:49:00 | n |
| 149915 | IIEES SC | THKV | Z | 14 | 1 | 2019-12-22 11:14:03 | 2019-12-23 12:49:00 | n |
| 149916 | IIEES SC | CHTH | Z | 13 | 1 | 2019-12-22 11:12:55 | 2019-12-23 12:49:00 | n |
| 149917 | IIEES SC | DAMV | Z | 4.2 | 1 | 2019-12-22 11:12:57 | 2019-12-23 12:49:00 | n |
| 149918 | IIEES SC | ZNJK | Z | 4.6 | 1 | 2019-12-22 11:14:25 | 2019-12-23 12:49:00 | n |
| 149919 | IIEES SC | SRSL | Z | 23 | 1 | 2019-12-22 11:13:47 | 2019-12-23 12:49:00 | n |
| 149920 | IIEES SC | YZKH | Z | 12 | 1 | 2019-12-22 11:14:11 | 2019-12-23 12:49:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GTMR | Z | IP | I | 2019-12-22 11:11:25 | 0 | y | 33 | 95 | |||
| IIEES SC | KHMZ | Z | IP | I | 2019-12-22 11:11:48 | 0.3 | y | 177 | 40 | |||
| IIEES SC | ASAO | Z | IP | I | 2019-12-22 11:11:59 | 0.5 | y | 255 | 28 | |||
| IIEES SC | SNGE | Z | IP | I | 2019-12-22 11:12:06 | -0.1 | y | 311 | 336 | |||
| IIEES SC | KLNJ | Z | IP | I | 2019-12-22 11:12:06 | 0.3 | y | 311 | 121 | |||
| IIEES SC | GHVR | Z | IP | I | 2019-12-22 11:12:07 | 0.4 | y | 322 | 47 | |||
| IIEES SC | QABG | Z | IP | I | 2019-12-22 11:12:12 | 0.1 | y | 366 | 12 | |||
| IIEES SC | NASN | Z | IP | I | 2019-12-22 11:12:14 | -0.3 | y | 378 | 85 | |||
| IIEES SC | THKV | Z | IP | I | 2019-12-22 11:12:19 | -0.1 | y | 422 | 27 | |||
| IIEES SC | CHTH | Z | IP | I | 2019-12-22 11:12:20 | -0.6 | y | 433 | 30 | |||
| IIEES SC | DAMV | Z | IP | I | 2019-12-22 11:12:23 | -0.4 | y | 455 | 41 | |||
| IIEES SC | ZNJK | Z | IP | I | 2019-12-22 11:12:24 | -0.5 | y | 467 | 359 | |||
| IIEES SC | SRSL | Z | IP | I | 2019-12-22 11:12:30 | 0.2 | y | 511 | 324 | |||
| IIEES SC | YZKH | Z | IP | I | 2019-12-22 11:12:34 | -0.4 | y | 556 | 91 | |||
