Magnitude |
:4.4 |
| Date & Time (UTC) | 2019-12-28 10:20:28.4 |
| Date & Time (Local) | 1398/10/7 13:50:28.4 |

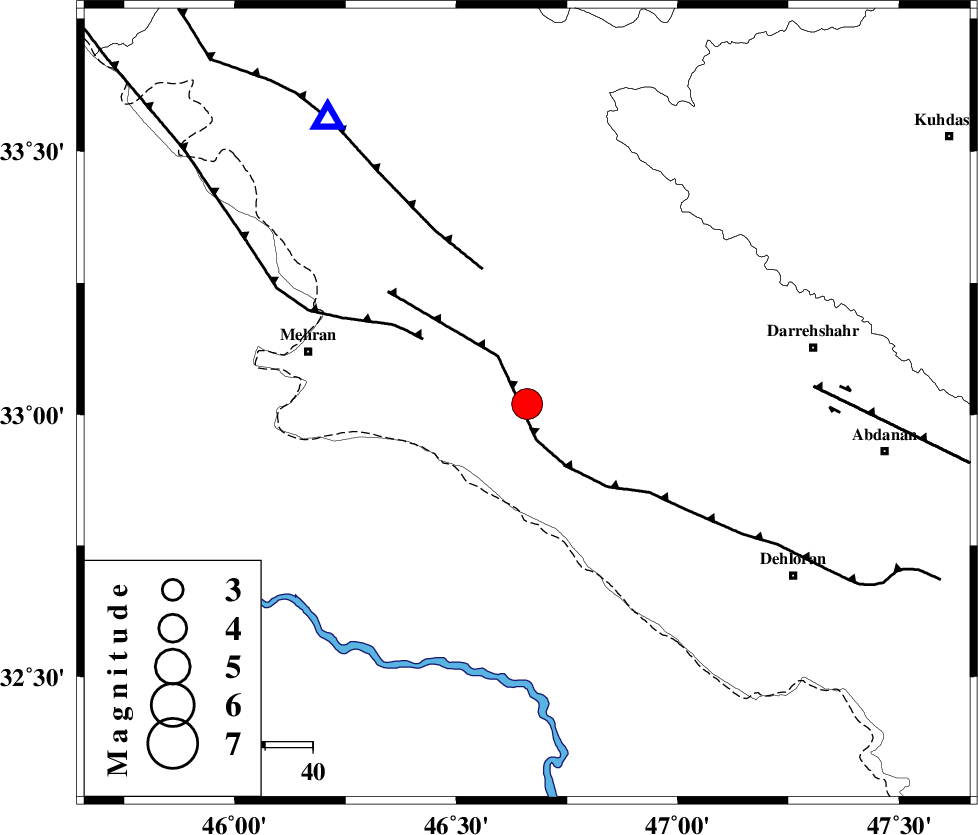

| Location | Lat:33.02 Lon: 46.66 |
| Region | Ilam Province, 47 km -East of Mehran |
Nearest Cities |
|
| 27 km South East of Gonbad-e pirmohammad, Ilam Province | |
| 35 km South West of Meymeh, Ilam Province | |
| 37 km North West of Bishehzar, Ilam Province | |
| 40 km South West of Badreh, Ilam Province | |
| 41 km South East of Galeh-yedarre-hemalakshahi, Ilam Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| MFF6 (Length: 144 km) , Distance to epicenter: 5 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 26 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 30 km | |
| Number of Phases | 30 |
| RMS | 0.5 |
| Number of Stations | 24 |
| Error in Latitude | >3 km |
| Error in Longitude | 0 km |
| Error in Depth | 521 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 150110 | IIEES SC | GTMR | Z | 1400 | 1 | 2019-12-28 10:21:52 | 2019-12-28 02:15:00 | n |
| 150111 | IIEES SC | SNGE | Z | 2100 | 1 | 2019-12-28 10:21:40 | 2019-12-28 02:15:00 | n |
| 150112 | IIEES SC | KHMZ | Z | 560 | 1 | 2019-12-28 10:22:01 | 2019-12-28 02:15:00 | n |
| 150113 | IIEES SC | ASAO | Z | 1200 | 1 | 2019-12-28 10:22:02 | 2019-12-28 02:15:00 | n |
| 150114 | IIEES SC | SRSL | Z | 920 | 1 | 2019-12-28 10:22:23 | 2019-12-28 02:15:00 | n |
| 150115 | IIEES SC | MAHB | Z | 410 | 1 | 2019-12-28 10:22:42 | 2019-12-28 02:15:00 | n |
| 150116 | IIEES SC | ZNJK | Z | 3.8 | 1 | 2019-12-28 10:22:43 | 2019-12-28 02:15:00 | n |
| 150117 | IIEES SC | GHVR | Z | 700 | 1 | 2019-12-28 10:23:05 | 2019-12-28 02:15:00 | n |
| 150118 | IIEES SC | THKV | Z | 130 | 1 | 2019-12-28 10:23:12 | 2019-12-28 02:15:00 | n |
| 150119 | IIEES SC | KLNJ | Z | 260 | 1 | 2019-12-28 10:23:03 | 2019-12-28 02:15:00 | n |
| 150120 | IIEES SC | AZR | Z | 920 | 1 | 2019-12-28 10:23:10 | 2019-12-28 02:15:00 | n |
| 150121 | IIEES SC | GIDE | Z | 240 | 1 | 2019-12-28 10:23:27 | 2019-12-28 02:15:00 | n |
| 150122 | IIEES SC | DAMV | Z | 4.4 | 1 | 2019-12-28 10:23:08 | 2019-12-28 02:15:00 | n |
| 150123 | IIEES SC | DAMV | Z | 91 | 0.7 | 2019-12-28 10:22:10 | 2019-12-28 02:15:00 | n |
| 150124 | IIEES SC | NASN | Z | 71 | 1 | 2019-12-28 10:23:06 | 2019-12-28 02:15:00 | n |
| 150125 | IIEES SC | NASN | Z | 110 | 0.77 | 2019-12-28 10:22:10 | 2019-12-28 02:15:00 | n |
| 150126 | IIEES SC | GRMI | Z | 23 | 1 | 2019-12-28 10:23:10 | 2019-12-28 02:15:00 | n |
| 150127 | IIEES SC | GRMI | Z | 35 | 0.8 | 2019-12-28 10:22:11 | 2019-12-28 02:15:00 | n |
| 150128 | IIEES SC | YZKH | Z | 32 | 1 | 2019-12-28 10:23:57 | 2019-12-28 02:15:00 | n |
| 150129 | IIEES SC | YZKH | Z | 20 | 0.7 | 2019-12-28 10:22:28 | 2019-12-28 02:15:00 | n |
| 150130 | IIEES SC | GLO | Z | 140 | 1 | 2019-12-28 10:23:17 | 2019-12-28 02:15:00 | n |
| 150131 | IIEES SC | GLO | Z | 63 | 0.87 | 2019-12-28 10:22:25 | 2019-12-28 02:15:00 | n |
| 150132 | IIEES SC | SHRO | Z | 9.2 | 0.6 | 2019-12-28 10:22:47 | 2019-12-28 02:15:00 | n |
| 150133 | IIEES SC | TABS | Z | 14 | 1.15 | 2019-12-28 10:23:01 | 2019-12-28 02:15:00 | n |
| 150134 | IIEES SC | BNDS | Z | 40 | 1.01 | 2019-12-28 10:23:07 | 2019-12-28 02:15:00 | n |
| 150135 | IIEES SC | BSRN | Z | 4.2 | 1.09 | 2019-12-28 10:23:11 | 2019-12-28 02:15:00 | n |
| 150136 | IIEES SC | SHRT | Z | 4.3 | 1.01 | 2019-12-28 10:23:19 | 2019-12-28 02:15:00 | n |
| 150137 | IIEES SC | SRVN | Z | 8.6 | 0.71 | 2019-12-28 10:24:14 | 2019-12-28 02:15:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GTMR | Z | IP | I | 2019-12-28 10:21:06 | 0.5 | y | 233 | 105 | |||
| IIEES SC | SNGE | Z | IP | I | 2019-12-28 10:21:06 | 0.2 | y | 233 | 15 | |||
| IIEES SC | KHMZ | Z | IP | I | 2019-12-28 10:21:16 | 0.1 | y | 322 | 76 | |||
| IIEES SC | ASAO | Z | IP | I | 2019-12-28 10:21:21 | 0.3 | y | 355 | 62 | |||
| IIEES SC | SRSL | Z | IP | I | 2019-12-28 10:21:22 | 0.1 | y | 366 | 342 | |||
| IIEES SC | QABG | Z | IP | I | 2019-12-28 10:21:26 | 0.1 | y | 400 | 42 | |||
| IIEES SC | MAHB | Z | IP | I | 2019-12-28 10:21:29 | -0.1 | y | 422 | 348 | |||
| IIEES SC | ZNJK | Z | IP | I | 2019-12-28 10:21:32 | 0.2 | y | 444 | 25 | |||
| IIEES SC | GHVR | Z | IP | I | 2019-12-28 10:21:33 | 0.6 | y | 455 | 69 | |||
| IIEES SC | THKV | Z | IP | I | 2019-12-28 10:21:38 | -1 | y | 500 | 50 | |||
| IIEES SC | KLNJ | Z | IP | I | 2019-12-28 10:21:40 | -0.3 | y | 522 | 116 | |||
| IIEES SC | AZR | Z | IP | I | 2019-12-28 10:21:40 | -0.5 | y | 522 | 353 | |||
| IIEES SC | GIDE | Z | IP | I | 2019-12-28 10:21:42 | 0.3 | y | 522 | 34 | |||
| IIEES SC | DAMV | Z | IP | I | 2019-12-28 10:21:45 | -1.5 | y | 567 | 59 | |||
| IIEES SC | NASN | Z | IP | I | 2019-12-28 10:21:47 | -0.9 | y | 578 | 92 | |||
| IIEES SC | GRMI | Z | IP | I | 2019-12-28 10:21:57 | 0 | y | 656 | 10 | |||
| IIEES SC | YZKH | Z | IP | I | 2019-12-28 10:22:07 | -1.8 | y | 745 | 95 | |||
| IIEES SC | GLO | Z | IP | I | 2019-12-28 10:22:12 | 0.7 | y | 767 | 60 | |||
| IIEES SC | SHRO | Z | IP | I | 2019-12-28 10:22:29 | -1.1 | y | 922 | 69 | |||
| IIEES SC | TABS | Z | IP | I | 2019-12-28 10:22:35 | -1.9 | y | 978 | 86 | |||
| IIEES SC | BNDS | Z | IP | I | 2019-12-28 10:22:52 | -1.8 | y | 1112 | 124 | |||
| IIEES SC | BSRN | Z | IP | I | 2019-12-28 10:23:02 | -0.1 | y | 1178 | 96 | |||
| IIEES SC | SHRT | Z | IP | I | 2019-12-28 10:23:13 | -1.2 | y | 1267 | 87 | |||
| IIEES SC | SRVN | Z | IP | I | 2019-12-28 10:23:59 | -0.5 | y | 1634 | 112 | |||
| IIEES SC | DAMV | Z | IVmB_BB | 2019-12-28 10:22:08 | y | 1 | 567 | 59 | ||||
| IIEES SC | NASN | Z | IVmB_BB | 2019-12-28 10:22:10 | y | 1 | 578 | 92 | ||||
| IIEES SC | GRMI | Z | IVmB_BB | 2019-12-28 10:22:26 | y | 1 | 656 | 10 | ||||
| IIEES SC | GLO | Z | IVmB_BB | 2019-12-28 10:22:46 | y | 1 | 767 | 60 | ||||
| IIEES SC | BNDS | Z | IVmB_BB | 2019-12-28 10:23:00 | y | 1 | 1112 | 124 | ||||
| IIEES SC | SRVN | Z | IVmB_BB | 2019-12-28 10:24:18 | y | 1 | 1634 | 112 | ||||
