Magnitude |
:3.9 |
| Date & Time (UTC) | 2020-01-12 02:50:37.3 |
| Date & Time (Local) | 1398/10/22 06:20:37.3 |

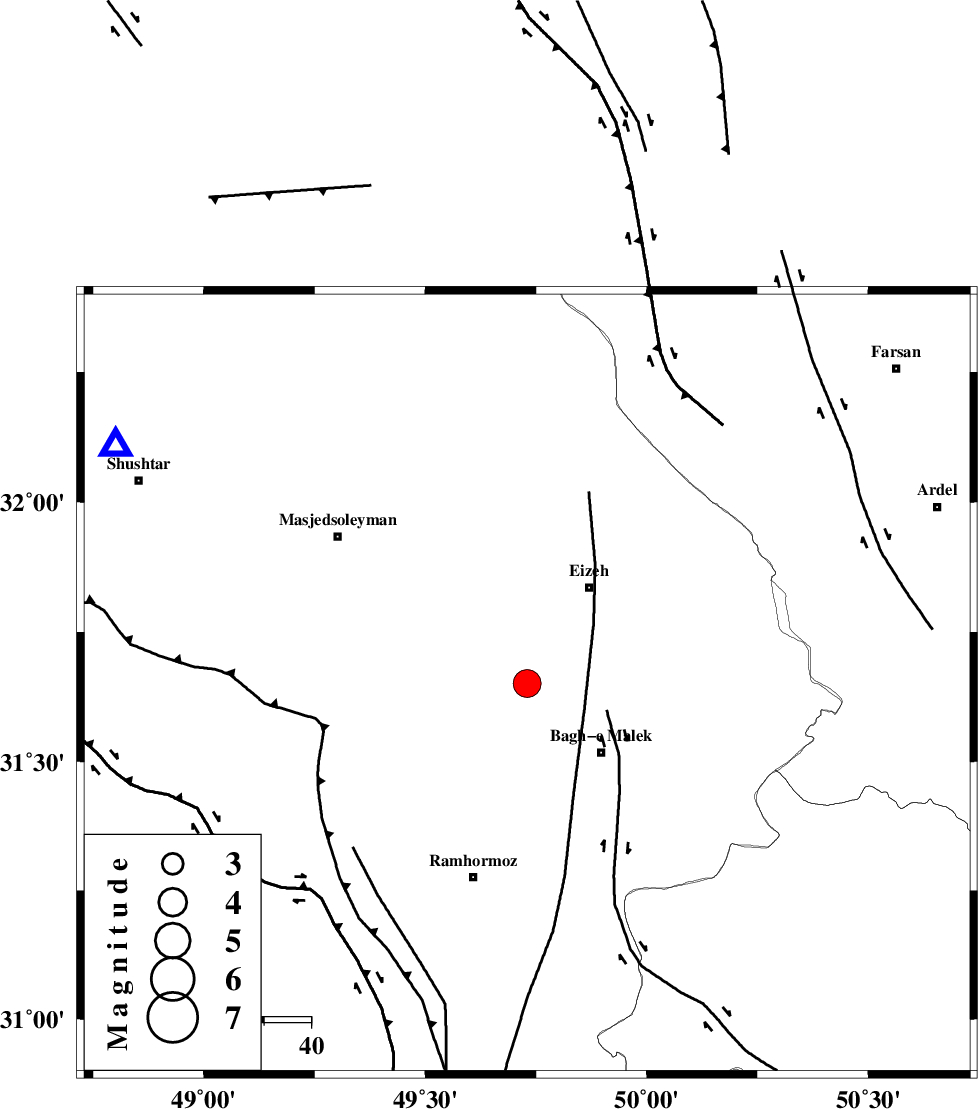

| Location | Lat:31.65 Lon: 49.73 |
| Region | Khoozestan Province, 22 km North-West of Bagh Malek |
Nearest Cities |
|
| 15 km North West of Ghaleh tal, Khoozestan Province | |
| 16 km South of Chenarestan, Khoozestan Province | |
| 21 km North East of Jaru, Khoozestan Province | |
| 22 km North West of Bagh Malek, Khoozestan Province | |
| 23 km North of Midavood-e sofla, Khoozestan Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 13 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 16 km | |
| MFF4 (Length: 62 km) , Distance to epicenter: 45 km | |
| Number of Phases | 14 |
| RMS | 0.4 |
| Number of Stations | 13 |
| Error in Latitude | >3 km |
| Error in Longitude | 0 km |
| Error in Depth | 9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 150943 | IIEES SC | KLNJ | Z | 1000 | 1 | 2020-01-12 02:51:37 | 2020-01-12 10:19:00 | n |
| 150944 | IIEES SC | KHMZ | Z | 430 | 1 | 2020-01-12 02:51:48 | 2020-01-12 10:19:00 | n |
| 150945 | IIEES SC | NASN | Z | 92 | 1 | 2020-01-12 02:52:19 | 2020-01-12 10:19:00 | n |
| 150946 | IIEES SC | ASAO | Z | 240 | 1 | 2020-01-12 02:52:17 | 2020-01-12 10:19:00 | n |
| 150947 | IIEES SC | AHRM | Z | 27 | 1 | 2020-01-12 02:52:29 | 2020-01-12 10:19:00 | n |
| 150948 | IIEES SC | YZKH | Z | 31 | 1 | 2020-01-12 02:53:05 | 2020-01-12 10:19:00 | n |
| 150949 | IIEES SC | THKV | Z | 34 | 1 | 2020-01-12 02:53:11 | 2020-01-12 10:19:00 | n |
| 150950 | IIEES SC | DAMV | Z | 4.1 | 1 | 2020-01-12 02:52:41 | 2020-01-12 10:19:00 | n |
| 150951 | IIEES SC | CHTH | Z | 26 | 1 | 2020-01-12 02:53:07 | 2020-01-12 10:19:00 | n |
| 150952 | IIEES SC | GIDE | Z | 68 | 1 | 2020-01-12 02:53:41 | 2020-01-12 10:19:00 | n |
| 150953 | IIEES SC | GIDE | Z | 52 | 0.72 | 2020-01-12 02:52:25 | 2020-01-12 10:19:00 | n |
| 150954 | IIEES SC | GLO | Z | 73 | 1 | 2020-01-12 02:54:09 | 2020-01-12 10:19:00 | n |
| 150955 | IIEES SC | GLO | Z | 41 | 0.79 | 2020-01-12 02:52:36 | 2020-01-12 10:19:00 | n |
| 150956 | IIEES SC | TABS | Z | 15 | 1 | 2020-01-12 02:54:27 | 2020-01-12 10:19:00 | n |
| 150957 | IIEES SC | TABS | Z | 16 | 0.82 | 2020-01-12 02:52:25 | 2020-01-12 10:19:00 | n |
| 150958 | IIEES SC | SHRO | Z | 2.2 | 1 | 2020-01-12 02:52:49 | 2020-01-12 10:19:00 | n |
| 150959 | IIEES SC | SHRO | Z | 18 | 0.74 | 2020-01-12 02:52:20 | 2020-01-12 10:19:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | KLNJ | Z | IP | I | 2020-01-12 02:51:09 | 0.3 | y | 189 | 112 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-01-12 02:51:14 | 0.1 | y | 233 | 5 | |||
| IIEES SC | NASN | Z | IP | I | 2020-01-12 02:51:25 | 0 | y | 311 | 66 | |||
| IIEES SC | ASAO | Z | IP | I | 2020-01-12 02:51:26 | 0.8 | y | 322 | 5 | |||
| IIEES SC | AHRM | Z | IP | I | 2020-01-12 02:51:28 | -0.1 | y | 344 | 154 | |||
| IIEES SC | YZKH | Z | IP | I | 2020-01-12 02:51:43 | -0.5 | y | 467 | 80 | |||
| IIEES SC | THKV | Z | IP | I | 2020-01-12 02:51:45 | -0.2 | y | 489 | 13 | |||
| IIEES SC | DAMV | Z | IP | I | 2020-01-12 02:51:45 | -0.7 | y | 489 | 25 | |||
| IIEES SC | CHTH | Z | IP | I | 2020-01-12 02:51:47 | 0.9 | y | 489 | 15 | |||
| IIEES SC | GIDE | Z | IP | I | 2020-01-12 02:51:57 | -0.8 | y | 589 | 2 | |||
| IIEES SC | GLO | Z | IP | I | 2020-01-12 02:52:08 | 0.6 | y | 656 | 35 | |||
| IIEES SC | TABS | Z | IP | I | 2020-01-12 02:52:15 | -0.5 | y | 722 | 72 | |||
| IIEES SC | SHRO | Z | IP | I | 2020-01-12 02:52:18 | -0.5 | y | 756 | 50 | |||
| IIEES SC | GLO | Z | IVmB_BB | 2020-01-12 02:52:36 | y | 1 | 656 | 35 | ||||
