Magnitude |
:4.1 |
| Date & Time (UTC) | 2020-01-20 02:50:43.6 |
| Date & Time (Local) | 1398/10/30 06:20:43.6 |

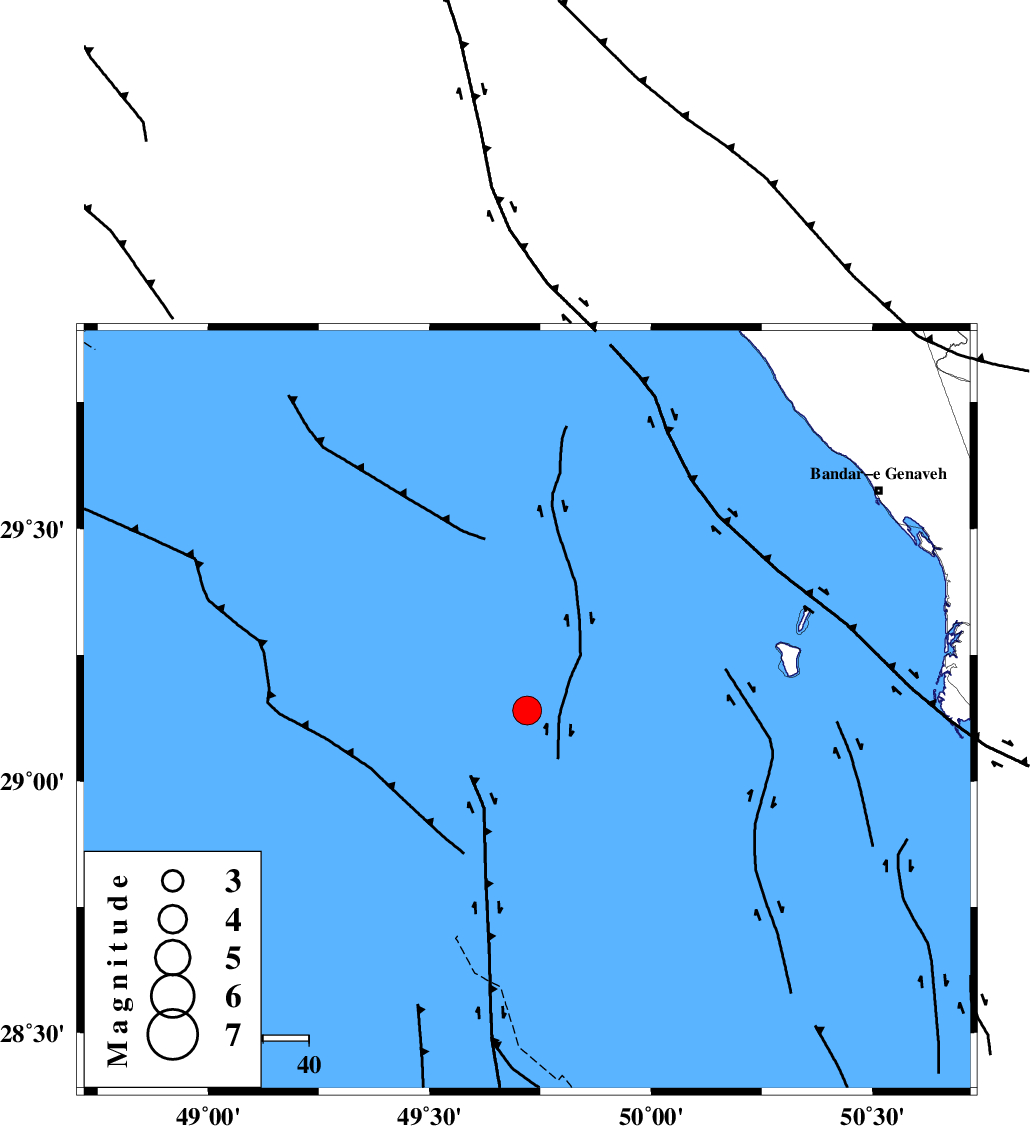

| Location | Lat:29.14 Lon: 49.72 |
| Region | Persian Gulf |
Nearest Cities |
|
| 91 km South West of Bandar-e genaveh, Bushehr Province | |
| 94 km South West of Emamhasan, Bushehr Province | |
| 96 km South West of Bandarehrig, Bushehr Province | |
| 103 km South West of Mohammad salehi, Bushehr Province | |
| 110 km North West of Busheher, Bushehr Province | |
| Depth | 20 km |
| Agency | |
Faults within 150 km: |
|
| ZFF3 (Length: 125 km) , Distance to epicenter: 109 km | |
| RAG_E_SEFID_F (Length: 84 km) , Distance to epicenter: 127 km | |
| ZFF2 (Length: 84 km) , Distance to epicenter: 135 km | |
| Number of Phases | 16 |
| RMS | 0.6 |
| Number of Stations | 14 |
| Error in Latitude | >3 km |
| Error in Longitude | 0 km |
| Error in Depth | 22 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 151130 | IIEES SC | AHRM | Z | 690 | 1 | 2020-01-20 02:51:30 | 2020-01-21 07:48:00 | n |
| 151131 | IIEES SC | KLNJ | Z | 900 | 1 | 2020-01-20 02:52:13 | 2020-01-21 07:48:00 | n |
| 151132 | IIEES SC | AMIS | Z | 780 | 1 | 2020-01-20 02:52:18 | 2020-01-21 07:48:00 | n |
| 151133 | IIEES SC | GTMR | Z | 280 | 1 | 2020-01-20 02:52:49 | 2020-01-21 07:48:00 | n |
| 151134 | IIEES SC | NASN | Z | 56 | 1 | 2020-01-20 02:53:29 | 2020-01-21 07:48:00 | n |
| 151135 | IIEES SC | KHMZ | Z | 58 | 1 | 2020-01-20 02:53:36 | 2020-01-21 07:48:00 | n |
| 151136 | IIEES SC | YZKH | Z | 37 | 1 | 2020-01-20 02:53:41 | 2020-01-21 07:48:00 | n |
| 151137 | IIEES SC | YZKH | Z | 28 | 0.81 | 2020-01-20 02:52:29 | 2020-01-21 07:48:00 | n |
| 151138 | IIEES SC | ILBA | Z | 24 | 1 | 2020-01-20 02:53:32 | 2020-01-21 07:48:00 | n |
| 151139 | IIEES SC | ILBA | Z | 18 | 0.89 | 2020-01-20 02:52:34 | 2020-01-21 07:48:00 | n |
| 151140 | IIEES SC | ASAO | Z | 57 | 1 | 2020-01-20 02:54:13 | 2020-01-21 07:48:00 | n |
| 151141 | IIEES SC | ASAO | Z | 33 | 1.14 | 2020-01-20 02:52:09 | 2020-01-21 07:48:00 | n |
| 151142 | IIEES SC | DAMV | Z | 4.3 | 1 | 2020-01-20 02:54:21 | 2020-01-21 07:48:00 | n |
| 151143 | IIEES SC | DAMV | Z | 40 | 0.76 | 2020-01-20 02:52:41 | 2020-01-21 07:48:00 | n |
| 151144 | IIEES SC | TABS | Z | 15 | 1 | 2020-01-20 02:55:01 | 2020-01-21 07:48:00 | n |
| 151145 | IIEES SC | TABS | Z | 13 | 0.95 | 2020-01-20 02:52:55 | 2020-01-21 07:48:00 | n |
| 151146 | IIEES SC | BSRN | Z | 5 | 0.94 | 2020-01-20 02:53:01 | 2020-01-21 07:48:00 | n |
| 151147 | IIEES SC | SHRO | Z | 14 | 0.95 | 2020-01-20 02:53:01 | 2020-01-21 07:48:00 | n |
| 151148 | IIEES SC | AZR | Z | 13 | 0.56 | 2020-01-20 02:53:18 | 2020-01-21 07:48:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | AHRM | Z | IP | I | 2020-01-20 02:51:09 | 0.1 | y | 155 | 101 | |||
| IIEES SC | KLNJ | Z | IP | I | 2020-01-20 02:51:24 | -0.7 | y | 278 | 41 | |||
| IIEES SC | AMIS | Z | IP | I | 2020-01-20 02:51:26 | 0.4 | y | 289 | 352 | |||
| IIEES SC | GTMR | Z | IP | I | 2020-01-20 02:51:37 | 0 | y | 378 | 351 | |||
| IIEES SC | NASN | Z | IP | I | 2020-01-20 02:51:52 | -1.1 | y | 500 | 36 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-01-20 02:51:54 | -0.2 | y | 511 | 3 | |||
| IIEES SC | YZKH | Z | IP | I | 2020-01-20 02:52:05 | 1 | y | 589 | 52 | |||
| IIEES SC | ILBA | Z | IP | I | 2020-01-20 02:52:04 | -0.7 | y | 600 | 326 | |||
| IIEES SC | ASAO | Z | IP | I | 2020-01-20 02:52:06 | 0.8 | y | 600 | 3 | |||
| IIEES SC | DAMV | Z | IP | I | 2020-01-20 02:52:24 | 0.4 | y | 756 | 16 | |||
| IIEES SC | TABS | Z | IP | I | 2020-01-20 02:52:38 | 0.8 | y | 867 | 55 | |||
| IIEES SC | BSRN | Z | IP | I | 2020-01-20 02:52:49 | 0.3 | y | 956 | 71 | |||
| IIEES SC | SHRO | Z | IP | I | 2020-01-20 02:52:50 | -0.2 | y | 967 | 38 | |||
| IIEES SC | AZR | Z | IP | I | 2020-01-20 02:52:56 | 0.3 | y | 1011 | 340 | |||
| IIEES SC | ILBA | Z | IVmB_BB | 2020-01-20 02:52:38 | y | 1 | 600 | 326 | ||||
| IIEES SC | ASAO | Z | IVmB_BB | 2020-01-20 02:52:08 | y | 1 | 600 | 3 | ||||
