Magnitude |
:3.1 |
| Date & Time (UTC) | 2020-01-20 03:44:51.0 |
| Date & Time (Local) | 1398/10/30 07:14:51.0 |

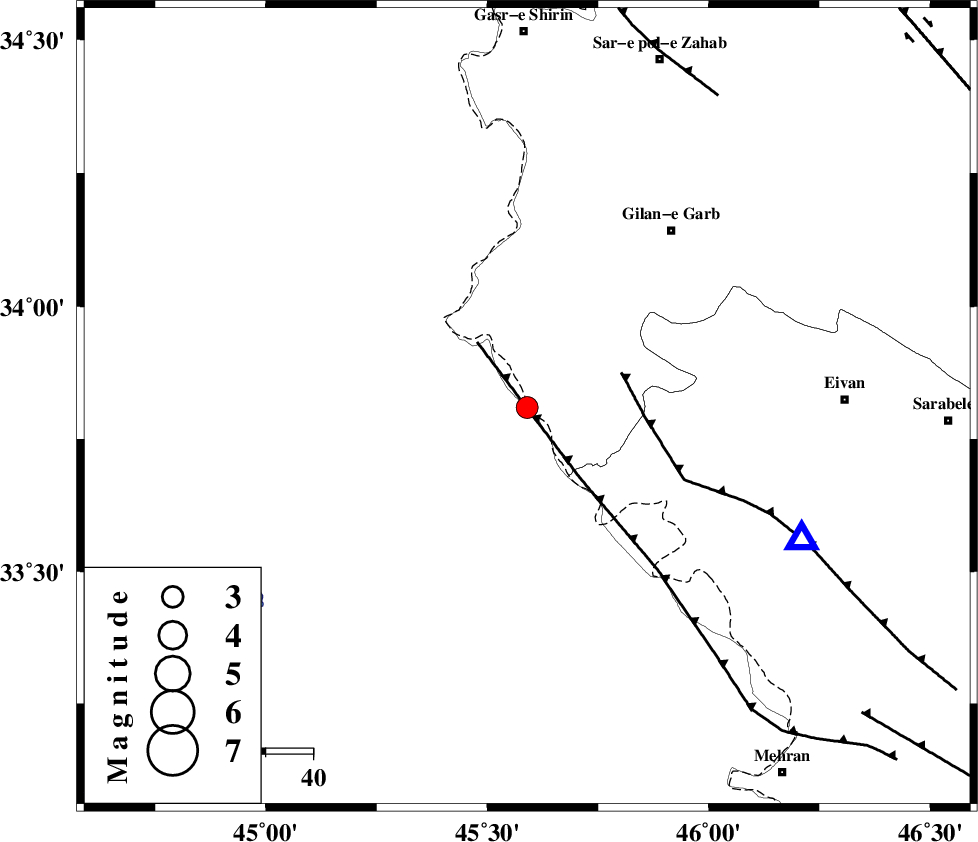

| Location | Lat:33.81 Lon: 45.59 |
| Region | Iraq, 48 km South-West of Gilan-E-Gharb |
Nearest Cities |
|
| 9 km of Sumar, Kermanshah Province | |
| 42 km South West of Nian, Kermanshah Province | |
| 48 km South West of Gilan-E-Gharb, Kermanshah Province | |
| 51 km South West of Teran, Ilam Province | |
| 55 km South West of Qamarali, Kermanshah Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 17 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 21 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 76 km | |
| Number of Phases | 10 |
| RMS | 1.5 |
| Number of Stations | 8 |
| Error in Latitude | >4 km |
| Error in Longitude | 0 km |
| Error in Depth | 14 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 151196 | IIEES SC | ILBA | Z | 86 | 1 | 2020-01-20 03:45:10 | 2020-01-21 02:25:00 | n |
| 151197 | IIEES SC | GTMR | Z | 21 | 1 | 2020-01-20 03:46:40 | 2020-01-21 02:25:00 | n |
| 151198 | IIEES SC | KHMZ | Z | 11 | 1 | 2020-01-20 03:46:36 | 2020-01-21 02:25:00 | n |
| 151199 | IIEES SC | ASAO | Z | 14 | 1 | 2020-01-20 03:46:39 | 2020-01-21 02:25:00 | n |
| 151200 | IIEES SC | AMIS | Z | 30 | 1 | 2020-01-20 03:46:37 | 2020-01-21 02:25:00 | n |
| 151201 | IIEES SC | QABG | Z | 4.2 | 1 | 2020-01-20 03:46:36 | 2020-01-21 02:25:00 | n |
| 151202 | IIEES SC | AZR | Z | 83 | 1 | 2020-01-20 03:47:09 | 2020-01-21 02:25:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | ILBA | N | IS | I | 2020-01-20 03:45:08 | -1.9 | y | 55 | 110 | |||
| IIEES SC | ILBA | Z | IP | I | 2020-01-20 03:45:01 | -0.3 | y | 55 | 110 | |||
| IIEES SC | SNGE | Z | IP | I | 2020-01-20 03:44:29 | -56.7 | n | 4 | 211 | 49 | ||
| IIEES SC | SRSL | Z | IP | I | 2020-01-20 03:46:15 | 42.6 | n | 4 | 266 | 357 | ||
| IIEES SC | GTMR | Z | IP | I | 2020-01-20 03:45:44 | 0.5 | y | 355 | 114 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-01-20 03:45:50 | 1 | y | 400 | 91 | |||
| IIEES SC | ASAO | Z | IP | I | 2020-01-20 03:45:52 | 1.7 | y | 422 | 79 | |||
| IIEES SC | AMIS | Z | IP | I | 2020-01-20 03:45:51 | -0.1 | y | 422 | 124 | |||
| IIEES SC | QABG | Z | IP | I | 2020-01-20 03:45:53 | 1.7 | y | 422 | 60 | |||
| IIEES SC | AZR | Z | IP | I | 2020-01-20 03:45:51 | -1.8 | y | 433 | 5 | |||
