Magnitude |
:3.3 |
| Date & Time (UTC) | 2020-02-01 20:52:02.8 |
| Date & Time (Local) | 1398/11/13 00:22:02.8 |

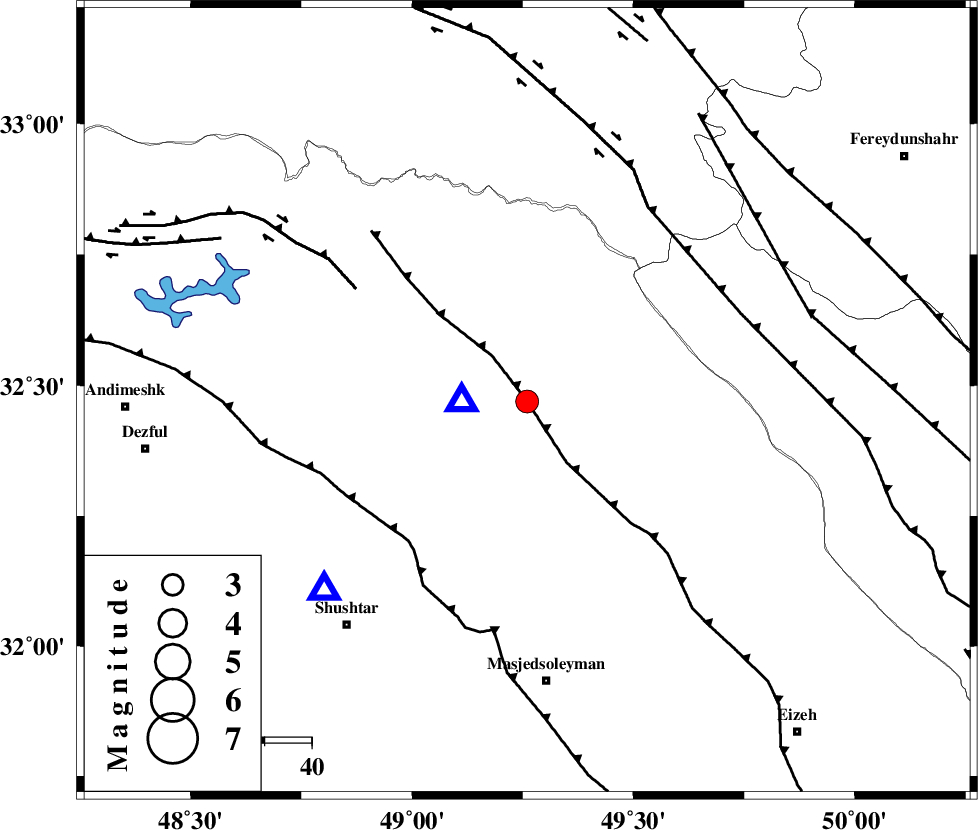

| Location | Lat:32.47 Lon: 49.26 |
| Region | Khoozestan Province, 17 km -East of Lali |
Nearest Cities |
|
| 17 km North East of Lali, Khoozestan Province | |
| 25 km North East of Jaefarabad, Khoozestan Province | |
| 34 km North West of Qale-yekhvaju, Khoozestan Province | |
| 35 km North West of Paabshalal, Khoozestan Province | |
| 40 km East of Sardasht, Khoozestan Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| MFF2 (Length: 205 km) , Distance to epicenter: 0 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 39 km | |
| BALARUD_F_Z2 (Length: 58 km) , Distance to epicenter: 43 km | |
| Number of Phases | 14 |
| RMS | 0.6 |
| Number of Stations | 14 |
| Error in Latitude | >3 km |
| Error in Longitude | 0 km |
| Error in Depth | 5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 151576 | IIEES SC | GTMR | Z | 57000 | 1 | 2020-02-01 20:52:08 | 2020-02-02 11:39:00 | n |
| 151577 | IIEES SC | AMIS | Z | 800 | 1 | 2020-02-01 20:52:40 | 2020-02-02 11:39:00 | n |
| 151578 | IIEES SC | KHMZ | Z | 320 | 1 | 2020-02-01 20:52:53 | 2020-02-02 11:39:00 | n |
| 151579 | IIEES SC | ASAO | Z | 150 | 1 | 2020-02-01 20:53:18 | 2020-02-02 11:39:00 | n |
| 151580 | IIEES SC | KLNJ | Z | 83 | 1 | 2020-02-01 20:53:32 | 2020-02-02 11:39:00 | n |
| 151581 | IIEES SC | GHVR | Z | 93 | 1 | 2020-02-01 20:53:33 | 2020-02-02 11:39:00 | n |
| 151582 | IIEES SC | SNGE | Z | 53 | 1 | 2020-02-01 20:53:46 | 2020-02-02 11:39:00 | n |
| 151583 | IIEES SC | QABG | Z | 8.5 | 1 | 2020-02-01 20:53:54 | 2020-02-02 11:39:00 | n |
| 151584 | IIEES SC | THKV | Z | 17 | 1 | 2020-02-01 20:54:44 | 2020-02-02 11:39:00 | n |
| 151585 | IIEES SC | CHTH | Z | 20 | 1 | 2020-02-01 20:54:05 | 2020-02-02 11:39:00 | n |
| 151586 | IIEES SC | DAMV | Z | 6.4 | 1 | 2020-02-01 20:54:03 | 2020-02-02 11:39:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GTMR | N | IS | I | 2020-02-01 20:52:08 | 0.1 | y | 11 | 270 | |||
| IIEES SC | GTMR | Z | IP | I | 2020-02-01 20:52:05 | -0.4 | y | 11 | 270 | |||
| IIEES SC | AMIS | E | IS | I | 2020-02-01 20:52:30 | 0.8 | y | 88 | 178 | |||
| IIEES SC | AMIS | Z | IP | I | 2020-02-01 20:52:17 | -0.6 | y | 88 | 178 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-02-01 20:52:29 | 0.4 | y | 155 | 25 | |||
| IIEES SC | ASAO | Z | IP | I | 2020-02-01 20:52:42 | 1.3 | y | 244 | 17 | |||
| IIEES SC | KLNJ | Z | IP | I | 2020-02-01 20:52:44 | -0.4 | y | 278 | 126 | |||
| IIEES SC | GHVR | Z | IP | I | 2020-02-01 20:52:47 | 0.5 | y | 289 | 40 | |||
| IIEES SC | SNGE | Z | IP | I | 2020-02-01 20:52:55 | 2.2 | y | 344 | 329 | |||
| IIEES SC | QABG | Z | IP | I | 2020-02-01 20:52:56 | 0.2 | y | 355 | 5 | |||
| IIEES SC | THKV | Z | IP | I | 2020-02-01 20:53:04 | 1.9 | y | 411 | 21 | |||
| IIEES SC | CHTH | Z | IP | I | 2020-02-01 20:53:00 | -2.8 | y | 422 | 24 | |||
| IIEES SC | DAMV | Z | IP | I | 2020-02-01 20:53:05 | 0.6 | y | 433 | 36 | |||
| IIEES SC | SRSL | Z | IP | I | 2020-02-01 20:53:18 | -0.7 | y | 544 | 320 | |||
