Magnitude |
:3.8 |
| Date & Time (UTC) | 2020-02-02 16:53:00.1 |
| Date & Time (Local) | 1398/11/13 20:23:00.1 |

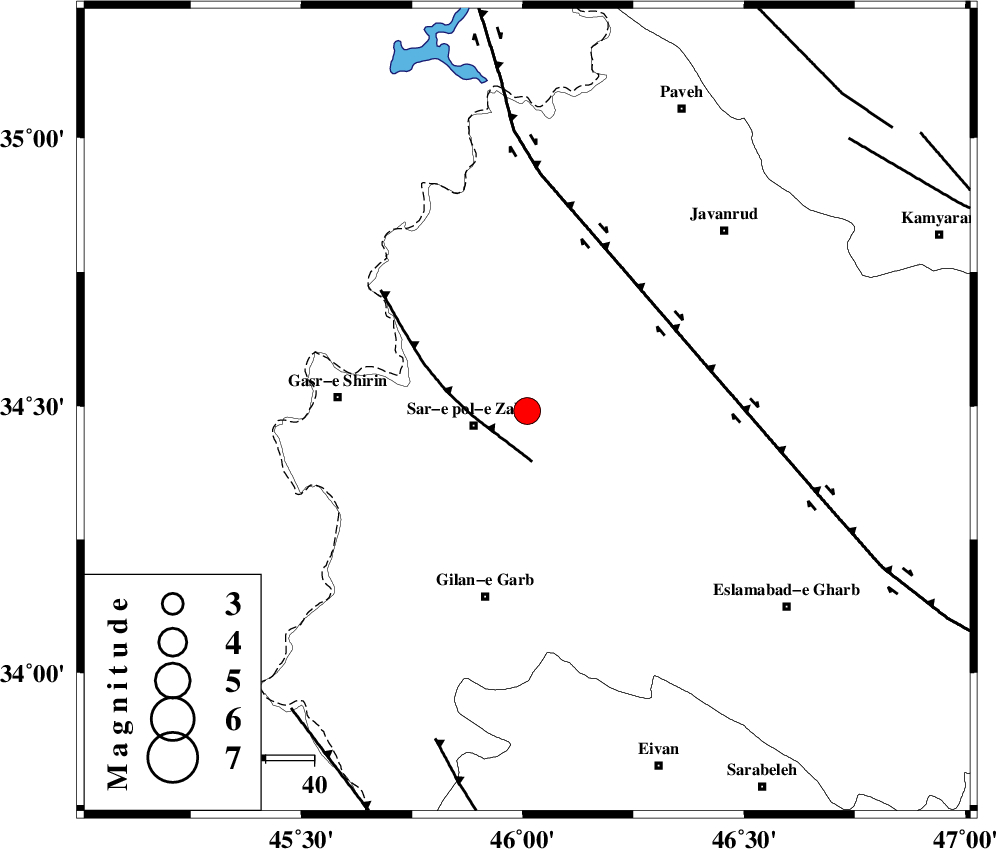

| Location | Lat:34.49 Lon: 46.01 |
| Region | Kermanshah Province, 11 km -East of Sar-e pol-e zahab |
Nearest Cities |
|
| 6 km North of Rijab, Kermanshah Province | |
| 11 km North East of Sar-e pol-e zahab, Kermanshah Province | |
| 12 km North of Tarkveys, Kermanshah Province | |
| 18 km South of Bazmirabad, Kermanshah Province | |
| 21 km North East of Qareh belagh, Kermanshah Province | |
| Depth | 17 km |
| Agency | |
Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 11 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 35 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 71 km | |
| Number of Phases | 17 |
| RMS | 0.4 |
| Number of Stations | 17 |
| Error in Latitude | >3 km |
| Error in Longitude | 0 km |
| Error in Depth | 6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 151600 | IIEES SC | SNGE | Z | 1500 | 1 | 2020-02-02 16:53:44 | 2020-02-03 09:26:00 | n |
| 151601 | IIEES SC | SRSL | Z | 1900 | 1 | 2020-02-02 16:54:01 | 2020-02-03 09:26:00 | n |
| 151602 | IIEES SC | ZNJK | Z | 4.1 | 1 | 2020-02-02 16:53:53 | 2020-02-03 09:26:00 | n |
| 151603 | IIEES SC | AZR | Z | 1900 | 1 | 2020-02-02 16:54:55 | 2020-02-03 09:26:00 | n |
| 151604 | IIEES SC | GTMR | Z | 120 | 1 | 2020-02-02 16:54:58 | 2020-02-03 09:26:00 | n |
| 151605 | IIEES SC | ASAO | Z | 110 | 1 | 2020-02-02 16:54:56 | 2020-02-03 09:26:00 | n |
| 151606 | IIEES SC | KHMZ | Z | 98 | 1 | 2020-02-02 16:54:53 | 2020-02-03 09:26:00 | n |
| 151607 | IIEES SC | AMIS | Z | 130 | 1 | 2020-02-02 16:54:50 | 2020-02-03 09:26:00 | n |
| 151608 | IIEES SC | GIDE | Z | 120 | 1 | 2020-02-02 16:55:20 | 2020-02-03 09:26:00 | n |
| 151609 | IIEES SC | THKV | Z | 40 | 1 | 2020-02-02 16:55:30 | 2020-02-03 09:26:00 | n |
| 151610 | IIEES SC | GHVR | Z | 100 | 1 | 2020-02-02 16:55:30 | 2020-02-03 09:26:00 | n |
| 151611 | IIEES SC | CHTH | Z | 26 | 1 | 2020-02-02 16:55:30 | 2020-02-03 09:26:00 | n |
| 151612 | IIEES SC | GRMI | Z | 21 | 1 | 2020-02-02 16:55:40 | 2020-02-03 09:26:00 | n |
| 151613 | IIEES SC | DAMV | Z | 5.2 | 1 | 2020-02-02 16:55:33 | 2020-02-03 09:26:00 | n |
| 151614 | IIEES SC | DAMV | Z | 31 | 0.7 | 2020-02-02 16:54:33 | 2020-02-03 09:26:00 | n |
| 151615 | IIEES SC | KLNJ | Z | 31 | 1 | 2020-02-02 16:55:42 | 2020-02-03 09:26:00 | n |
| 151616 | IIEES SC | KLNJ | Z | 9.3 | 0.54 | 2020-02-02 16:54:39 | 2020-02-03 09:26:00 | n |
| 151617 | IIEES SC | NASN | Z | 15 | 1 | 2020-02-02 16:56:08 | 2020-02-03 09:26:00 | n |
| 151618 | IIEES SC | NASN | Z | 9.6 | 0.88 | 2020-02-02 16:54:54 | 2020-02-03 09:26:00 | n |
| 151619 | IIEES SC | TABS | Z | 5.4 | 0.95 | 2020-02-02 16:55:33 | 2020-02-03 09:26:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | SNGE | Z | IP | I | 2020-02-02 16:53:23 | 0 | y | 144 | 61 | |||
| IIEES SC | SRSL | Z | IP | I | 2020-02-02 16:53:32 | 0 | y | 200 | 345 | |||
| IIEES SC | ZNJK | Z | IP | I | 2020-02-02 16:53:49 | -0.7 | y | 344 | 45 | |||
| IIEES SC | AZR | Z | IP | I | 2020-02-02 16:53:51 | 0.2 | y | 355 | 360 | |||
| IIEES SC | GTMR | Z | IP | I | 2020-02-02 16:53:52 | -0.1 | y | 366 | 128 | |||
| IIEES SC | ASAO | Z | IP | I | 2020-02-02 16:53:53 | 0.3 | y | 366 | 89 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-02-02 16:53:54 | 0.3 | y | 378 | 103 | |||
| IIEES SC | AMIS | Z | IP | I | 2020-02-02 16:54:01 | 0 | y | 433 | 136 | |||
| IIEES SC | GIDE | Z | IP | I | 2020-02-02 16:54:03 | 0.5 | y | 444 | 53 | |||
| IIEES SC | THKV | Z | IP | I | 2020-02-02 16:54:06 | 0.2 | y | 467 | 70 | |||
| IIEES SC | GHVR | Z | IP | I | 2020-02-02 16:54:06 | -0.4 | y | 478 | 90 | |||
| IIEES SC | CHTH | Z | IP | I | 2020-02-02 16:54:09 | 0.4 | y | 489 | 71 | |||
| IIEES SC | GRMI | Z | IP | I | 2020-02-02 16:54:10 | -0.2 | y | 511 | 19 | |||
| IIEES SC | DAMV | Z | IP | I | 2020-02-02 16:54:17 | 0.8 | y | 556 | 77 | |||
| IIEES SC | KLNJ | Z | IP | I | 2020-02-02 16:54:27 | -1.5 | y | 644 | 126 | |||
| IIEES SC | NASN | Z | IP | I | 2020-02-02 16:54:28 | -1 | y | 656 | 107 | |||
| IIEES SC | TABS | Z | IP | I | 2020-02-02 16:55:15 | 0.3 | y | 1034 | 95 | |||
