Magnitude |
:3.4 |
| Date & Time (UTC) | 2020-02-04 02:27:41.2 |
| Date & Time (Local) | 1398/11/15 05:57:41.2 |

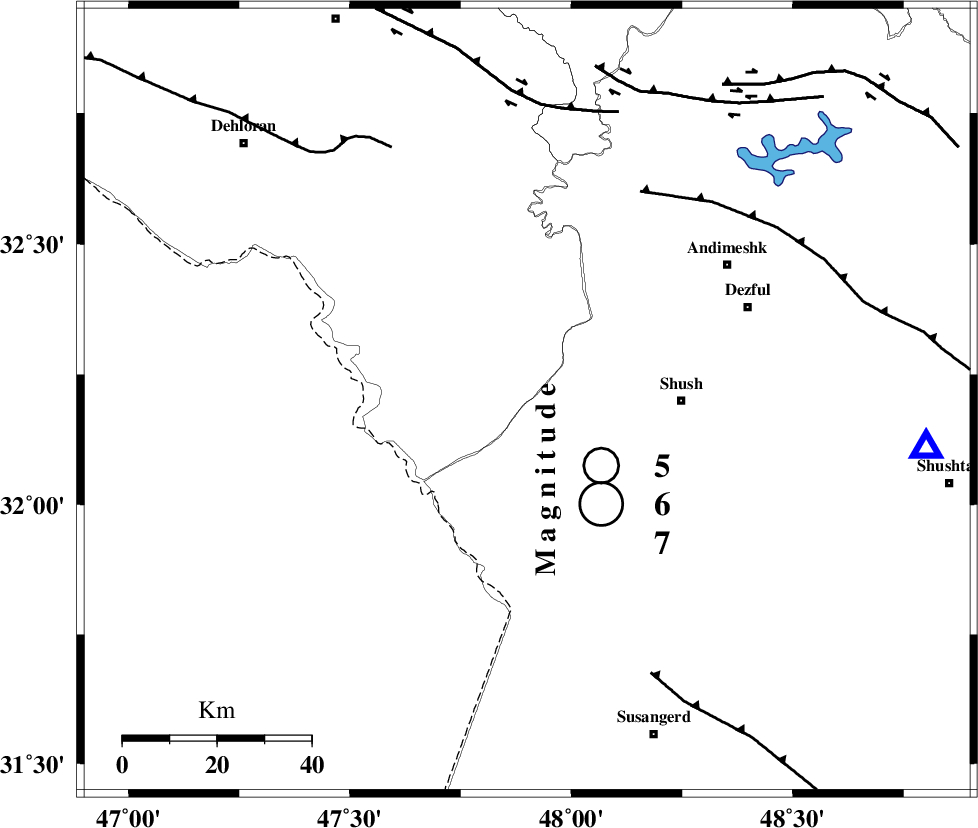

| Location | Lat:32.2 Lon: 47.9 |
| Region | Ilam Province, 33 km -West of Shush |
Nearest Cities |
|
| 33 km West of Shush, Khoozestan Province | |
| 36 km North West of Amaleh teimur, Khoozestan Province | |
| 51 km South West of Dezful, Khoozestan Province | |
| 51 km West of Shamsabad, Khoozestan Province | |
| 51 km South West of Andimeshk, Khoozestan Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 51 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 61 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 63 km | |
| Number of Phases | 11 |
| RMS | 0.4 |
| Number of Stations | 10 |
| Error in Latitude | >4 km |
| Error in Longitude | 0 km |
| Error in Depth | 10 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 151663 | IIEES SC | AMR2 | Z | 850 | 1 | 2020-02-04 02:28:22 | 2020-02-05 12:32:00 | n |
| 151664 | IIEES SC | GTMR | Z | 460 | 1 | 2020-02-04 02:28:21 | 2020-02-05 12:32:00 | n |
| 151665 | IIEES SC | AMIS | Z | 870 | 1 | 2020-02-04 02:28:26 | 2020-02-05 12:32:00 | n |
| 151666 | IIEES SC | KHMZ | Z | 85 | 1 | 2020-02-04 02:29:00 | 2020-02-05 12:32:00 | n |
| 151667 | IIEES SC | ASAO | Z | 80 | 1 | 2020-02-04 02:29:22 | 2020-02-05 12:32:00 | n |
| 151668 | IIEES SC | KLNJ | Z | 52 | 1 | 2020-02-04 02:29:52 | 2020-02-05 12:32:00 | n |
| 151669 | IIEES SC | GHVR | Z | 53 | 1 | 2020-02-04 02:29:46 | 2020-02-05 12:32:00 | n |
| 151670 | IIEES SC | NASN | Z | 12 | 1 | 2020-02-04 02:30:04 | 2020-02-05 12:32:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | AMR2 | Z | IP | I | 2020-02-04 02:27:53 | 0 | y | 66 | 251 | |||
| IIEES SC | GTMR | Z | IP | I | 2020-02-04 02:28:00 | -0.3 | y | 122 | 75 | |||
| IIEES SC | AMIS | Z | IP | I | 2020-02-04 02:28:05 | 0.3 | y | 144 | 114 | |||
| IIEES SC | AMIS | Z | IS | I | 2020-02-04 02:28:23 | 0.3 | y | 144 | 114 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-02-04 02:28:21 | 0.1 | y | 255 | 48 | |||
| IIEES SC | SNGE | Z | IP | I | 2020-02-04 02:28:33 | 4 | n | 4 | 322 | 351 | ||
| IIEES SC | ASAO | Z | IP | I | 2020-02-04 02:28:30 | 0 | y | 322 | 37 | |||
| IIEES SC | KLNJ | Z | IP | I | 2020-02-04 02:28:35 | -1.1 | y | 378 | 111 | |||
| IIEES SC | GHVR | Z | IP | I | 2020-02-04 02:28:39 | 0 | y | 400 | 51 | |||
| IIEES SC | QABG | Z | IP | I | 2020-02-04 02:28:42 | 1 | y | 422 | 22 | |||
| IIEES SC | NASN | Z | IP | I | 2020-02-04 02:28:46 | -1 | y | 467 | 82 | |||
