Magnitude |
:3.8 |
| Date & Time (UTC) | 2020-02-14 07:53:21.1 |
| Date & Time (Local) | 1398/11/25 11:23:21.1 |
| Location | Lat:31.6 Lon: 49.97 |
| Region | Khoozestan Province, 11 km of Bagh Malek |
Nearest Cities |
|
| 6 km North of Abolabbas, Khoozestan Province | |
| 8 km of Ghaleh tal, Khoozestan Province | |
| 11 km North of Bagh Malek, Khoozestan Province | |
| 28 km South East of Chenarestan, Khoozestan Province | |
| 28 km South East of Izeh, Khoozestan Province | |
| Depth | 10 km |
| Agency | |

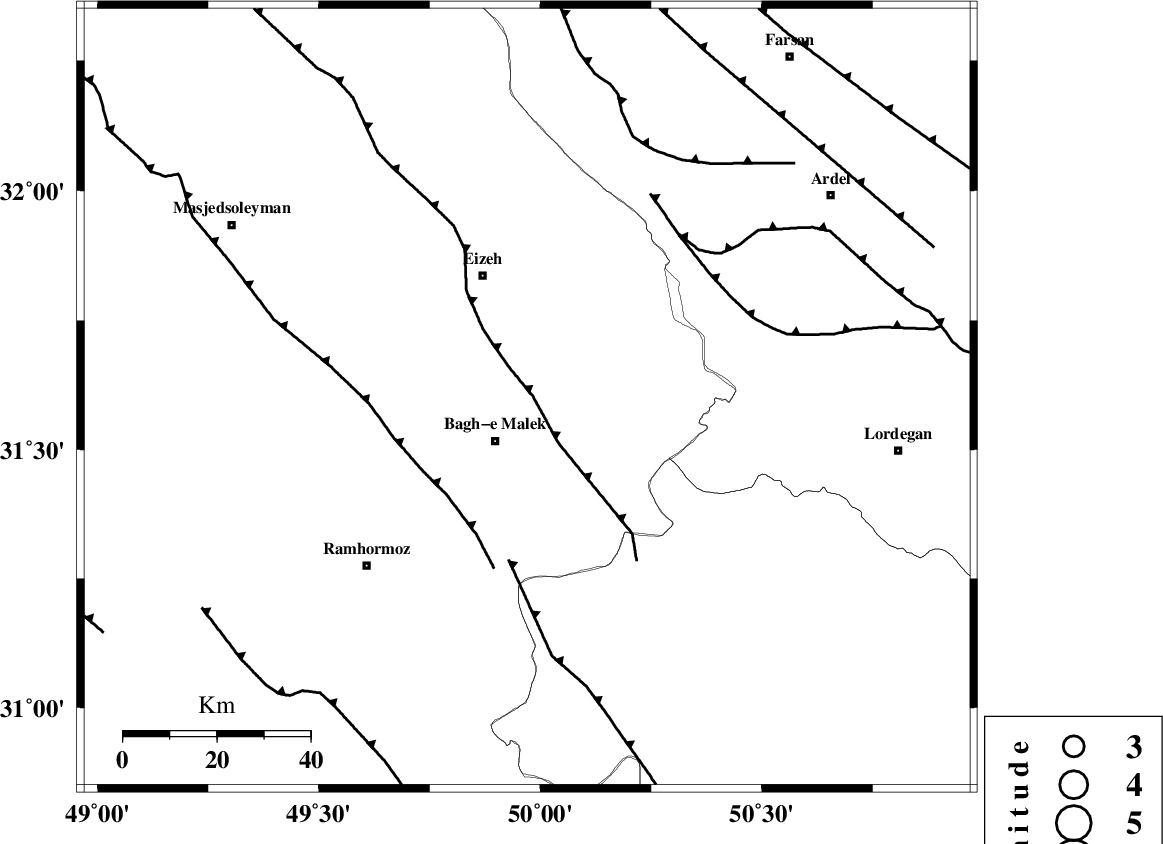

Faults within 150 km: |
|
| MFF2 (Length: 205 km) , Distance to epicenter: 1 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 27 km | |
| MFF4 (Length: 62 km) , Distance to epicenter: 35 km | |
| Number of Phases | 27 |
| RMS | 0.5 |
| Number of Stations | 23 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 151767 | IIEES SC | AMIS | Z | 10000 | 1 | 2020-02-14 07:53:48 | 2020-02-15 12:44:00 | n |
| 151768 | IIEES SC | GTMR | Z | 3200 | 1 | 2020-02-14 07:54:02 | 2020-02-15 12:44:00 | n |
| 151769 | IIEES SC | KLNJ | Z | 2700 | 1 | 2020-02-14 07:54:17 | 2020-02-15 12:44:00 | n |
| 151770 | IIEES SC | KHMZ | Z | 670 | 1 | 2020-02-14 07:54:30 | 2020-02-15 12:44:00 | n |
| 151771 | IIEES SC | NASN | Z | 170 | 1 | 2020-02-14 07:54:59 | 2020-02-15 12:44:00 | n |
| 151772 | IIEES SC | ASAO | Z | 340 | 1 | 2020-02-14 07:55:04 | 2020-02-15 12:44:00 | n |
| 151773 | IIEES SC | AHRM | Z | 39 | 1 | 2020-02-14 07:55:06 | 2020-02-15 12:44:00 | n |
| 151774 | IIEES SC | GHVR | Z | 350 | 1 | 2020-02-14 07:55:08 | 2020-02-15 12:44:00 | n |
| 151775 | IIEES SC | YZKH | Z | 67 | 1 | 2020-02-14 07:55:41 | 2020-02-15 12:44:00 | n |
| 151776 | IIEES SC | QABG | Z | 21 | 1 | 2020-02-14 07:55:42 | 2020-02-15 12:44:00 | n |
| 151777 | IIEES SC | SNGE | Z | 120 | 1 | 2020-02-14 07:55:50 | 2020-02-15 12:44:00 | n |
| 151778 | IIEES SC | DAMV | Z | 3.9 | 1 | 2020-02-14 07:55:59 | 2020-02-15 12:44:00 | n |
| 151779 | IIEES SC | THKV | Z | 36 | 1 | 2020-02-14 07:56:06 | 2020-02-15 12:44:00 | n |
| 151780 | IIEES SC | CHTH | Z | 48 | 1 | 2020-02-14 07:55:53 | 2020-02-15 12:44:00 | n |
| 151781 | IIEES SC | GLO | Z | 110 | 1 | 2020-02-14 07:57:03 | 2020-02-15 12:44:00 | n |
| 151782 | IIEES SC | GLO | Z | 75 | 0.92 | 2020-02-14 07:54:55 | 2020-02-15 12:44:00 | n |
| 151783 | IIEES SC | KRBR | Z | 24 | 1 | 2020-02-14 07:56:26 | 2020-02-15 12:44:00 | n |
| 151784 | IIEES SC | KRBR | Z | 16 | 0.44 | 2020-02-14 07:55:09 | 2020-02-15 12:44:00 | n |
| 151785 | IIEES SC | TABS | Z | 2.4 | 1 | 2020-02-14 07:56:03 | 2020-02-15 12:44:00 | n |
| 151786 | IIEES SC | TABS | Z | 77 | 0.71 | 2020-02-14 07:54:57 | 2020-02-15 12:44:00 | n |
| 151787 | IIEES SC | SHRO | Z | 2.6 | 1 | 2020-02-14 07:56:48 | 2020-02-15 12:44:00 | n |
| 151788 | IIEES SC | SHRO | Z | 20 | 0.8 | 2020-02-14 07:55:05 | 2020-02-15 12:44:00 | n |
| 151789 | IIEES SC | BNDS | Z | 950 | 1 | 2020-02-14 07:56:01 | 2020-02-15 12:44:00 | n |
| 151790 | IIEES SC | BNDS | Z | 32 | 0.69 | 2020-02-14 07:55:19 | 2020-02-15 12:44:00 | n |
| 151791 | IIEES SC | BSRN | Z | 6.2 | 1 | 2020-02-14 07:57:45 | 2020-02-15 12:44:00 | n |
| 151792 | IIEES SC | BSRN | Z | 3.5 | 0.75 | 2020-02-14 07:55:26 | 2020-02-15 12:44:00 | n |
| 151793 | IIEES SC | MRVT | Z | 9.1 | 1 | 2020-02-14 07:55:50 | 2020-02-15 12:44:00 | n |
| 151794 | IIEES SC | MRVT | Z | 6.1 | 0.62 | 2020-02-14 07:55:18 | 2020-02-15 12:44:00 | n |
| 151795 | IIEES SC | SHRT | Z | 7 | 0.78 | 2020-02-14 07:55:58 | 2020-02-15 12:44:00 | n |
| 151796 | IIEES SC | TBJM | Z | 8.6 | 0.76 | 2020-02-14 07:55:56 | 2020-02-15 12:44:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | AMIS | Z | IP | I | 2020-02-14 07:53:32 | 0 | y | 66 | 276 | |||
| IIEES SC | GTMR | Z | IP | I | 2020-02-14 07:53:41 | -0.9 | y | 122 | 320 | |||
| IIEES SC | KLNJ | Z | IP | I | 2020-02-14 07:53:49 | 0 | y | 166 | 113 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-02-14 07:53:59 | 0.2 | y | 233 | 360 | |||
| IIEES SC | NASN | Z | IP | I | 2020-02-14 07:54:06 | 0.1 | y | 300 | 64 | |||
| IIEES SC | ASAO | Z | IP | I | 2020-02-14 07:54:10 | 0.8 | y | 322 | 1 | |||
| IIEES SC | AHRM | Z | IP | I | 2020-02-14 07:54:10 | 0.4 | y | 333 | 157 | |||
| IIEES SC | GHVR | Z | IP | I | 2020-02-14 07:54:12 | 0.9 | y | 344 | 20 | |||
| IIEES SC | YZKH | Z | IP | I | 2020-02-14 07:54:24 | -0.2 | y | 444 | 79 | |||
| IIEES SC | QABG | Z | IP | I | 2020-02-14 07:54:26 | 0.6 | y | 455 | 356 | |||
| IIEES SC | SNGE | Z | IP | I | 2020-02-14 07:54:28 | 2 | y | 455 | 328 | |||
| IIEES SC | DAMV | Z | IP | I | 2020-02-14 07:54:29 | -0.7 | y | 489 | 23 | |||
| IIEES SC | THKV | Z | IP | I | 2020-02-14 07:54:29 | 0 | y | 489 | 10 | |||
| IIEES SC | CHTH | Z | IP | I | 2020-02-14 07:54:29 | -0.6 | y | 489 | 13 | |||
| IIEES SC | GLO | Z | IP | I | 2020-02-14 07:54:50 | 0.7 | y | 656 | 33 | |||
| IIEES SC | KRBR | Z | IP | I | 2020-02-14 07:54:52 | -0.6 | y | 678 | 105 | |||
| IIEES SC | TABS | Z | IP | I | 2020-02-14 07:54:56 | -0.6 | y | 711 | 71 | |||
| IIEES SC | SHRO | Z | IP | I | 2020-02-14 07:55:01 | -0.4 | y | 745 | 49 | |||
| IIEES SC | BNDS | Z | IP | I | 2020-02-14 07:55:02 | -1.6 | y | 756 | 128 | |||
| IIEES SC | BSRN | Z | IP | I | 2020-02-14 07:55:16 | -0.6 | y | 867 | 87 | |||
| IIEES SC | MRVT | Z | IP | I | 2020-02-14 07:55:17 | -0.9 | y | 878 | 40 | |||
| IIEES SC | SHRT | Z | IP | I | 2020-02-14 07:55:34 | 1.1 | y | 1000 | 77 | |||
| IIEES SC | TBJM | Z | IP | I | 2020-02-14 07:55:40 | 1.3 | y | 1045 | 67 | |||
| IIEES SC | GLO | Z | IVmB_BB | 2020-02-14 07:54:55 | y | 1 | 656 | 33 | ||||
| IIEES SC | TABS | Z | IVmB_BB | 2020-02-14 07:54:57 | y | 1 | 711 | 71 | ||||
| IIEES SC | SHRO | Z | IVmB_BB | 2020-02-14 07:55:50 | y | 1 | 745 | 49 | ||||
| IIEES SC | BNDS | Z | IVmB_BB | 2020-02-14 07:55:14 | y | 1 | 756 | 128 | ||||
