Magnitude |
:3.4 |
| Date & Time (UTC) | 2020-03-07 12:23:34.7 |
| Date & Time (Local) | 1398/12/17 15:53:34.7 |

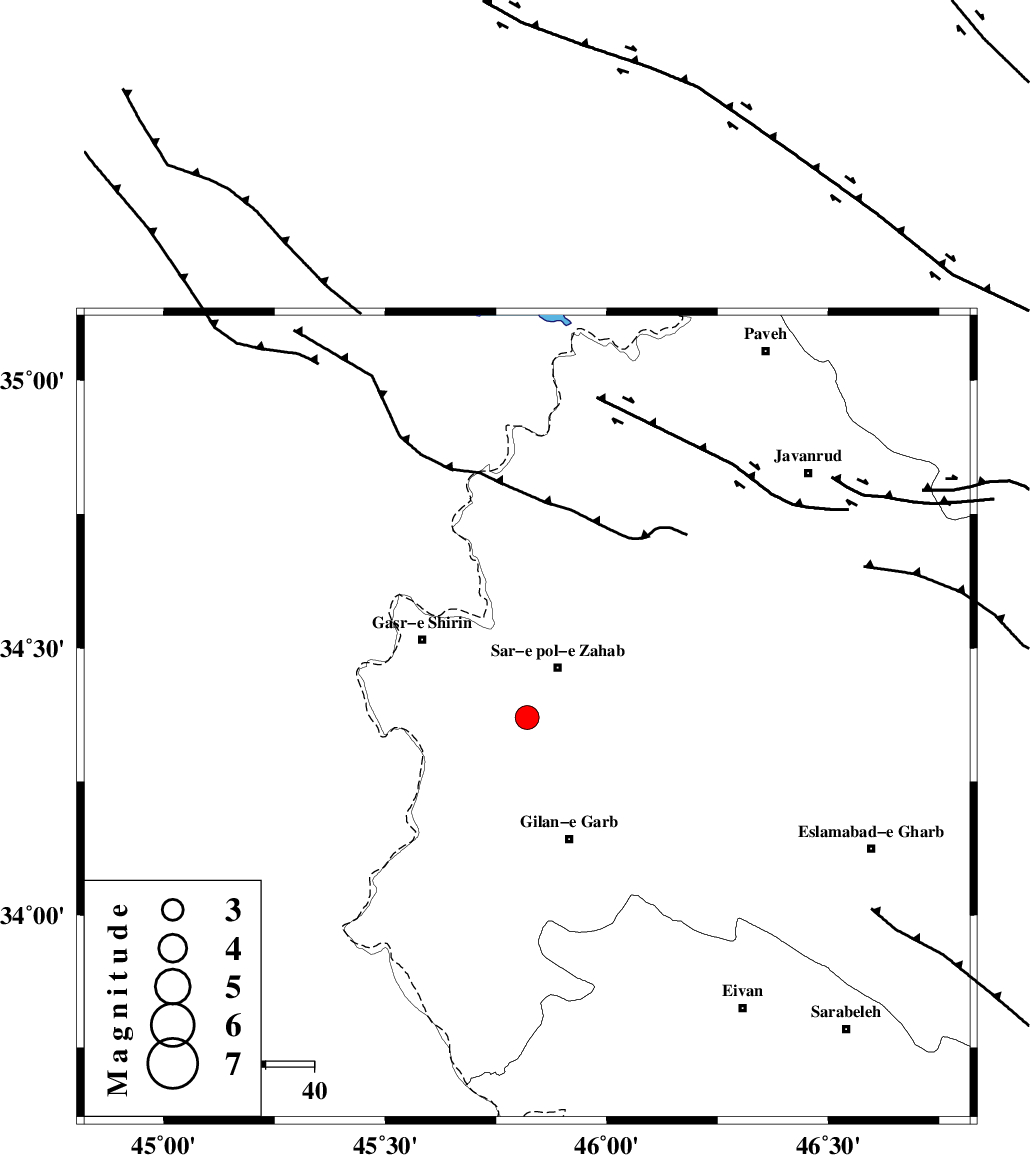

| Location | Lat:34.37 Lon: 45.82 |
| Region | Kermanshah Province, 12 km of Sar-e pol-e zahab |
Nearest Cities |
|
| 7 km North of Chub baghan, Kermanshah Province | |
| 10 km West of Tarkveys, Kermanshah Province | |
| 12 km of Sar-e pol-e zahab, Kermanshah Province | |
| 13 km South of Qareh belagh, Kermanshah Province | |
| 22 km East of Seyyed sohrab, Kermanshah Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 14 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 55 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 57 km | |
| Number of Phases | 9 |
| RMS | 0.3 |
| Number of Stations | 9 |
| Error in Latitude | >4 km |
| Error in Longitude | 0 km |
| Error in Depth | 8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 152337 | IIEES SC | SRSL | Z | 390 | 1 | 2020-03-07 12:24:42 | 2020-03-09 12:34:00 | n |
| 152338 | IIEES SC | MAHB | Z | 220 | 1 | 2020-03-07 12:24:59 | 2020-03-09 12:34:00 | n |
| 152339 | IIEES SC | ZNJK | Z | 3.9 | 1 | 2020-03-07 12:26:13 | 2020-03-09 12:34:00 | n |
| 152340 | IIEES SC | GTMR | Z | 35 | 1 | 2020-03-07 12:25:31 | 2020-03-09 12:34:00 | n |
| 152341 | IIEES SC | ASAO | Z | 29 | 1 | 2020-03-07 12:25:45 | 2020-03-09 12:34:00 | n |
| 152342 | IIEES SC | KHMZ | Z | 20 | 1 | 2020-03-07 12:25:30 | 2020-03-09 12:34:00 | n |
| 152343 | IIEES SC | GHVR | Z | 360 | 1 | 2020-03-07 12:25:20 | 2020-03-09 12:34:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | SRSL | N | IS | I | 2020-03-07 12:24:34 | 0.1 | y | 211 | 350 | |||
| IIEES SC | SRSL | Z | IP | I | 2020-03-07 12:24:08 | -0.4 | y | 211 | 350 | |||
| IIEES SC | MAHB | Z | IP | I | 2020-03-07 12:24:16 | 0.3 | y | 266 | 358 | |||
| IIEES SC | ZNJK | Z | IP | I | 2020-03-07 12:24:28 | 0.2 | y | 366 | 46 | |||
| IIEES SC | GTMR | Z | IP | I | 2020-03-07 12:24:29 | 0.1 | y | 366 | 125 | |||
| IIEES SC | QABG | Z | IP | I | 2020-03-07 12:24:29 | -0.4 | y | 378 | 67 | |||
| IIEES SC | ASAO | Z | IP | I | 2020-03-07 12:24:31 | -0.2 | y | 389 | 87 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-03-07 12:24:31 | -0.3 | y | 389 | 100 | |||
| IIEES SC | GHVR | Z | IP | I | 2020-03-07 12:24:45 | 1 | y | 500 | 89 | |||
