Magnitude |
:3.1 |
| Date & Time (UTC) | 2020-03-13 16:25:50.8 |
| Date & Time (Local) | 1398/12/23 19:55:50.8 |
| Location | Lat:32.43 Lon: 48.83 |
| Region | Khoozestan Province, 26 km -West of Lali |
Nearest Cities |
|
| 8 km of Sardasht, Khoozestan Province | |
| 16 km North East of Mahur berenji, Khoozestan Province | |
| 21 km North of Gatvand, Khoozestan Province | |
| 26 km North of Samaleh, Khoozestan Province | |
| 26 km North West of Lali, Khoozestan Province | |
| Depth | 10 km |
| Agency | |

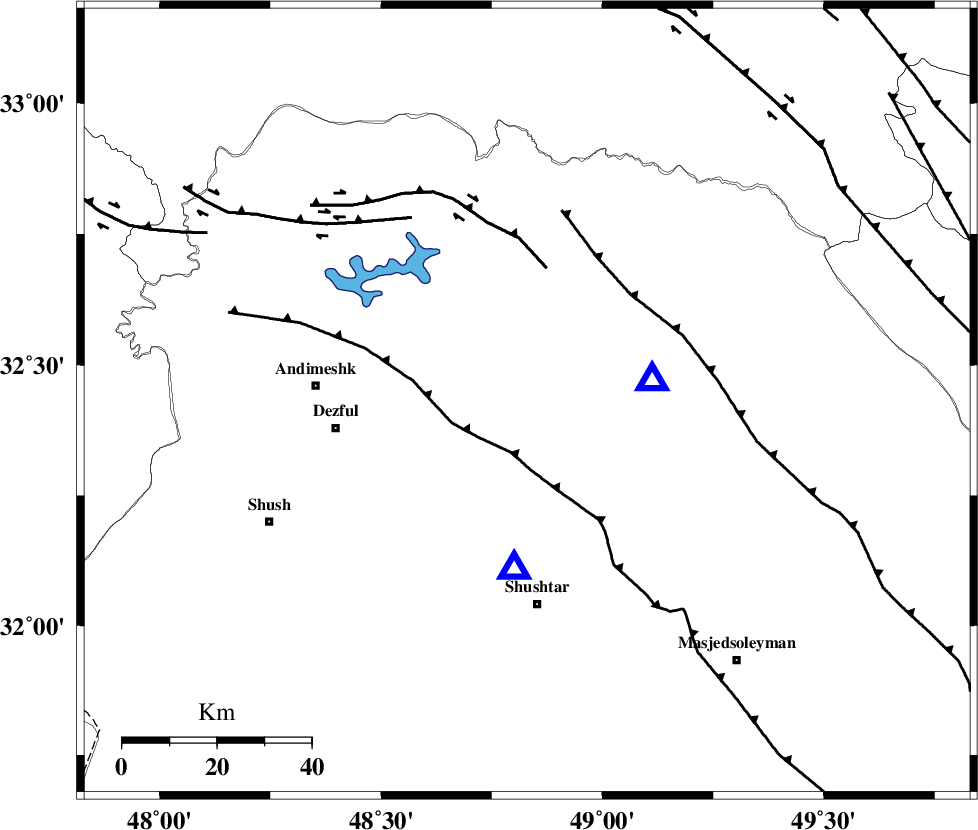

Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 11 km | |
| BALARUD_F_Z2 (Length: 58 km) , Distance to epicenter: 29 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 32 km | |
| Number of Phases | 14 |
| RMS | 0.4 |
| Number of Stations | 13 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 152476 | IIEES SC | GTMR | Z | 2600 | 1 | 2020-03-13 16:26:02 | 2020-03-14 11:46:00 | n |
| 152477 | IIEES SC | AMIS | Z | 450 | 1 | 2020-03-13 16:26:29 | 2020-03-14 11:46:00 | n |
| 152478 | IIEES SC | KHMZ | Z | 210 | 1 | 2020-03-13 16:26:45 | 2020-03-14 11:46:00 | n |
| 152479 | IIEES SC | ASAO | Z | 100 | 1 | 2020-03-13 16:27:11 | 2020-03-14 11:46:00 | n |
| 152480 | IIEES SC | KLNJ | Z | 47 | 1 | 2020-03-13 16:27:29 | 2020-03-14 11:46:00 | n |
| 152481 | IIEES SC | GHVR | Z | 340 | 1 | 2020-03-13 16:27:46 | 2020-03-14 11:46:00 | n |
| 152482 | IIEES SC | SNGE | Z | 23 | 1 | 2020-03-13 16:27:36 | 2020-03-14 11:46:00 | n |
| 152483 | IIEES SC | QABG | Z | 4.1 | 1 | 2020-03-13 16:27:41 | 2020-03-14 11:46:00 | n |
| 152484 | IIEES SC | NASN | Z | 17 | 1 | 2020-03-13 16:27:44 | 2020-03-14 11:46:00 | n |
| 152485 | IIEES SC | CHTH | Z | 8.5 | 1 | 2020-03-13 16:28:10 | 2020-03-14 11:46:00 | n |
| 152486 | IIEES SC | DAMV | Z | 4.8 | 1 | 2020-03-13 16:27:46 | 2020-03-14 11:46:00 | n |
| 152487 | IIEES SC | SRSL | Z | 14 | 1 | 2020-03-13 16:28:03 | 2020-03-14 11:46:00 | n |
| 152488 | IIEES SC | YZKH | Z | 4.8 | 1 | 2020-03-13 16:27:44 | 2020-03-14 11:46:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GTMR | Z | IP | I | 2020-03-13 16:25:55 | -0.2 | y | 22 | 81 | |||
| IIEES SC | AMIS | Z | IP | I | 2020-03-13 16:26:07 | 0.1 | y | 100 | 153 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-03-13 16:26:20 | 0.2 | y | 177 | 36 | |||
| IIEES SC | ASAO | Z | IP | I | 2020-03-13 16:26:31 | 0.1 | y | 255 | 25 | |||
| IIEES SC | KLNJ | Z | IP | I | 2020-03-13 16:26:36 | -0.4 | y | 311 | 121 | |||
| IIEES SC | GHVR | Z | IP | I | 2020-03-13 16:26:40 | 1.4 | y | 322 | 45 | |||
| IIEES SC | SNGE | Z | IP | I | 2020-03-13 16:26:42 | 2.5 | y | 322 | 335 | |||
| IIEES SC | QABG | Z | IP | I | 2020-03-13 16:26:45 | 0.3 | y | 366 | 11 | |||
| IIEES SC | NASN | Z | IP | I | 2020-03-13 16:26:46 | 0.4 | y | 378 | 84 | |||
| IIEES SC | CHTH | Z | IP | I | 2020-03-13 16:26:53 | -0.1 | y | 444 | 29 | |||
| IIEES SC | DAMV | Z | IP | I | 2020-03-13 16:26:55 | -0.3 | y | 455 | 39 | |||
| IIEES SC | AHRM | Z | IP | I | 2020-03-13 16:27:03 | 7.6 | n | 4 | 455 | 149 | ||
| IIEES SC | SRSL | Z | IP | I | 2020-03-13 16:27:03 | -0.1 | y | 522 | 323 | |||
| IIEES SC | YZKH | Z | IP | I | 2020-03-13 16:27:05 | -0.9 | y | 544 | 90 | |||
